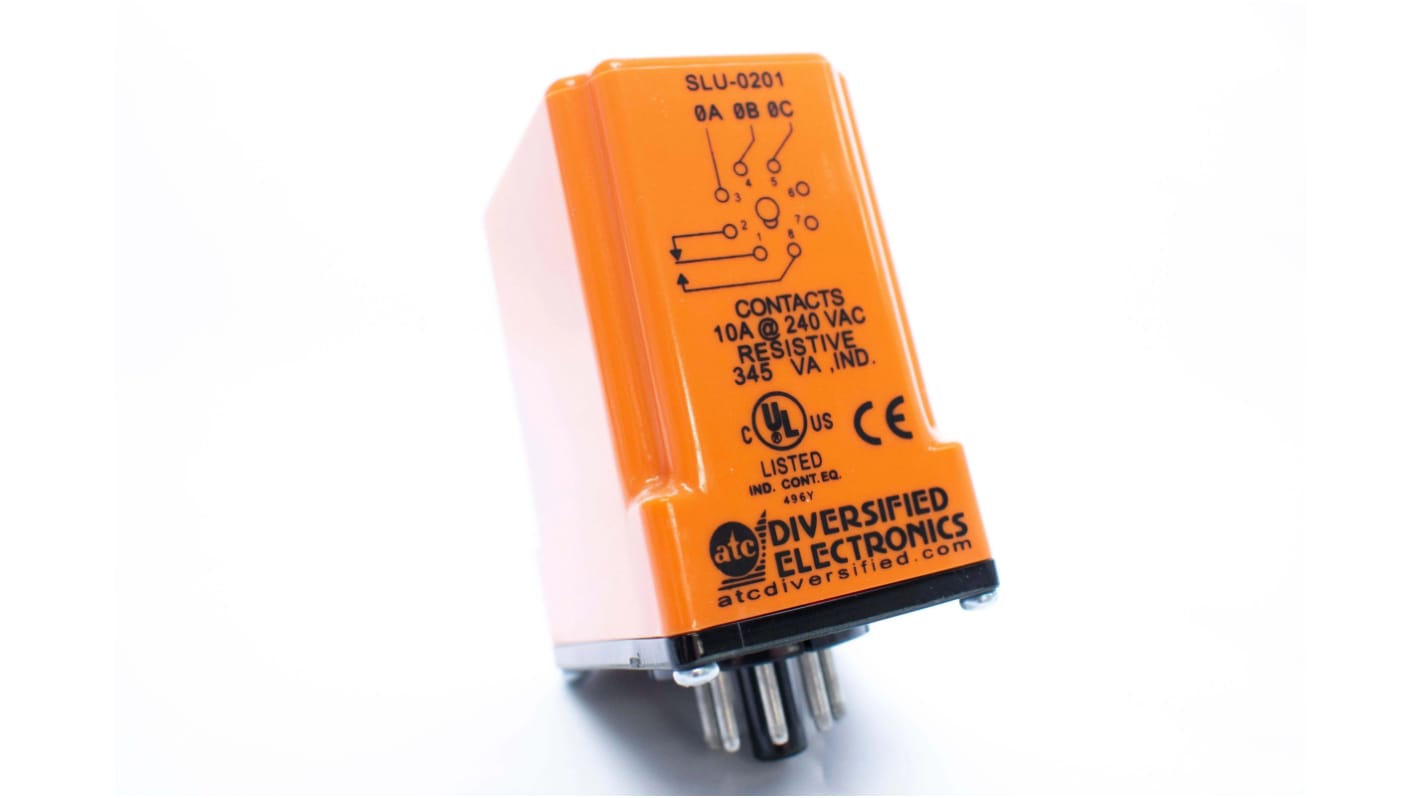

ATC Monitoring Relay, 3 Phase, 200/500 V ac Monitor Range, SPDT, DIN Rail, 550V ac
- RS stock no.:
- 286-820
- Mfr. Part No.:
- SLU0201
- Manufacturer:
- ATC
Subtotal (1 unit)*
R 4 087,56
(exc. VAT)
R 4 700,69
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 2 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 4,087.56 |
*price indicative
- RS stock no.:
- 286-820
- Mfr. Part No.:
- SLU0201
- Manufacturer:
- ATC
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ATC | |
| Product Type | Monitoring Relay | |
| Function | Monitoring | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Switching Voltage | 240V ac | |
| Power Consumption | 90VA | |
| Terminal Type | 8-Pin | |
| Contact Current | 10A | |
| Minimum Operating Temperature | 32°F | |
| Monitoring Voltage Range | 200/500 V ac | |
| Supply AC Voltage | 550V ac | |
| Maximum Operating Temperature | 131°F | |
| Height | 3in | |
| Standards/Approvals | UL Listed under UL File Number E55826 | |
| Width | 2.38in | |
| Series | SLU-0201 | |
| Select all | ||
|---|---|---|
Brand ATC | ||
Product Type Monitoring Relay | ||
Function Monitoring | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Switching Voltage 240V ac | ||
Power Consumption 90VA | ||
Terminal Type 8-Pin | ||
Contact Current 10A | ||
Minimum Operating Temperature 32°F | ||
Monitoring Voltage Range 200/500 V ac | ||
Supply AC Voltage 550V ac | ||
Maximum Operating Temperature 131°F | ||
Height 3in | ||
Standards/Approvals UL Listed under UL File Number E55826 | ||
Width 2.38in | ||
Series SLU-0201 | ||
The ATC Phase Monitor Relays provide cost-effective protection against voltage faults in 3 phase systems (Wye or Delta). Easily adjustable for voltage, imbalance percentage, and time delay, they protect against unbalanced voltages or single phasing, ensuring reliable operation.
Power Up 2.5 SEC Minimum
Fault Delay 1 to 25 SEC Adjustable
Severe Fault 1 SEC Phase Loss Unbalance or Phase Reversal
