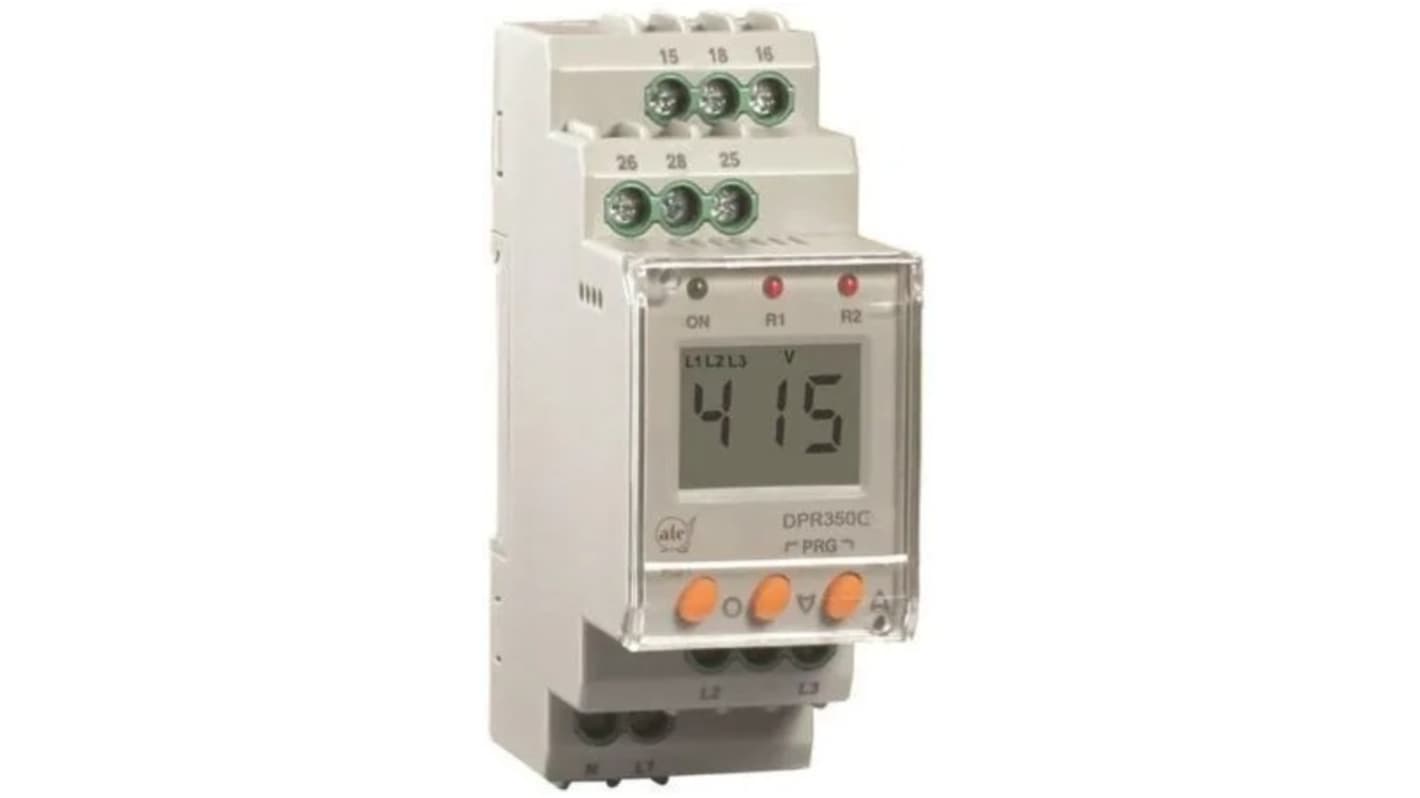

ATC Monitoring Relay, 2 Phase, 280 to 600 VAC Monitor Range, SPDT, DIN Rail, 160/300 V AC, 280/520 V ac

View all Monitoring Relays

Subtotal (1 unit)*

R 4 256,90

(exc. VAT)

R 4 895,44

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 4,256.90

*price indicative

RS stock no.:
286-817
Mfr. Part No.:
DPR350C
Manufacturer:
ATC
Find similar products by selecting one or more attributes.
Select all

Brand

ATC

Product Type

Monitoring Relay

Electrical Phase

2

Contact Configuration

SPDT

Mount Type

DIN Rail

Power Consumption

30VA

Switching Voltage

250 V

IP Rating

IP20, IP30, IP50

Supply AC Voltage

160/300 V AC, 280/520 V ac

Contact Current

5A

Minimum Operating Temperature

0°C

Monitoring Voltage Range

280 to 600 VAC

Maximum Operating Temperature

50°C

Height

90mm

Length

70.5mm

Width

35 mm

Series

DPR-350C

Standards/Approvals

IEC 61326-1, IEC 61000-4-5, IEC 61000-4-2 Level 3, IEC 61000-4-3 Level 3, IEC 61000-4-6 LEVEL 2

COO (Country of Origin):
IN
The ATC Voltage Phase Monitor monitors under voltage, over voltage, under frequency, over frequency, asymmetry, phase failure, and phase sequence in a 3 phase system. It features RMS measurement, power ON delay, trip time delay, and delay on release. LED indicators show Relay ON and Power ON status. Additionally, it offers adjustable switching hysteresis for flexible operation.

Two separate alarm relays

Din rail mount
