Schneider Electric Monitoring Relay, 3 Phase, SPDT, DIN Rail, 2A to 20A, 240 V dc, 240V ac

View all Monitoring Relays

Subtotal (1 unit)*

R 2 881,04

(exc. VAT)

R 3 313,20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
  • Plus 3 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 2,881.04

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:
146-092
Mfr. Part No.:
RM17JC00MW
Manufacturer:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Product Type

Monitoring Relay

Electrical Phase

3

Contact Configuration

SPDT

Mount Type

DIN Rail

Minimum Current Sensed

2A

Switching Voltage

250V ac/dc

Power Consumption

3VA

Maximum Current Sensed

20A

Current Sensitivity

Overcurrent

Terminal Type

Screw

IP Rating

IP20, IP30

Time Delay

0.5 s

Supply DC Voltage

240 V dc

Minimum Operating Temperature

-20°C

Relay Contact Current

10mA

Supply AC Voltage

240V ac

Maximum Operating Temperature

50°C

Standards/Approvals

CSA, EN/IEC 60255-6

Series

Harmony Control

Length

97mm

Height

90mm

Width

17.5mm

Better World Product

Yes

COO (Country of Origin):
ID

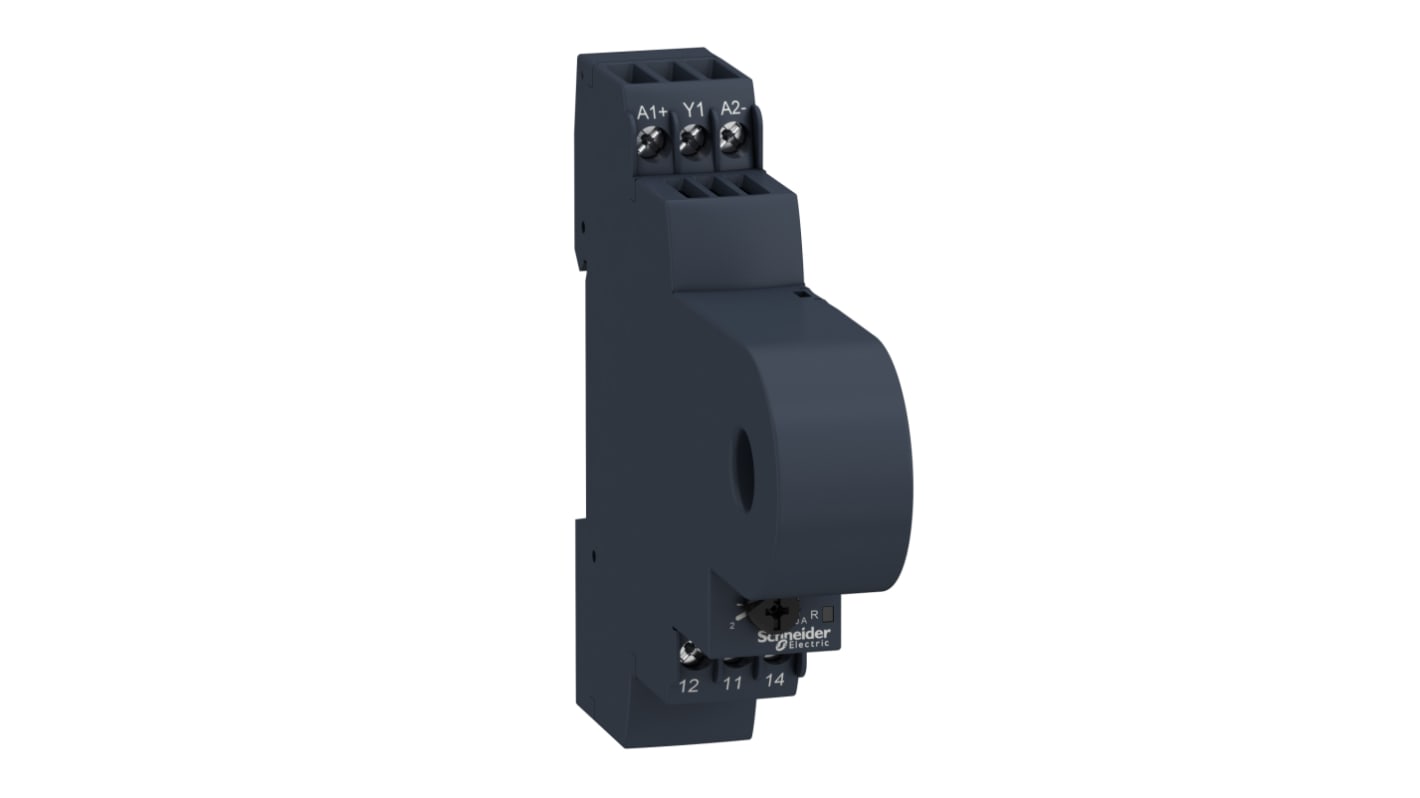

Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Current Monitoring Application - RM17JC00MW


This monitoring relay serves as a current sensing relay for effective overcurrent protection. It facilitates performance monitoring of current levels, enabling interventions to avert equipment failure and enhance operational safety.

Features & Benefits


• SPDT contact configuration offers flexible installation options

• Minimum current sensing capability of 2A ensures accuracy

• Maximum current sensing capacity of 20A meets diverse needs

• 0.5s time delay improves system robustness during faults

• Screw terminal type enables secure and straightforward connections

• Operates within a temperature range of -20°C to +50°C

Applications


• Continuous monitoring of electrical systems

• Suitable for industrial environments needing current regulation

• Applicable in automation and control

• Protects machinery from overcurrent surges

What is the installation process for this relay?


The relay is designed for easy installation onto a DIN rail, requiring only access to the appropriate voltage supply.

How does this device help prevent equipment failure?


By monitoring current levels in real-time, it triggers alerts or actions when overcurrent conditions occur, thus protecting connected equipment.

Is it compatible with different operating voltages?


Yes, it accepts a broad range of operating voltages from 20.4V to 264V AC/DC, providing versatility for various applications.

What maintenance is required to ensure optimal performance?


Regular checks of connections and functionality are recommended to maintain performance.
