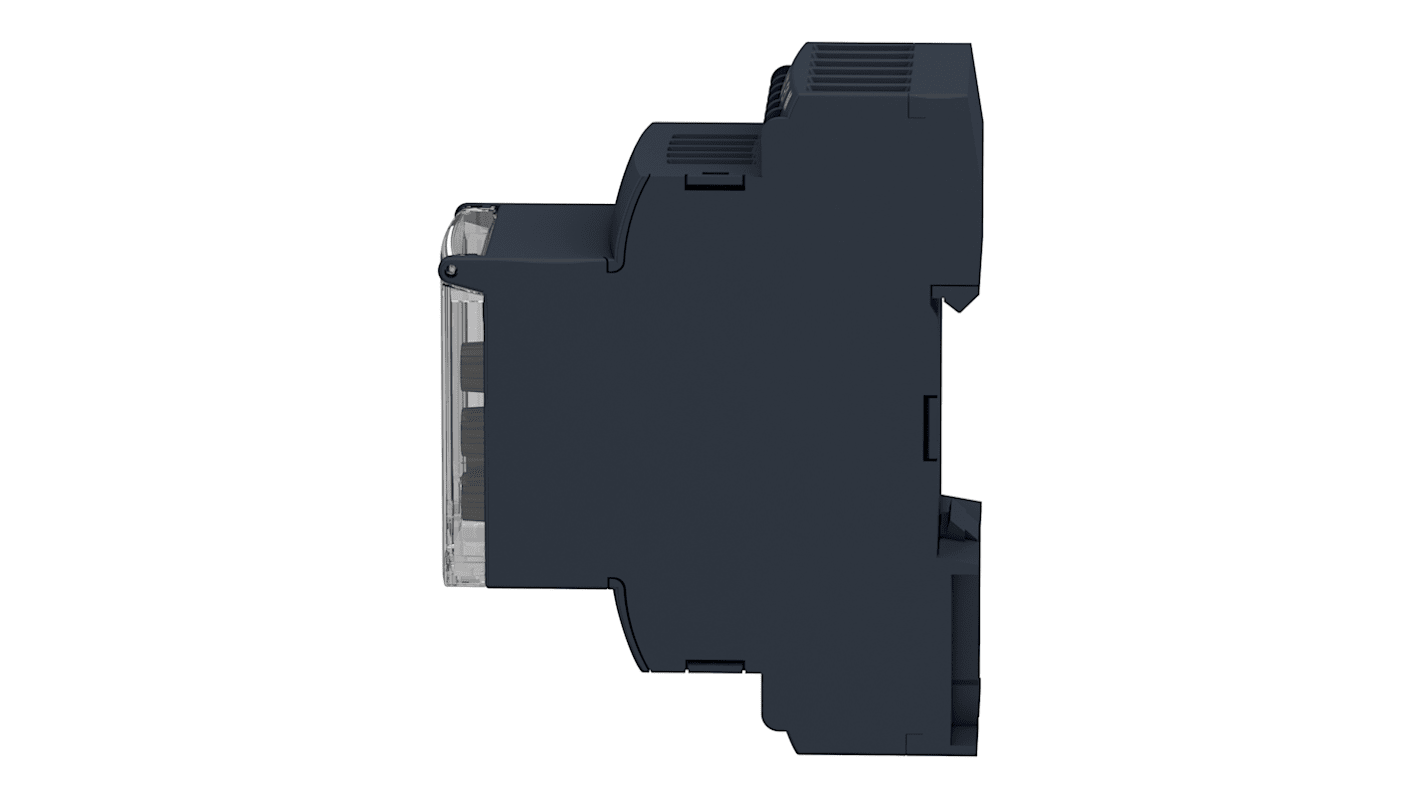

Schneider Electric Monitoring Relay, 1 Phase, DPDT, DIN Rail, 2mA to 500mA, 240 V dc, 240V ac

RS stock no.:: 146-200
Mfr. Part No.:: RM35JA31MW
Manufacturer:: Schneider Electric

Schneider Electric Monitoring Relay, 1 Phase, DPDT, DIN Rail, 2mA to 500mA, 240 V dc, 240V ac

Subtotal (1 unit)*

R 3 013,01

(exc. VAT)

R 3 464,96

(inc. VAT)

FREE delivery for orders over R 1,500.00

Stocked by manufacturer

Ready to ship from 08 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 3,013.01

*price indicative

RS stock no.:: 146-200
Mfr. Part No.:: RM35JA31MW
Manufacturer:: Schneider Electric

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Monitoring Relay
	Electrical Phase	1
	Contact Configuration	DPDT
	Mount Type	DIN Rail
	Minimum Current Sensed	2mA
	Switching Voltage	250V ac/dc
	Maximum Current Sensed	500mA
	Power Consumption	3.5VA
	Current Sensitivity	Undercurrent, Overcurrent
	Terminal Type	Screw
	Time Delay	0.3 to 30 s
	IP Rating	IP20, IP30
	Relay Contact Current	5A
	Supply DC Voltage	240 V dc
	Supply AC Voltage	240V ac
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Length	72mm
	Height	90mm
	Standards/Approvals	GOST, UL, GL, C-Tick, CSA, EN/IEC 60255-6
	Width	35mm
	Series	Harmony Control

	Select all
	Brand Schneider Electric
	Product Type Monitoring Relay
	Electrical Phase 1
	Contact Configuration DPDT
	Mount Type DIN Rail
	Minimum Current Sensed 2mA
	Switching Voltage 250V ac/dc
	Maximum Current Sensed 500mA
	Power Consumption 3.5VA
	Current Sensitivity Undercurrent, Overcurrent
	Terminal Type Screw
	Time Delay 0.3 to 30 s
	IP Rating IP20, IP30
	Relay Contact Current 5A
	Supply DC Voltage 240 V dc
	Supply AC Voltage 240V ac
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Length 72mm
	Height 90mm
	Standards/Approvals GOST, UL, GL, C-Tick, CSA, EN/IEC 60255-6
	Width 35mm
	Series Harmony Control

Schneider Electric Harmony Control Series Monitoring Relay, DPDT Contact Configuration, Current Monitoring Application - RM35JA31MW

This monitoring relay is intended for accurate current monitoring in automation, electronics, and industrial applications. It is essential for maintaining operational efficiency and providing overcurrent and undercurrent protection. Suitable for DIN rail mounting, it integrates easily into existing systems, enhancing electrical monitoring solutions.

Features & Benefits

• Adjustable time delay ranging from 0.3 to 30 seconds

• Operates within a current range of 2 to 500mA

• Dual-pole dual-throw (DPDT) contact configuration for application versatility

• Effective overcurrent and undercurrent detection

• Rated insulation voltage of 250V for improved safety

• Mechanical durability rated for 30 million cycles

Applications

• Precise current control in automated systems

• Monitoring critical machinery operations

• Integration into control panels and electrical installations

What is the maximum load current compatible with the device?

The maximum load current supported is 5A AC.

Does it require specific wiring for installation?

Screw terminals accommodate various wire sizes for installation flexibility.

Can the relay be used in outdoor environments?

It is recommended for indoor use as it has an IP20 rating.

Is there a specific power supply voltage required?

The device operates between 20.4V and 264V AC/DC.

How does the adjustable time delay enhance functionality?

The adjustable delay allows for customised response times to suit specific applications.
