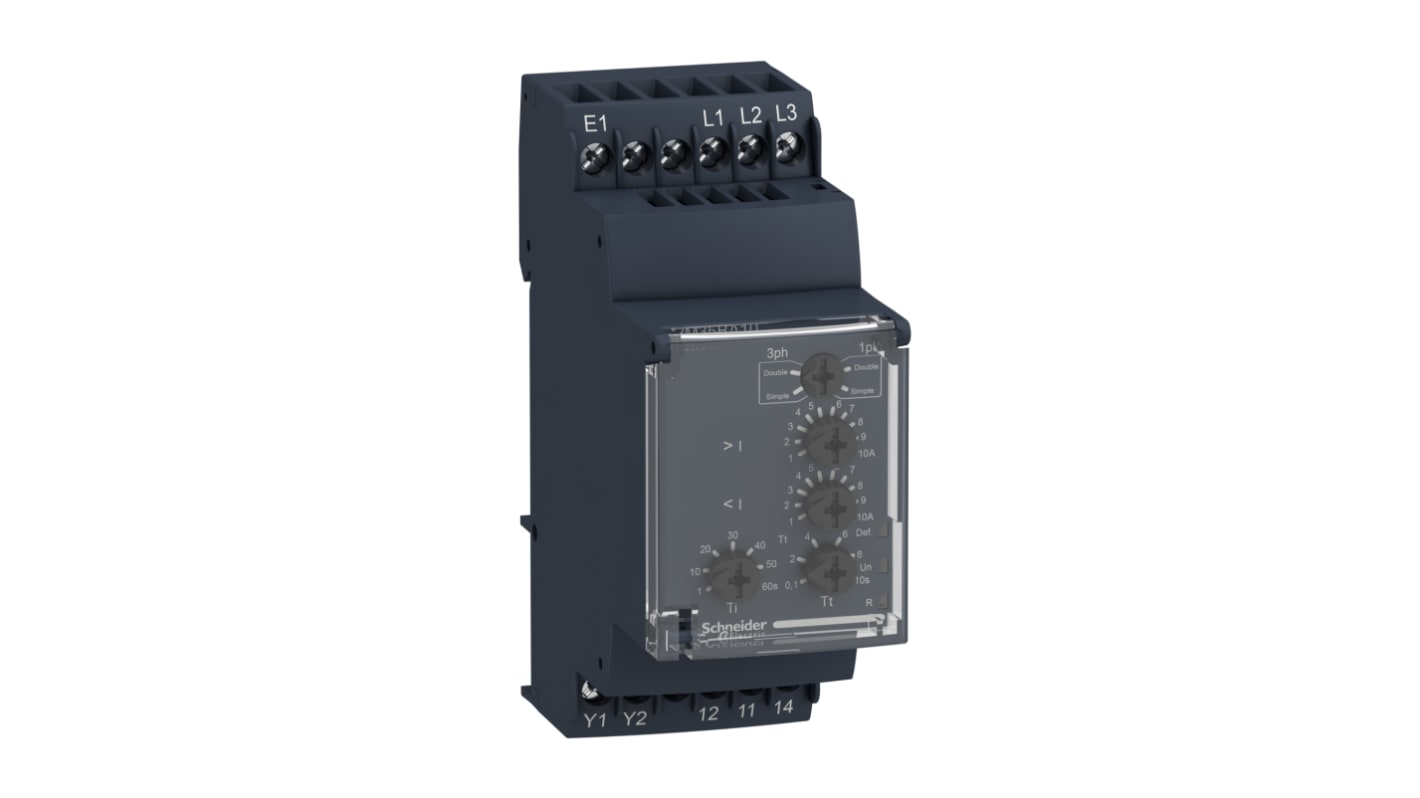

Schneider Electric Current, Phase Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail

RS stock no.:: 146-086
Mfr. Part No.:: RM35BA10
Manufacturer:: Schneider Electric

Schneider Electric Current, Phase Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail

Bulk discount available

Price Each**

R 4 891,73

(exc. VAT)

R 5 625,49

(inc. VAT)

On back order for despatch 2025/01/11*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Units	Per unit
1 - 4	R 4 891,73
5 - 9	R 4 769,44
10 +	R 4 626,35

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:: 146-086
Mfr. Part No.:: RM35BA10
Manufacturer:: Schneider Electric

RM35 BA control relay

Schneider Electric RM35 BA10 measurement and control relay monitors single phase and 3 phase pumps. It controls the sequence of phases L1, L2 and L3, the loss of one or more phases, and under and overcurrent.

Checks its own power supply
Clear hinged front cover
LED display of output status
DIN Rail mounting

Standards

NF EN 60255-6 and IEC 60255-6

Approvals

UL, CSA, GL, C-Tick, GOST

Schneider Electric Harmony Control Series Monitoring Relay, SPDT Contact Configuration, Current/Phase Monitoring Application - RM35BA10

This monitoring relay is intended for effective current and phase monitoring in electrical systems. It accommodates both single-phase and three-phase systems, ensuring thorough protection and performance monitoring.

Features & Benefits

• Provides overcurrent and undercurrent protection for improved safety
• Adjustable time delay for tailored fault response
• Phase failure and sequence detection to maintain operational integrity
• Compact design for DIN rail mounting simplifies installation and conserves space
• Secure screw terminal connections for reliable connections
• LED indicators for straightforward operational status monitoring

Applications

• Controls pumps in industrial settings
• Used for phase monitoring in electrical installations
• Supports automation in electrical machinery operations
• Incorporated into safety systems that require current monitoring
• Adaptable to various electrical phase configurations

What are the installation requirements?

It can be mounted on a standard DIN rail, facilitating easy integration into existing systems.

How does it protect electrical equipment?

It monitors current fluctuations, helping detect overcurrent and undercurrent scenarios that can cause equipment damage.

Can it be used for different voltage levels?

Yes, it accommodates voltage inputs from 208 to 480 VAC, making it suitable for diverse applications.

What ongoing maintenance is required?

Regular checks of LED indicators and terminal connections are advisable to ensure optimal performance.

Is it suitable for use in harsh environments?

Yes, it is designed to operate effectively within specified temperature ranges, maintaining functionality across industrial conditions.

Attribute	Value
Monitoring Application	Current, Phase
Electrical Phase	1, 3
Contact Configuration	SPDT
Mounting Type	DIN Rail
Minimum Current Sensed	1A
Maximum Current Sensed	10A
Current Sensitivity	Overcurrent, Undercurrent
Phase Sensitivity	Phase Failure, Phase Sequence
Time Delay	0.1 → 10s
Series	Harmony Control
Better World Product	Yes
Better World Verification	Green Premium
Terminal Type	Screw
Height	90mm
Current Range	1 → 10A
Standards Met	CE, CSA, UL
Length	72mm
Operating Temperature Range	+50°C
Width	35mm
Dimensions	72 x 35 x 90mm
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+50°C
Special Features	IP20 Terminals
