Phoenix Contact PLC-INTERFACE Series Relay Module, DIN Rail, 230V ac/dc Coil, DPDT, 5mA
- RS stock no.:
- 270-9485
- Mfr. Part No.:
- 2910523
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
R 5 936,73
(exc. VAT)
R 6 827,24
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 29 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | R 593.673 | R 5,936.73 |
*price indicative
- RS stock no.:
- 270-9485
- Mfr. Part No.:
- 2910523
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Relay Module | |
| Coil Voltage | 230V ac/dc | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | PLC-INTERFACE | |
| Terminal Type | Push-in | |
| Switching Current | 10mA | |
| Coil Current | 5mA | |
| Switching AC Voltage | 250V ac | |
| Coil Type | Monostable | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Silver Nickel Alloy | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | EAC, EN 50178, EN 60068-2-60, ISA-S71.04. G3 Harsh Group, UL 508, DNV GL | |
| Width | 14mm | |
| Length | 104mm | |
| Height | 80mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Relay Module | ||
Coil Voltage 230V ac/dc | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series PLC-INTERFACE | ||
Terminal Type Push-in | ||
Switching Current 10mA | ||
Coil Current 5mA | ||
Switching AC Voltage 250V ac | ||
Coil Type Monostable | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -20°C | ||
Contact Material Silver Nickel Alloy | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals EAC, EN 50178, EN 60068-2-60, ISA-S71.04. G3 Harsh Group, UL 508, DNV GL | ||
Width 14mm | ||
Length 104mm | ||
Height 80mm | ||
Exempt
- COO (Country of Origin):
- DE

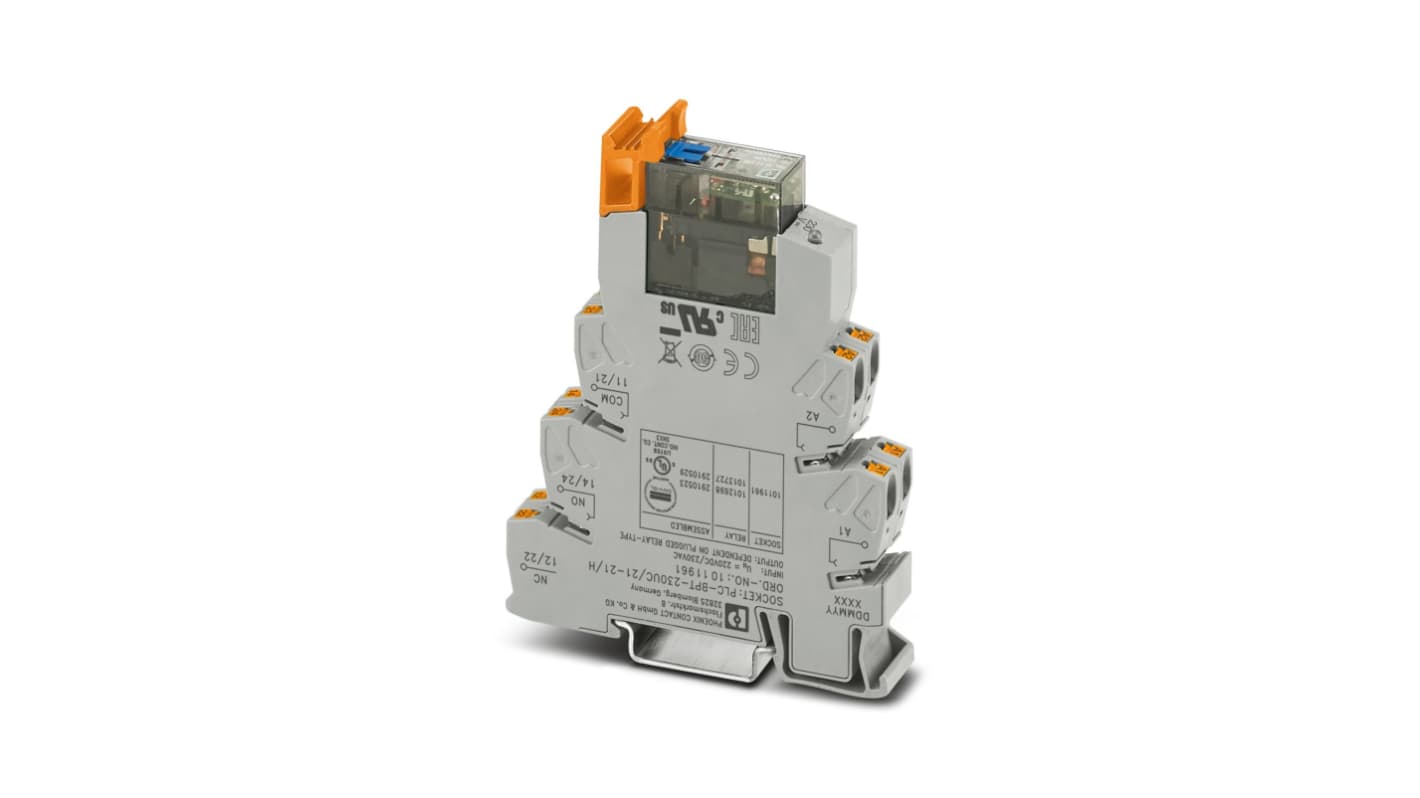

The Phoenix Contact preassembled relay module with screw connection consist of relay base, power contact relay, plug in display or interference suppression module and retaining bracket. It has easy wiring due to push in connection technology.
Monostable drive and function
