Phoenix Contact PLC-INTERFACE Series Relay Module, DIN Rail, 110V ac/dc, 120 V ac/dc Coil, DPDT, 5mA
- RS stock no.:
- 270-9484
- Mfr. Part No.:
- 2910522
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
R 5 890,63
(exc. VAT)
R 6 774,22
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | R 589.063 | R 5,890.63 |
*price indicative
- RS stock no.:
- 270-9484
- Mfr. Part No.:
- 2910522
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Relay Module | |
| Coil Voltage | 110, 120V ac/dc | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | PLC-INTERFACE | |
| Terminal Type | Push-in | |
| Switching Current | 10mA | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -20°C | |
| Coil Current | 5mA | |
| Coil Type | Monostable | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 55°C | |
| Contact Material | Silver Nickel Alloy | |
| Length | 104mm | |
| Height | 80mm | |
| Standards/Approvals | EN 60068-2-60, UL 508, EN 50178 | |
| Width | 14mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Relay Module | ||
Coil Voltage 110, 120V ac/dc | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series PLC-INTERFACE | ||
Terminal Type Push-in | ||
Switching Current 10mA | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -20°C | ||
Coil Current 5mA | ||
Coil Type Monostable | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 55°C | ||
Contact Material Silver Nickel Alloy | ||
Length 104mm | ||
Height 80mm | ||
Standards/Approvals EN 60068-2-60, UL 508, EN 50178 | ||
Width 14mm | ||
Exempt
- COO (Country of Origin):
- DE

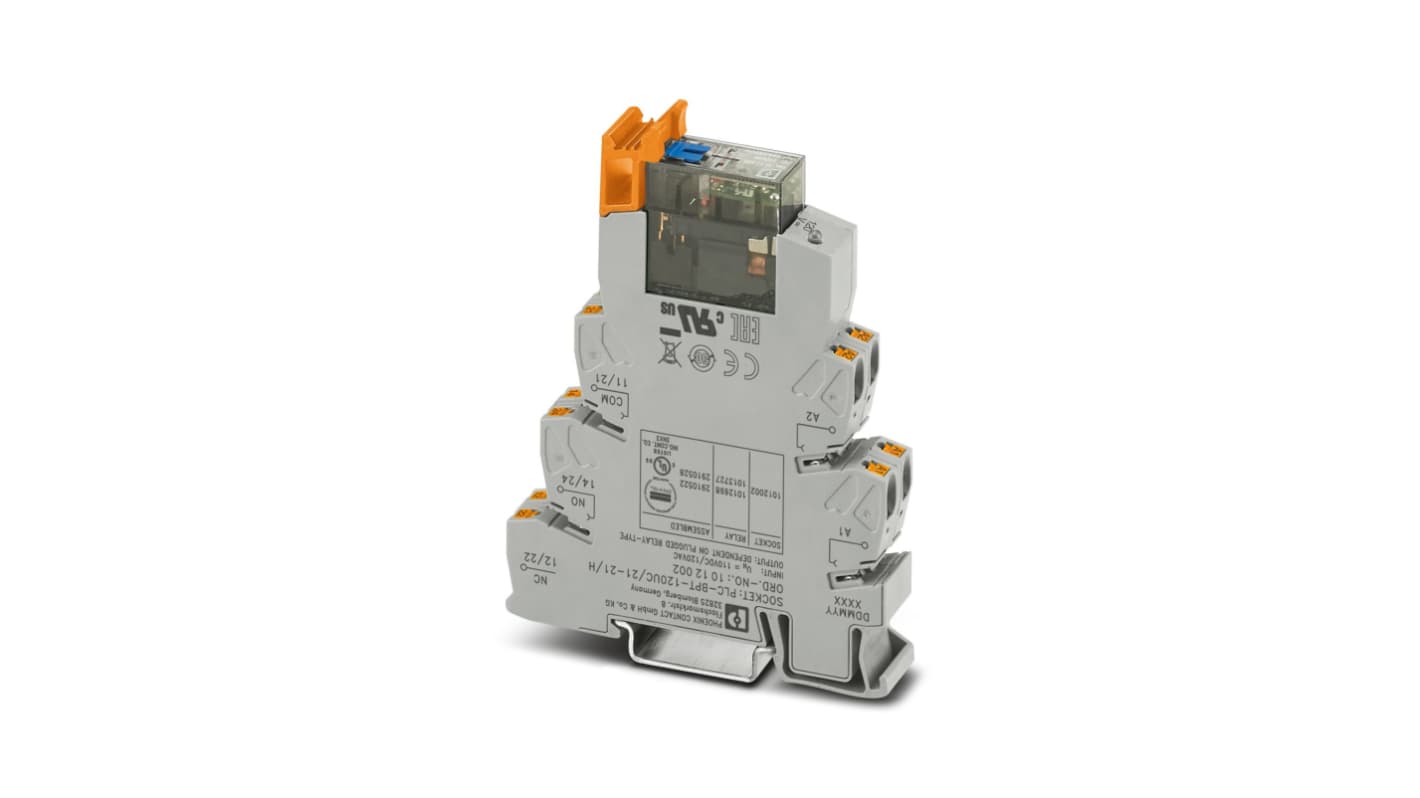

The Phoenix Contact preassembled relay module with screw connection consist of relay base, power contact relay, plug in display or interference suppression module and retaining bracket. It has easy wiring due to push in connection technology.
Monostable drive and function
