RS PRO Solid State Relay, 5 A Load, DIN Rail Mount, 30 V Load, 30V Control

View all Solid State Relays

Subtotal (1 pack of 5 units)*

R 2 903,51

(exc. VAT)

R 3 339,035

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 420 unit(s) ready to ship from another location
  • Plus 125 unit(s) shipping from 11 June 2026
  • Plus 250 unit(s) shipping from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +R 580.702R 2,903.51

*price indicative

RS stock no.:
888-6868
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Load Current

5A

Product Type

Solid State Relay

Mount Type

DIN Rail

Maximum Load Voltage

30V

Minimum Load Voltage

10V

Minimum Control Voltage

11V

Maximum Control Voltage

30V

Terminal Type

Screw

Contact Configuration

SPST

IP Rating

IP20

Minimum Operating Temperature

-25°C

Switching Function

DC Switching

Maximum Operating Temperature

60°C

Length

6.2mm

Standards/Approvals

CSA, RoHS, UL

Width

73 mm

Height

93mm

Off State Leakage Current

1mA

Output Type

MOSFET

COO (Country of Origin):
DE

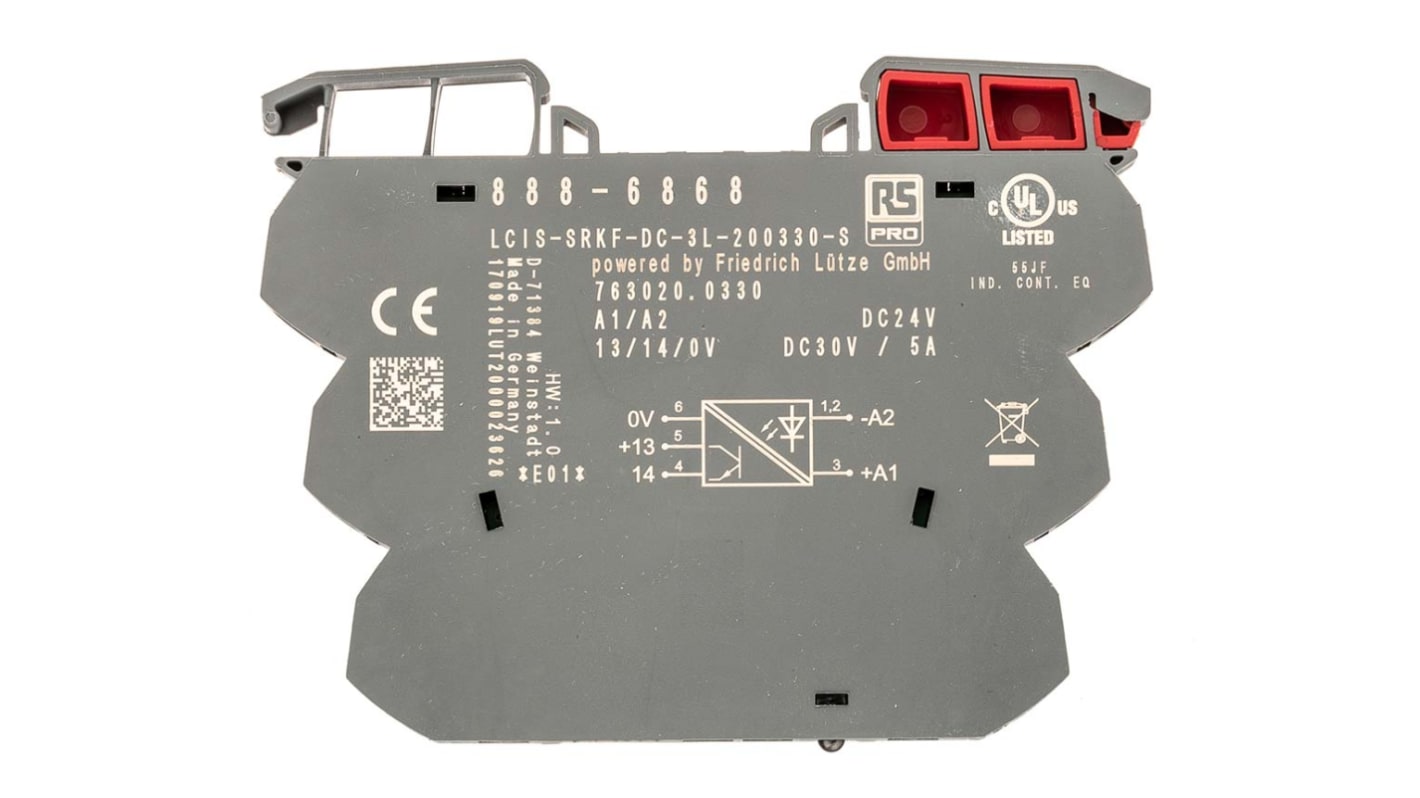

RS PRO 5 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 30 V Maximum Load


Switch electrical circuits on and off rapidly with this RS PRO solid state relay. With no moving parts to wear out, unlike conventional electro-mechanical types, this relay will have no contact bounce issues.

It works in temperatures ranging from -25°C to +60°C. The unit's unusually accurate processing is particularly useful for coupling signals and switching loads of up to 250 V/16 A. With a width of only 6.2 mm, it's also a good choice for situations where space is at a premium.

The LED indicator light makes it easy to see when the relay is functional. It works with load currents of between 1 mA and 5 A. A version with spring-loaded connections is available for situations where vibration may be an issue.

The RS PRO range is thoroughly tested for safety and reliability. Relays like this are used extensively in industrial and commercial settings, including in factories and workshops.

Features and Benefits


• Solid-state relay

• DIN (Deutsche Institut für Normung or the German Institute of Standardisation) rail mounted

• MOSFET output

• Contact configuration of SPNO (single pole normally open)

• Screw terminals

• Green LED indicator

• Includes a varistor for circuit protection

• Switching type of DC

• Dimensions of (H) 93 mm x (W) 6.2 mm x (D) 73 mm

• Operates from -25°C to +60°C

• Load voltage range of 10 V to 30 V

• Control voltage range of 11 V to 30 V

• Off-state leakage current of 1 μA

• Minimum load current of 1 mA

• Maximum load current of 5 A

• RoHS compliant for minimal hazardous materials

• CSA, GL, UL compliant for safety and quality

• Handled and packed in conditions that meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards
