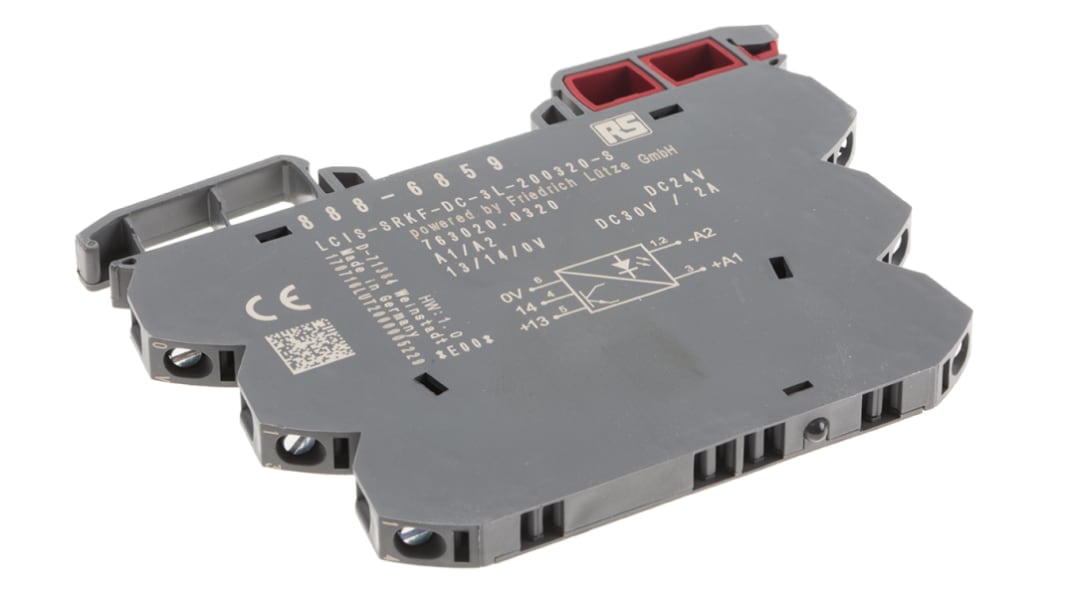

RS PRO Solid State Relay, 2 A Load, DIN Rail Mount, 30 V Load, 30 V Control
- RS stock no.:
- 888-6859
- Distrelec Article No.:
- 304-19-916
- Manufacturer:
- RS PRO
1 / 3
Subtotal (1 pack of 5 units)**
R 2 943 03
(exc. VAT)
R 3 384 49
(inc. VAT)
65 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Real time stock check
Not Available for premium delivery
Units | Per unit | Per Pack** |
|---|---|---|
| 5 + | R 588,606 | R 2 943,03 |
**price indicative
- RS stock no.:
- 888-6859
- Distrelec Article No.:
- 304-19-916
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 2 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 30 V | |
| Minimum Load Voltage | 10 V | |
| Minimum Control Voltage | 11 V | |
| Maximum Control Voltage | 30 V | |
| Switching Type | DC | |
| Control Voltage Range | 11 → 30 V | |
| Minimum Load Current | 1 mA | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | MOSFET | |
| Load Voltage Range | 10 → 30V | |
| Dimensions | 6.2 x 73 x 93mm | |
| Special Features | Green LED Indicator, Suppressor Diode | |
| Depth | 73mm | |
| Off State Leakage Current | <100 μA | |
| Height | 93mm | |
| Length | 6.2mm | |
| Operating Temperature Range | -25 → +60°C | |
| Standards Met | CSA, GL, UL | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 2 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 30 V | ||
Minimum Load Voltage 10 V | ||
Minimum Control Voltage 11 V | ||
Maximum Control Voltage 30 V | ||
Switching Type DC | ||
Control Voltage Range 11 → 30 V | ||
Minimum Load Current 1 mA | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device MOSFET | ||
Load Voltage Range 10 → 30V | ||
Dimensions 6.2 x 73 x 93mm | ||
Special Features Green LED Indicator, Suppressor Diode | ||
Depth 73mm | ||
Off State Leakage Current <100 μA | ||
Height 93mm | ||
Length 6.2mm | ||
Operating Temperature Range -25 → +60°C | ||
Standards Met CSA, GL, UL | ||
