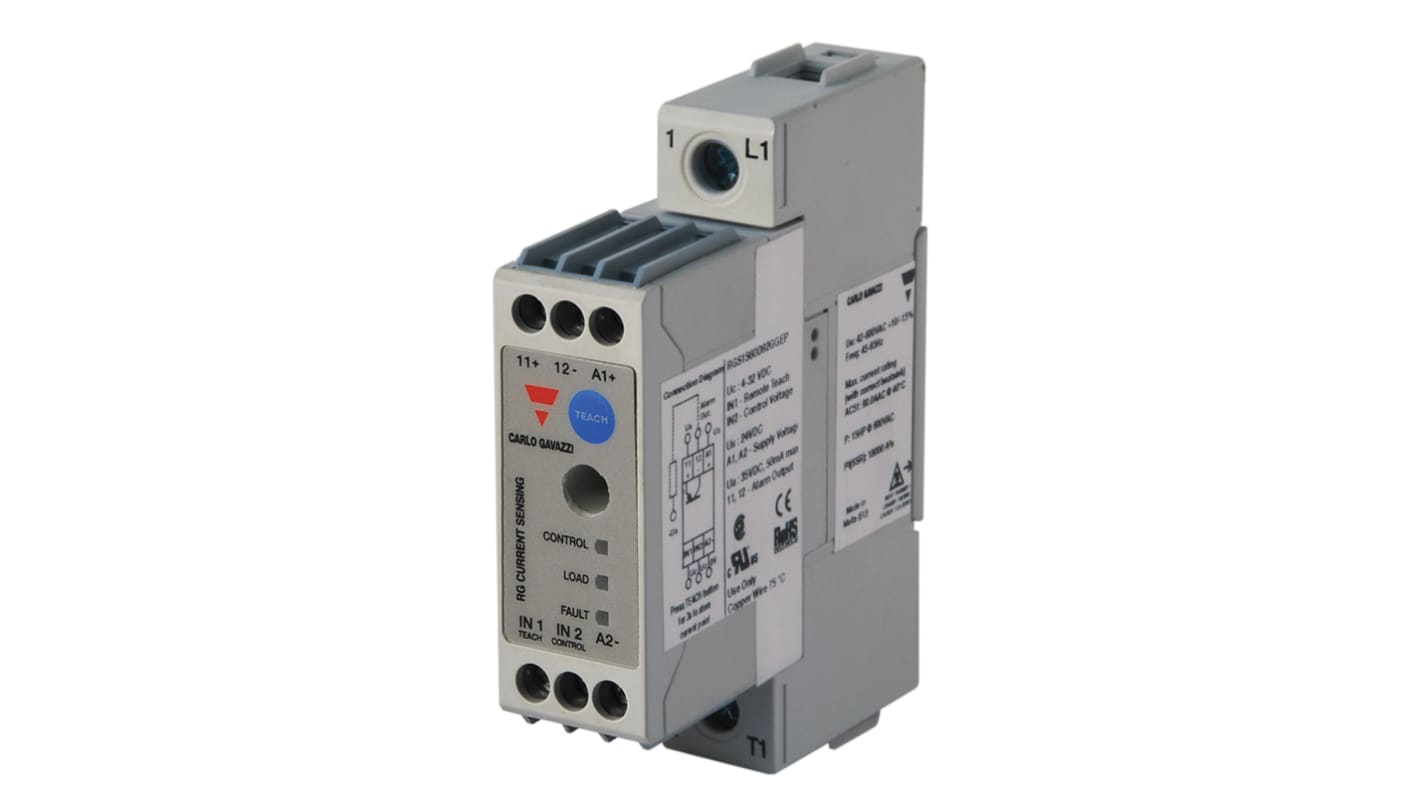

Carlo Gavazzi RGS1S Series Solid State Relay, 90 A Load, DIN Rail Mount, 600 V ac Load, 32 V dc Control
- RS stock no.:
- 188-5268
- Mfr. Part No.:
- RGS1S60D92GGEP
- Manufacturer:
- Carlo Gavazzi
Subtotal (1 unit)*
R 5 207,89
(exc. VAT)
R 5 989,07
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 5,207.89 |
*price indicative
- RS stock no.:
- 188-5268
- Mfr. Part No.:
- RGS1S60D92GGEP
- Manufacturer:
- Carlo Gavazzi
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 90 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 600 V ac | |
| Minimum Load Voltage | 42 V ac | |
| Minimum Control Voltage | 4 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 0.83 A | |
| Number of Poles | 1 | |
| Terminal Type | Box Clamp | |
| Output Device | PNP Open Collector | |
| Relay Type | Solid State Relay | |
| Load Voltage Range | 42 → 600V ac | |
| Maximum Turn On Time | 1 s | |
| Series | RGS1S | |
| Dimensions | 22.5 x 78 x 90mm | |
| Length | 22.5mm | |
| Off State Leakage Current | 3 mA | |
| Depth | 78mm | |
| Maximum Operating Temperature | +70°C | |
| Height | 90mm | |
| Special Features | Integrated Current Monitoring | |
| Operating Temperature Range | -25 → +70°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 90 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V ac | ||
Minimum Load Voltage 42 V ac | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 0.83 A | ||
Number of Poles 1 | ||
Terminal Type Box Clamp | ||
Output Device PNP Open Collector | ||
Relay Type Solid State Relay | ||
Load Voltage Range 42 → 600V ac | ||
Maximum Turn On Time 1 s | ||
Series RGS1S | ||
Dimensions 22.5 x 78 x 90mm | ||
Length 22.5mm | ||
Off State Leakage Current 3 mA | ||
Depth 78mm | ||
Maximum Operating Temperature +70°C | ||
Height 90mm | ||
Special Features Integrated Current Monitoring | ||
Operating Temperature Range -25 → +70°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- MT
Product width ranging from 22.5mm to 35mm
Partial load failure detection
Zero cross switching
Ratings up to 600VACrms & 90AACrms
Up to 18000A2s for I
2t and 1200Vp for blocking voltage
Control voltage range: 4 - 32 VDC
Local or remote current set-point
LED indications for the different faults
Alarm signal output for SSR or load circuit malfunction
Integrated voltage transient protection with varistor
Short circuit current rating 100kArms
Partial load failure detection
Zero cross switching
Ratings up to 600VACrms & 90AACrms
Up to 18000A2s for I
2t and 1200Vp for blocking voltage
Control voltage range: 4 - 32 VDC
Local or remote current set-point
LED indications for the different faults
Alarm signal output for SSR or load circuit malfunction
Integrated voltage transient protection with varistor
Short circuit current rating 100kArms
