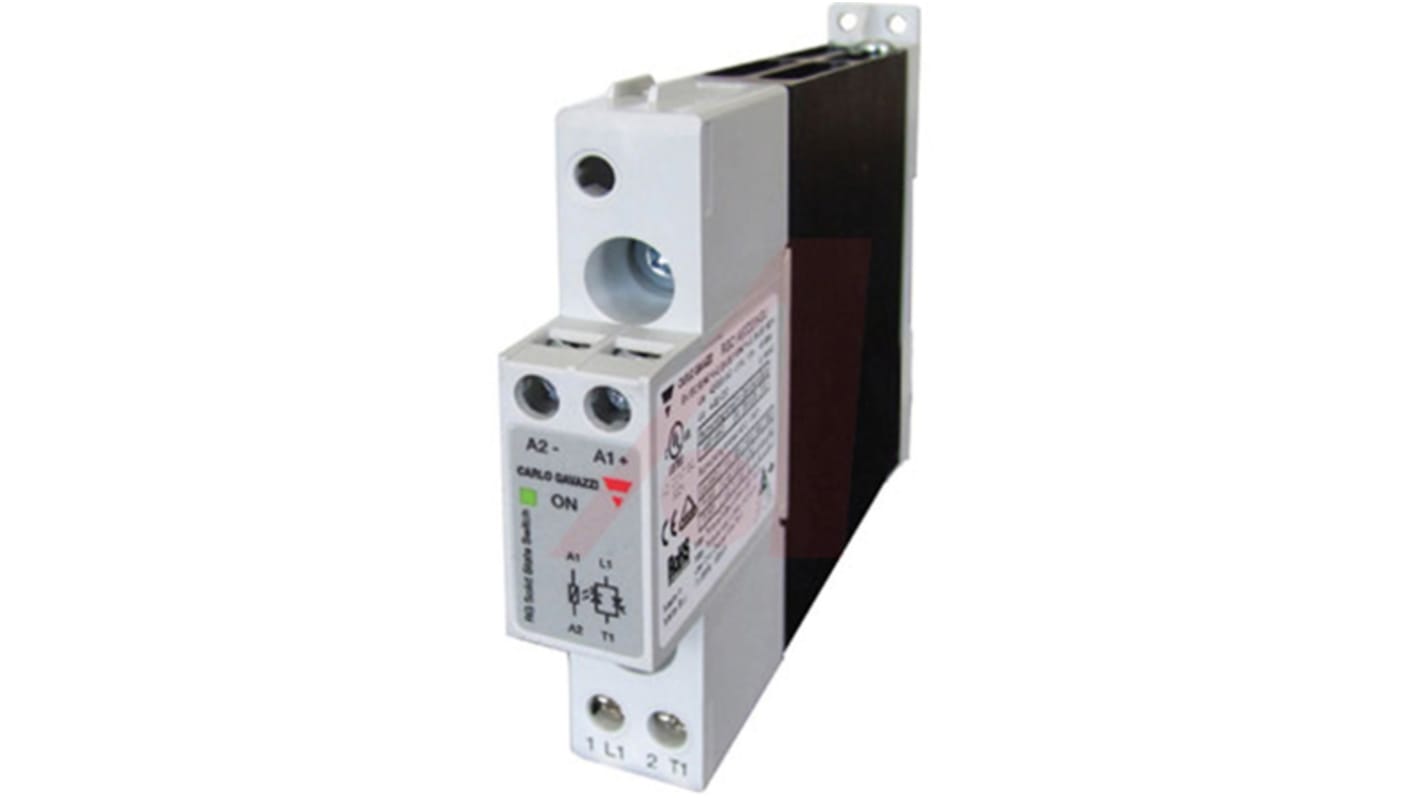

Carlo Gavazzi RGC Series Solid State Relay, 70 A Load, DIN Rail Mount, 600 V ac Load, 32V dc Control
- RS stock no.:
- 857-7817
- Distrelec Article No.:
- 304-27-300
- Mfr. Part No.:
- RGC1A60D60KGU
- Manufacturer:
- Carlo Gavazzi
Subtotal (1 unit)*
R 3 567,97
(exc. VAT)
R 4 103,17
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 3,567.97 |
*price indicative
- RS stock no.:
- 857-7817
- Distrelec Article No.:
- 304-27-300
- Mfr. Part No.:
- RGC1A60D60KGU
- Manufacturer:
- Carlo Gavazzi
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 70A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 600V ac | |
| Minimum Load Voltage | 42V ac | |
| Maximum Control Voltage | 32V dc | |
| Minimum Control Voltage | 4V dc | |
| Series | RGC | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| IP Rating | IP20 | |
| Switching Function | Zero Cross Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 70mm | |
| Width | 70 mm | |
| Height | 110mm | |
| Standards/Approvals | CE, cULus, EAC, EE, RoHS, UKCA, UL, VDE | |
| Off State Leakage Current | 3mA | |
| Output Type | Varistor | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Solid State Relay | ||
Maximum Load Current 70A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 600V ac | ||
Minimum Load Voltage 42V ac | ||
Maximum Control Voltage 32V dc | ||
Minimum Control Voltage 4V dc | ||
Series RGC | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
IP Rating IP20 | ||
Switching Function Zero Cross Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Length 70mm | ||
Width 70 mm | ||
Height 110mm | ||
Standards/Approvals CE, cULus, EAC, EE, RoHS, UKCA, UL, VDE | ||
Off State Leakage Current 3mA | ||
Output Type Varistor | ||
Exempt
- COO (Country of Origin):
- MT
RGC Series Solid State Contactors
The RGC series of solid state contactors from Carlo Gavazzi are an evolution of the solid state switches and provide an opportunity to maximise panel space with the smallest contactor at 17.5mm.
Power and control terminals allow for safe looping of cables
Integrated voltage transient protection with varistor
Short circuit current rating: 100 kA
IP20 ingress protection
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
