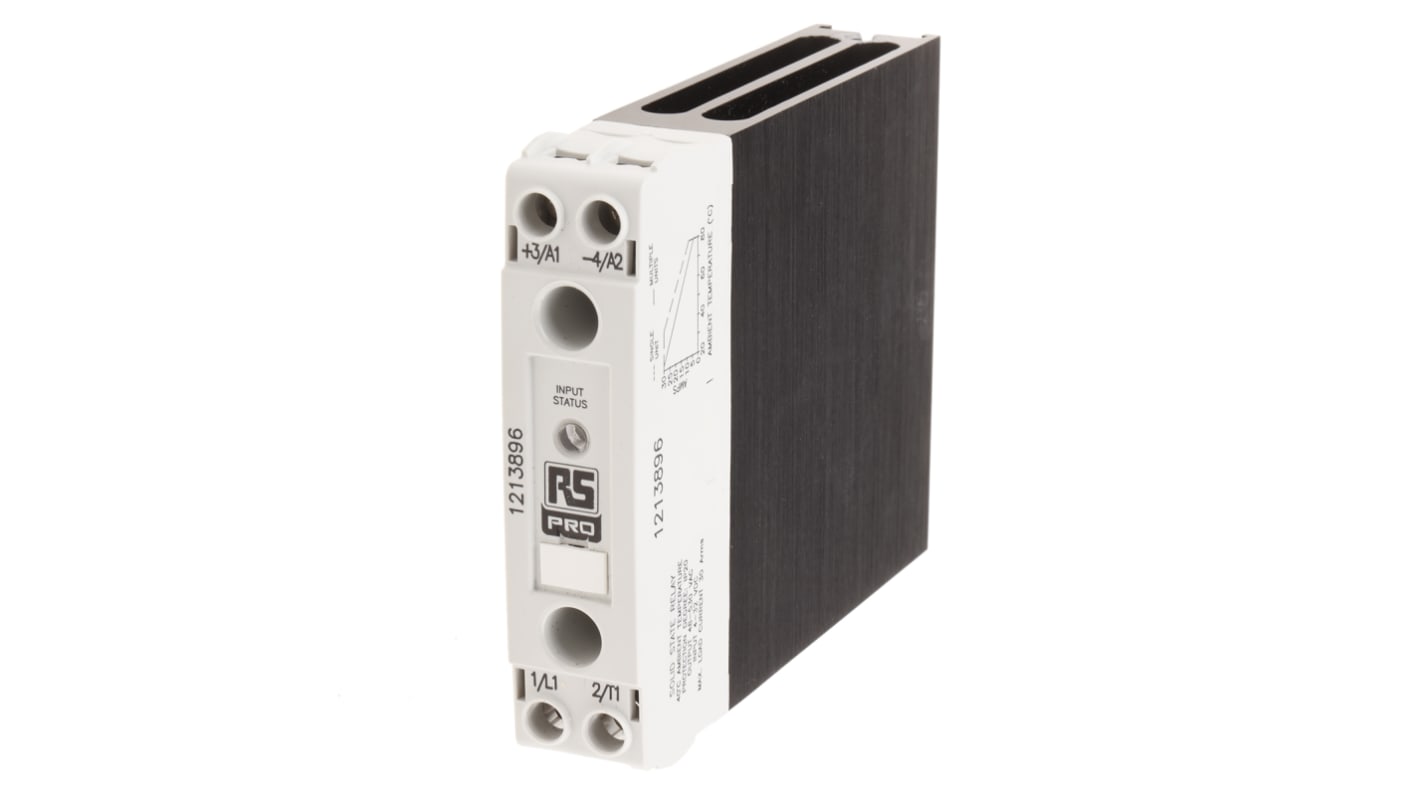

RS PRO Solid State Relay, 30 A Load, DIN Rail Mount, 530 V rms Load, 32 V dc Control

View all Solid State Relays

Subtotal (1 unit)*

R 1 466,80

(exc. VAT)

R 1 686,82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 1,466.80

*price indicative

RS stock no.:
121-3896
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Load Current

30 A

Mounting Type

DIN Rail

Maximum Load Voltage

530 V rms

Minimum Load Voltage

48Vrms

Minimum Control Voltage

4 V dc

Maximum Control Voltage

32 V dc

Switching Type

Zero Cross

Control Voltage Range

4 → 32 V dc

Terminal Type

Screw

Contact Configuration

SP

Relay Type

Solid State Relay

Load Voltage Range

48 → 530Vrms

Dimensions

93.2 x 22.5 x 116.5mm

Special Features

LED Indicator

Depth

116.5mm

Length

22.5mm

Off State Leakage Current

1mA rms

Maximum Operating Temperature

+60°C

Capacitance

8pF

Minimum Operating Temperature

-20°C

Height

93.2mm

Standards Met

RoHS Compliant

COO (Country of Origin):
MX

RS PRO 30 A SP Solid State Relay, DIN Rail, 530 V RMS Maximum Load


Need to regulate the opening and closing of circuit contacts in order to transmit the appropriate output signals? Turn to this RS PRO solid-state relay. It's suitable for use in both industrial and domestic applications.

Thanks to the unit's compact design, it can be installed in tight spaces. The integral heat sink prevents the unit from overheating and causing fires by channelling heat away from the circuits.

The unit has an IP20 rating, meaning it's touch-safe to prevent electrical shocks. You can use this relay in your home or workshop.

Features and Benefits


  • Capacitance of 8 pF

  • SP (single pole) contact configuration

  • Control voltage range of 4 to 32 V DC

  • Dimensions of 93.2 (height) x 22.5 (length) x 116.5 mm (depth)

  • Load voltage range of 48 to 530 V RMS (root mean square)

  • Maximum load current of 30 A

  • Operating temperature range of -20°C to +60°C

  • DIN rail mounting type

  • Off-state leakage current of 1 mA RMS (root mean square)

  • Solid-state relay type

  • LED (light-emitting diode) indicator

  • RoHS (Restriction of Hazardous Substances) compliant

  • Screw terminal type
