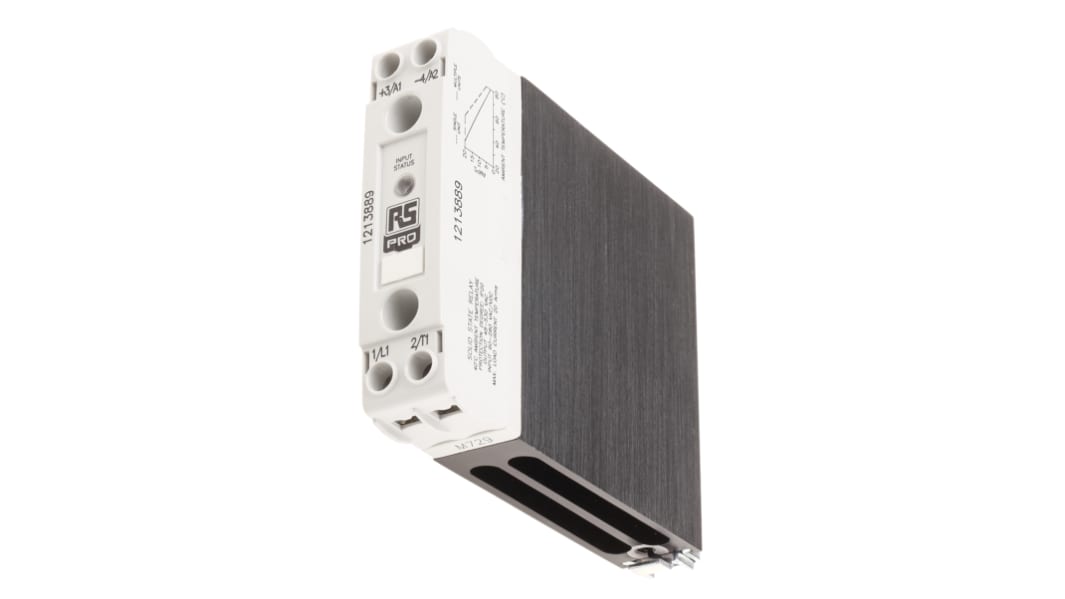

RS PRO Solid State Relay, 20 A Load, DIN Rail Mount, 530 Vrms Load, 280V ac Control
- RS stock no.:
- 121-3889
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
R 1 510,88
(exc. VAT)
R 1 737,51
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,510.88 |
*price indicative
- RS stock no.:
- 121-3889
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 20A | |
| Product Type | Solid State Relay | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 530Vrms | |
| Minimum Load Voltage | 48Vrms | |
| Minimum Control Voltage | 90V ac | |
| Maximum Control Voltage | 280V ac | |
| Terminal Type | Screw | |
| Contact Configuration | SP | |
| Minimum Operating Temperature | -20°C | |
| Switching Function | Random Switching | |
| Maximum Operating Temperature | 60°C | |
| Height | 93.2mm | |
| Standards/Approvals | RoHS | |
| Length | 22.5mm | |
| Capacitance | 8pF | |
| Off State Leakage Current | 1mArms | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 20A | ||
Product Type Solid State Relay | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 530Vrms | ||
Minimum Load Voltage 48Vrms | ||
Minimum Control Voltage 90V ac | ||
Maximum Control Voltage 280V ac | ||
Terminal Type Screw | ||
Contact Configuration SP | ||
Minimum Operating Temperature -20°C | ||
Switching Function Random Switching | ||
Maximum Operating Temperature 60°C | ||
Height 93.2mm | ||
Standards/Approvals RoHS | ||
Length 22.5mm | ||
Capacitance 8pF | ||
Off State Leakage Current 1mArms | ||
RS PRO 20 A SP Solid State Relay, DIN Rail, 530 V RMS Maximum Load
Use this RS PRO solid state relay to control the opening and closing of circuit contacts and transmit the desired output signals to your applications. It's suitable for both industrial and domestic equipment and appliances.
The slimline design and construction enable you to install the relay in compact spaces. An LED (light-emitting diode) shows whether the unit is on or off and functioning correctly.
An Ingress Protection (IP) rating of IP20 makes the relay safe to touch and means electrical shocks are prevented. You can use this product in your home and workshops.
Features and Benefits
• Capacitance of 8 pF
• Service provider (SP) contact configuration
• Control voltage range of 90 to 280 V AC
• Dimensions of 93.2 (height) x 22.5 (length) x 116.5 (depth) mm
• Load voltage range of 48 to 530 V RMS (root mean square)
• Maximum control voltage of 280 V AC
• Maximum load current of 20 A
• Maximum load voltage of 530 V RMS
• Minimum control voltage of 90 V AC
• Minimum load voltage of 48 V RMS
• Maximum operating temperature of +60°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• Off-state leakage current of 1 mA RMS (root mean square)
• Solid-state relay type
• LED indicator special features
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Screw terminal type
