Phoenix Contact PLC Series Solid State Relay, 3 A Load, DIN Rail Mount, 33 V Load, 30V Control
- RS stock no.:
- 129-844
- Mfr. Part No.:
- 2980610
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
R 10 272,51
(exc. VAT)
R 11 813,39
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | R 10,272.51 | R 1,027.251 |
*price indicative
- RS stock no.:
- 129-844
- Mfr. Part No.:
- 2980610
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 3A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 33V | |
| Minimum Load Voltage | 3V | |
| Minimum Control Voltage | 16.8V | |
| Maximum Control Voltage | 30V | |
| Series | PLC | |
| Terminal Type | Screw | |
| Contact Configuration | 1 NO | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 94mm | |
| Width | 6.2mm | |
| Standards/Approvals | UKCA-, UL Listed, UL Recognised, cUL Listed, cUL Recognised, cULus Listed, cULus Recognised, DIN EN 50155/VDE 0115-200 (in relevant parts), E-, EAC, EN 60068-2-60, IEC 60947-5-1, ISA-S71.04. G3 Harsh Group, RoHS, Shipbuilding Approval (DNV GL) | |
| Height | 80mm | |
| Output Type | Electronic | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Solid State Relay | ||
Maximum Load Current 3A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 33V | ||
Minimum Load Voltage 3V | ||
Minimum Control Voltage 16.8V | ||
Maximum Control Voltage 30V | ||
Series PLC | ||
Terminal Type Screw | ||
Contact Configuration 1 NO | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Length 94mm | ||
Width 6.2mm | ||
Standards/Approvals UKCA-, UL Listed, UL Recognised, cUL Listed, cUL Recognised, cULus Listed, cULus Recognised, DIN EN 50155/VDE 0115-200 (in relevant parts), E-, EAC, EN 60068-2-60, IEC 60947-5-1, ISA-S71.04. G3 Harsh Group, RoHS, Shipbuilding Approval (DNV GL) | ||
Height 80mm | ||
Output Type Electronic | ||
- COO (Country of Origin):
- DE

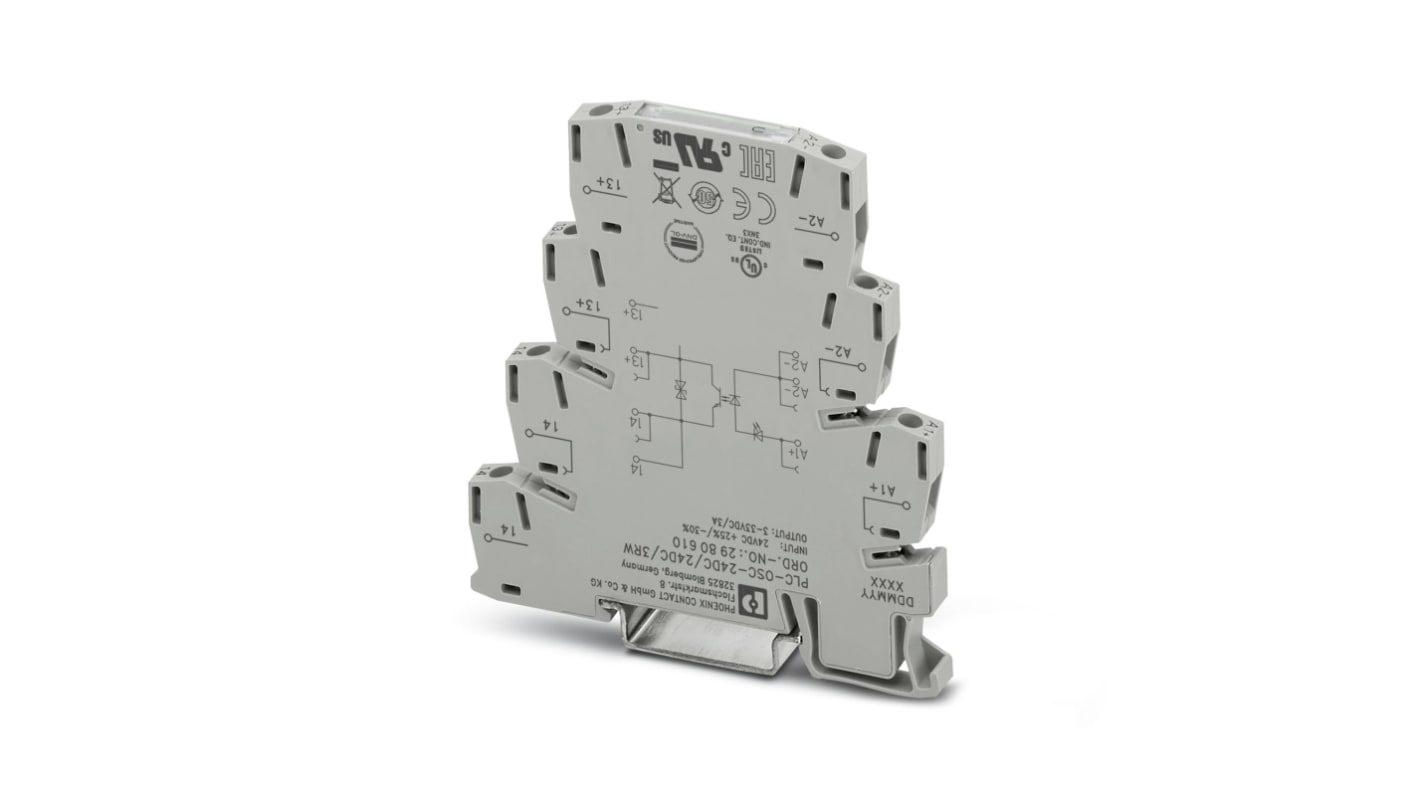

The Phoenix Contact Solid-state relay module is the perfect solution for railway applications. It consists of a basic terminal block with a screw connection and an integrated miniature solid-state relay. With a voltage range of 0.7 x U to 1.25 x U and a temperature range of -25°C to +70°C, this module provides reliable performance in various conditions. It features a single N/O contact, with an input voltage of 24 V DC and an output voltage range of 3 V DC to 33 V DC/3 A. With its compact design and high-quality construction, this relay module is a must-have for any railway application.
Suitable for railway applications
Wide voltage and temperature range
Single N/O contact for efficient control
Easy installation with screw connection
High-quality construction for durability
Long-lasting performance with solid-state design
