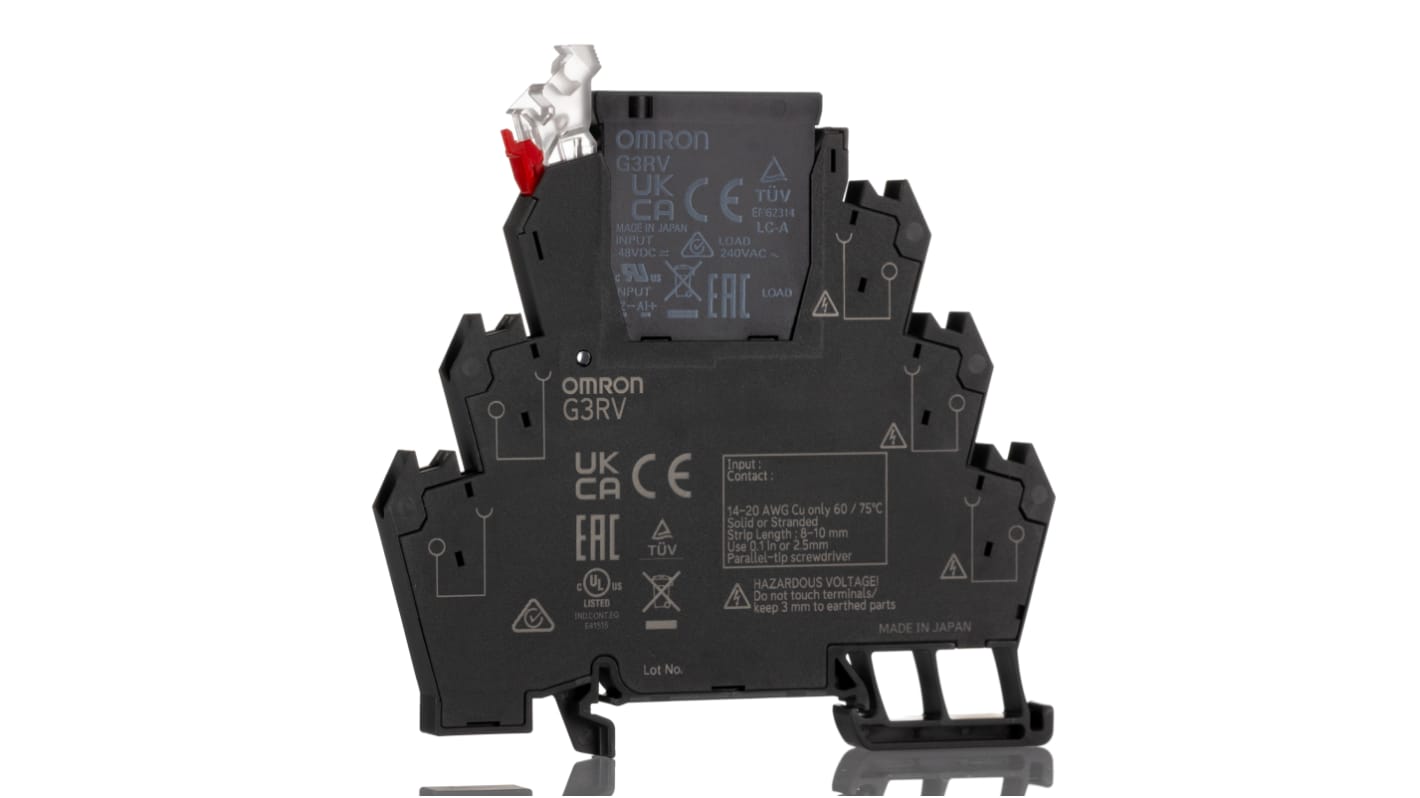

Omron G3RV-ST Series Solid State Interface Relay, 230 V ac Control, 2 A Load, DIN Rail Mount

RS stock no.:: 271-1892
Mfr. Part No.:: G3RV-ST700-AL 230VAC
Manufacturer:: Omron

Omron G3RV-ST Series Solid State Interface Relay, 230 V ac Control, 2 A Load, DIN Rail Mount

Subtotal (1 unit)*

R 1 131,50

(exc. VAT)

R 1 301,22

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 1,131.50

*price indicative

RS stock no.:: 271-1892
Mfr. Part No.:: G3RV-ST700-AL 230VAC
Manufacturer:: Omron

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Maximum Control Voltage	230 V ac
	Maximum Load Current	2 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	264 V ac
	Minimum Control Voltage	207 V
	Control Voltage Range	184 - 253 V
	Switching Type	High-Speed
	Contact Configuration	SPDT
	Load Voltage Range	75 - 264V
	Minimum Load Voltage	75 V ac
	Terminal Type	Screw
	Number of Poles	1
	Input Current	7.7mA
	Width	6.2mm
	Output Device	TRIAC
	Series	G3RV-ST
	Minimum Load Current	100 mA
	Length	88mm
	Depth	87.1mm
	Height	90mm
	Rise Time	3ms
	Maximum Turn On Time	3 ms
	Off State Leakage Current	5 mA
	Isolation Voltage	2500V
	Maximum Operating Temperature	+55°C
	Range	G3RV
	Package Style	Carton Box
	Minimum Operating Temperature	-30°C
	Dimensions	88 x 90 x 6.2mm
	Standards Met	CSA C22.2 No.14, EN 62314, IEC 60529, UL
	Special Features	60% Space Saving, Easy Maintenance
	Operating Temperature Range	-30 → 55°C
	Manufacturer Part No.	G3RV-ST700-AL AC230

	Select all
	Brand Omron
	Maximum Control Voltage 230 V ac
	Maximum Load Current 2 A
	Mounting Type DIN Rail
	Maximum Load Voltage 264 V ac
	Minimum Control Voltage 207 V
	Control Voltage Range 184 - 253 V
	Switching Type High-Speed
	Contact Configuration SPDT
	Load Voltage Range 75 - 264V
	Minimum Load Voltage 75 V ac
	Terminal Type Screw
	Number of Poles 1
	Input Current 7.7mA
	Width 6.2mm
	Output Device TRIAC
	Series G3RV-ST
	Minimum Load Current 100 mA
	Length 88mm
	Depth 87.1mm
	Height 90mm
	Rise Time 3ms
	Maximum Turn On Time 3 ms
	Off State Leakage Current 5 mA
	Isolation Voltage 2500V
	Maximum Operating Temperature +55°C
	Range G3RV
	Package Style Carton Box
	Minimum Operating Temperature -30°C
	Dimensions 88 x 90 x 6.2mm
	Standards Met CSA C22.2 No.14, EN 62314, IEC 60529, UL
	Special Features 60% Space Saving, Easy Maintenance
	Operating Temperature Range -30 → 55°C
	Manufacturer Part No. G3RV-ST700-AL AC230

COO (Country of Origin):: JP

Omron G3RV-ST Series Solid State Interface Relay, 2500V Isolation Voltage, SPDT - G3RV-ST700-AL AC230

This solid state interface relay is designed to facilitate reliable switching of low-power signals in industrial control systems. With maximum 230V AC control voltage and a load current of 2A, it offers a dependable solution for interfacing between PLCs (Programmable Logic Controllers) or other control devices and external loads.

Features & Benefits

• Solid state relay technology for silent operation and long lifespan
• DIN rail mountable for convenient installation
• Load voltage range of 75 to 264 V
• Optically isolated for enhanced noise immunity and reliability

Applications

• Used in industrial automation for switching signals between PLCs and peripheral devices
• Ideal for controlling small motors, solenoids, and other actuators
• Deployed in HVAC systems for switching signals in control panels
• Suitable for use in process control and manufacturing equipment

What is the minimum load current?

This solid state interface relay has 100 mA minimum load current.

What is the rise time of this relay?

Solid state relays has fast response time of 3 ms.

Is it suitable for harsh environments?

While solid state relays offer good resistance to shock, vibration, and humidity, ensure environmental conditions align with specified operating parameters for optimal performance and longevity.
