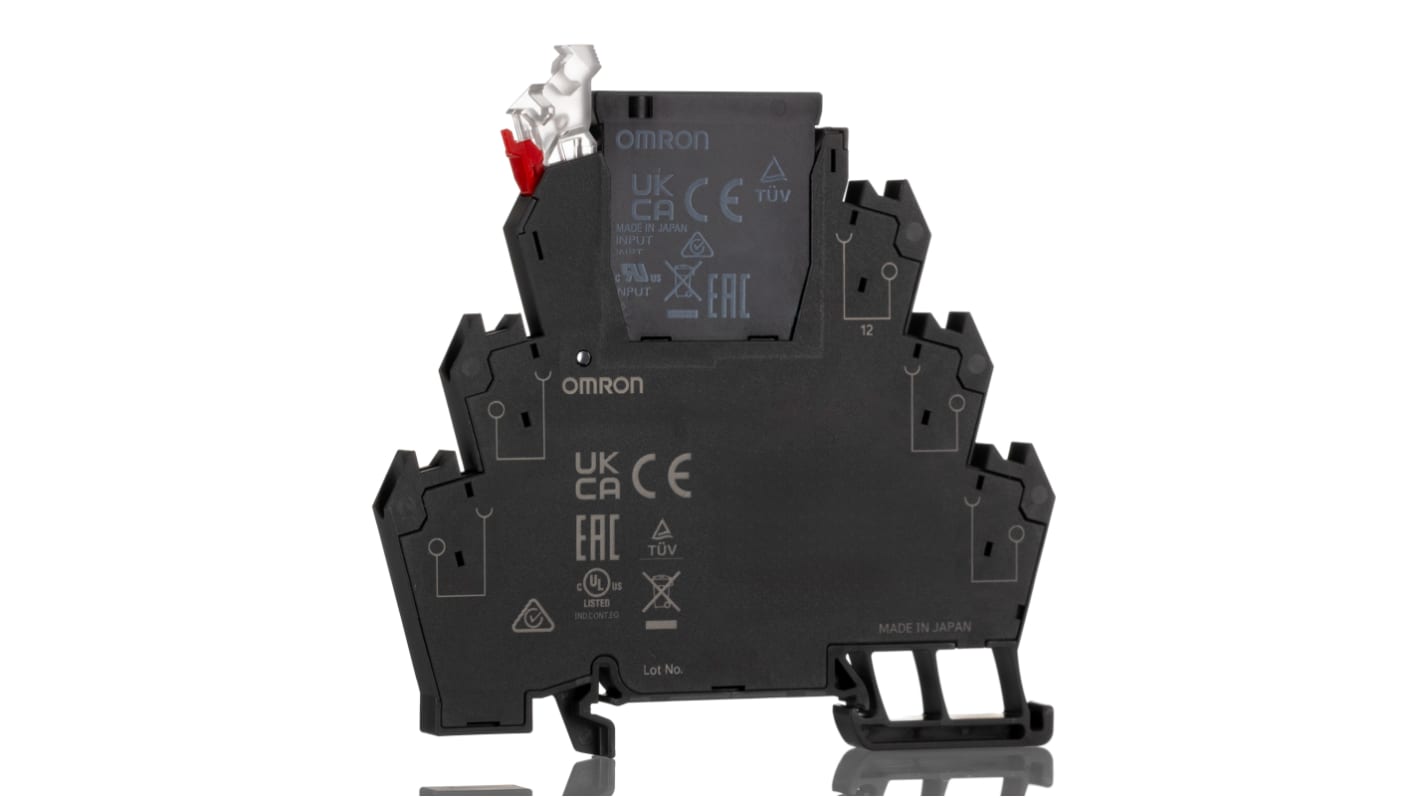

Omron G3RV-ST Series Solid State Interface Relay, 230 V ac Control, 2 A Load, DIN Rail Mount

RS stock no.:: 271-1872
Mfr Part No.:: G3RV-ST500-AL 230VAC
Manufacturer:: Omron

Omron G3RV-ST Series Solid State Interface Relay, 230 V ac Control, 2 A Load, DIN Rail Mount

Subtotal (1 unit)*

R 1 131,35

(exc. VAT)

R 1 301,05

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

Plus 5 unit(s) shipping from 15 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 1,131.35

*price indicative

RS stock no.:: 271-1872
Mfr Part No.:: G3RV-ST500-AL 230VAC
Manufacturer:: Omron

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Maximum Control Voltage	230 V ac
	Maximum Load Current	2 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	264 V ac
	Minimum Control Voltage	207 V
	Control Voltage Range	184 - 253 V
	Switching Type	High-Speed
	Contact Configuration	SPDT
	Load Voltage Range	75 - 264V
	Minimum Load Voltage	75 V ac
	Terminal Type	Push In
	Number of Poles	1
	Input Current	7.7mA
	Width	6.2mm
	Output Device	TRIAC
	Depth	87.1mm
	Minimum Load Current	100 mA
	Length	88mm
	Rise Time	3ms
	Height	90mm
	Series	G3RV-ST
	Maximum Operating Temperature	+55°C
	Package Style	Carton Box
	Special Features	60% Space Saving, Easy Maintenance
	Maximum Turn On Time	3 ms
	Off State Leakage Current	5 mA
	Dimensions	88 x 90 x 6.2mm
	Minimum Operating Temperature	-30°C
	Standards Met	CSA C22.2 No.14, EN 62314, IEC 60529, UL
	Range	G3RV
	Isolation Voltage	2500V
	Operating Temperature Range	-30 → 55°C
	Manufacturer Part No.	G3RV-ST500-AL AC230

	Select all
	Brand Omron
	Maximum Control Voltage 230 V ac
	Maximum Load Current 2 A
	Mounting Type DIN Rail
	Maximum Load Voltage 264 V ac
	Minimum Control Voltage 207 V
	Control Voltage Range 184 - 253 V
	Switching Type High-Speed
	Contact Configuration SPDT
	Load Voltage Range 75 - 264V
	Minimum Load Voltage 75 V ac
	Terminal Type Push In
	Number of Poles 1
	Input Current 7.7mA
	Width 6.2mm
	Output Device TRIAC
	Depth 87.1mm
	Minimum Load Current 100 mA
	Length 88mm
	Rise Time 3ms
	Height 90mm
	Series G3RV-ST
	Maximum Operating Temperature +55°C
	Package Style Carton Box
	Special Features 60% Space Saving, Easy Maintenance
	Maximum Turn On Time 3 ms
	Off State Leakage Current 5 mA
	Dimensions 88 x 90 x 6.2mm
	Minimum Operating Temperature -30°C
	Standards Met CSA C22.2 No.14, EN 62314, IEC 60529, UL
	Range G3RV
	Isolation Voltage 2500V
	Operating Temperature Range -30 → 55°C
	Manufacturer Part No. G3RV-ST500-AL AC230

COO (Country of Origin):: JP

Omron G3RV-ST Series Solid State Interface Relay, Phototriac Isolation Method, 0.1 to 2A Output Load Current - G3RV-ST500-AL AC230

This solid state interface relay features a sleek design, measuring 88x90x6.2mm, and is capable of handling a maximum load voltage of 264V AC. With a control voltage range of 184 to 253V and high-speed switching capabilities, it promotes operational efficiency.

Features & Benefits

• High-speed switching ensures rapid response times
• Space-saving design allows for compact installations
• Push-in terminal type enables easy maintenance
• TRIAC output provides control of electrical loads
• Meets industry standards for compliance and safety

Applications

• Used in automation control systems
• Ideal for electrical load management
• Suitable for industrial machinery applications
• Frequently deployed in HVAC systems
• Utilised in safety and signalling circuits

Is it compatible with DIN rail installations?

Yes, it is specifically designed for DIN rail mounting.

Will it provide isolation for connected devices?

Yes, it features an isolation voltage of 2500V.

What is the operating temperature range?

Yes, it functions effectively between -30 and +55°C.

Does it meet safety standards?

Yes, it complies with CSA C22.2 No.14, EN 62314, IEC 60529, and UL standards.
