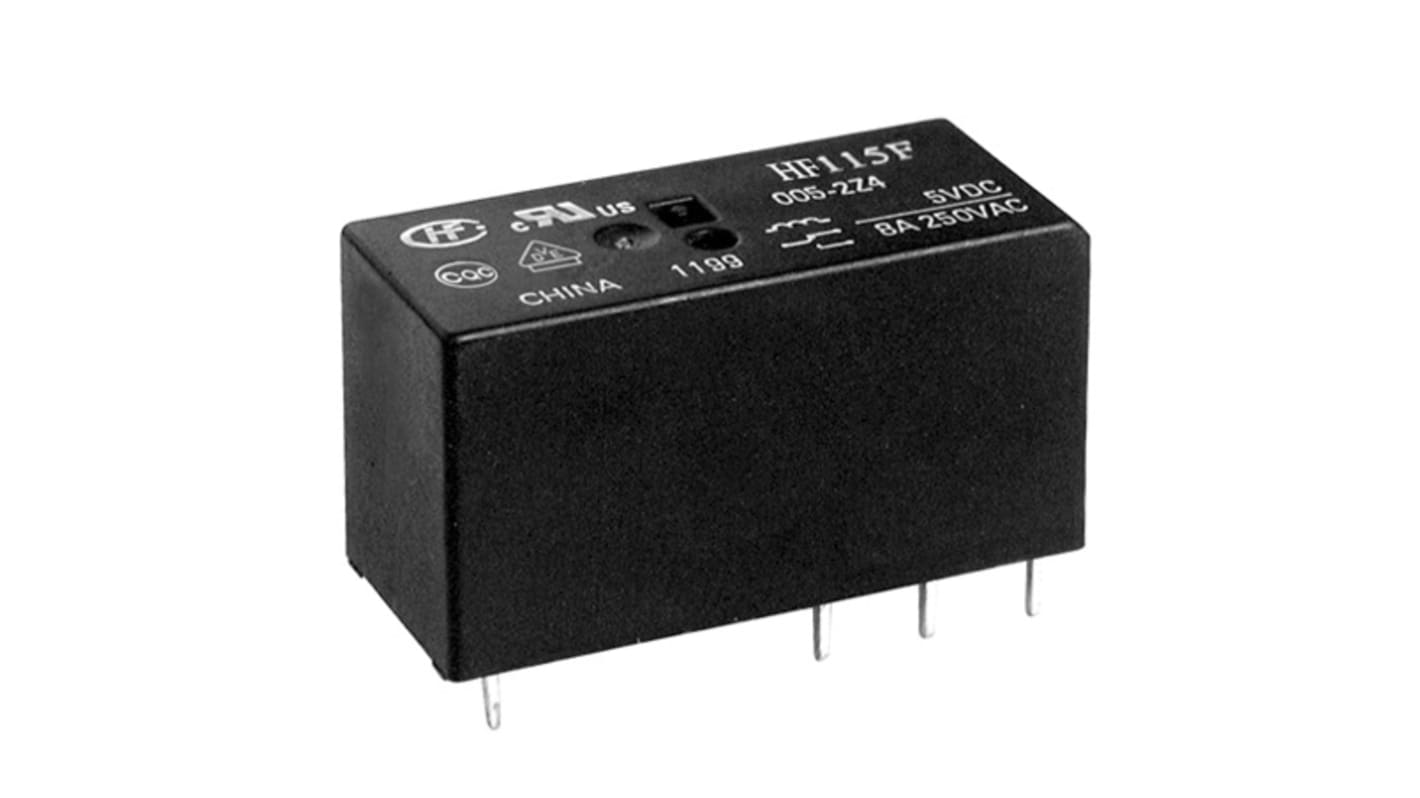

Hongfa Europe GMBH PCB Mount Power Relay, 5V dc Coil, 12A Switching Current, SPST

View all Power Relays
Discontinued
RS stock no.:
176-2789
Mfr. Part No.:
HF115F/005-1HS3BF(610)
Manufacturer:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

5V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

12 A, 16A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

440V

Maximum Switching Voltage DC

300V dc

Maximum Switching Current AC

12 A, 16 A

Maximum Switching Current DC

16 A

Length

29mm

Coil Resistance

62Ω

Coil Power

400mW

Depth

12.7mm

Maximum Operating Temperature

+85°C

Isolation Coil To Contact

10kV

Series

HF115F

Minimum Operating Temperature

-40°C

Contact Material

Silver Alloy

Height

15.7mm

Life

1 x 10^7 cycles

Maximum Switching Power AC

4 kVA

COO (Country of Origin):
CN

Hongfa SPNO Non-Latching Relay


The Hongfa SPNO 1-pole non-latching PCB mount relay is actuated with the help of a 5VDC coil and up to 12A DC/AC or 16A DC/AC current through the coil for the relay to switch positions. It is a miniature type high power relay. It can be used with a single coil winding configuration. This relay has silver alloy contact for high electrical endurance.

Features and Benefits


• Environmental friendly product
• Isolation voltage between the coil and contacts is 10KV
• Service temperature range between -40°C and 85°C
• High mechanical endurance and life expectancy of 10M cycles
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving

Applications


• Used as a control device
• Automotive industry
• Household appliances
• Industrial machinery
• Telecommunication
