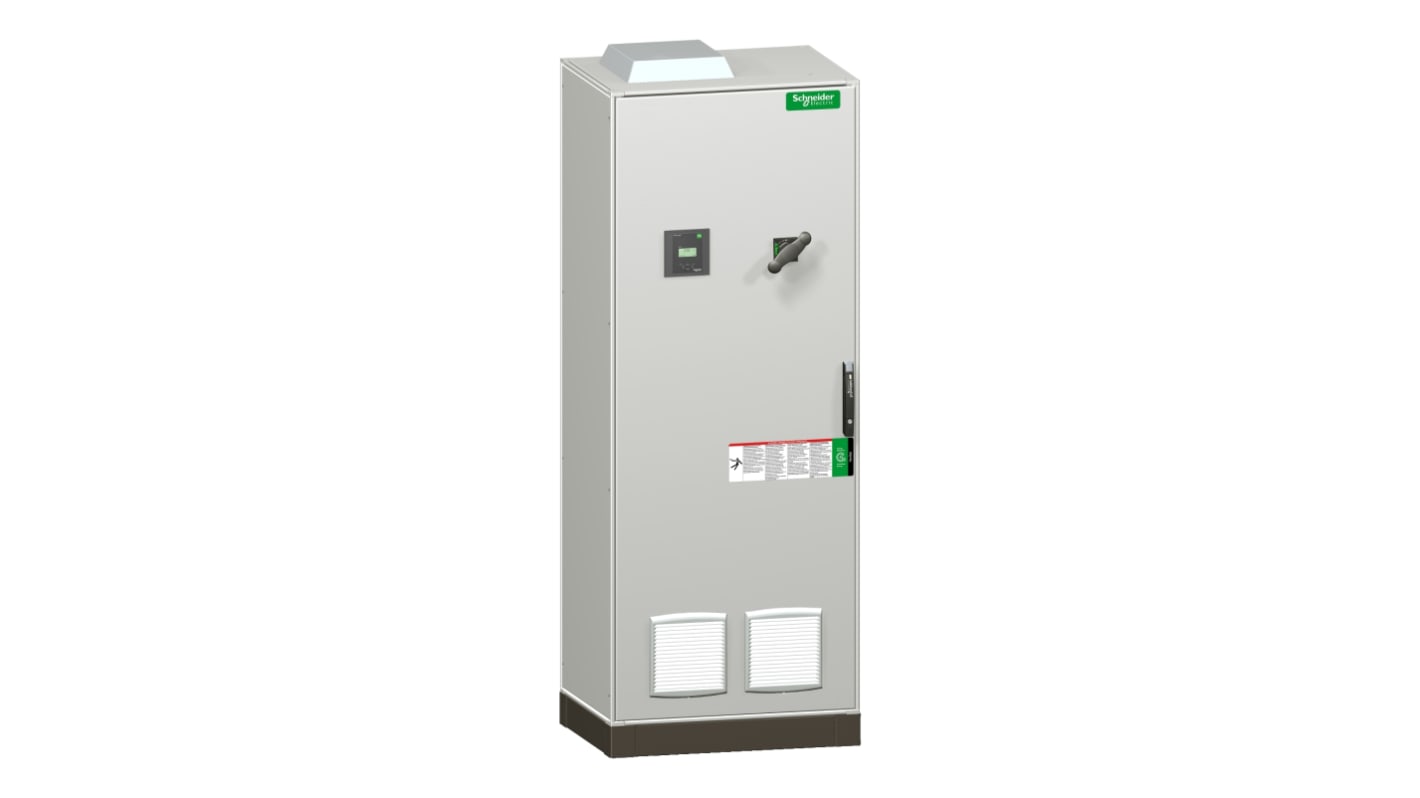

Schneider Electric Power Factor Correction Capacitor 400 kvar 400 kvar 3

RS stock no.:: 276-9427
Mfr. Part No.:: VLVAF5N03518AA
Manufacturer:: Schneider Electric

Schneider Electric Power Factor Correction Capacitor 400 kvar 400 kvar 3

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS stock no.:: 276-9427
Mfr. Part No.:: VLVAF5N03518AA
Manufacturer:: Schneider Electric

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Power Factor Correction Capacitor
	Rated AC Voltage	400V ac
	Weight	434kg
	Standards/Approvals	IEC 61439-1, IEC 61439-2, IEC 61921, CE ASEFA EAC
	Maximum Operating Temperature	45°C
	Minimum Operating Temperature	-5°C
	Width	800mm
	Number of Phases	3
	Mount Type	Floor Standing
	Series	VarSet
	kVAr 60Hz	400kvar
	Tolerance	-5 to 10 %
	kVAr 50Hz	400kvar
	Length	600mm
	Height	2200mm

	Select all
	Brand Schneider Electric
	Product Type Power Factor Correction Capacitor
	Rated AC Voltage 400V ac
	Weight 434kg
	Standards/Approvals IEC 61439-1, IEC 61439-2, IEC 61921, CE ASEFA EAC
	Maximum Operating Temperature 45°C
	Minimum Operating Temperature -5°C
	Width 800mm
	Number of Phases 3
	Mount Type Floor Standing
	Series VarSet
	kVAr 60Hz 400kvar
	Tolerance -5 to 10 %
	kVAr 50Hz 400kvar
	Length 600mm
	Height 2200mm

Datasheet - VLVAF5N03518AA

Exempt

The Schneider Electric Residual current breaker with overcurrent protection is for distribution device applications. It has thermal magnetic trip unit technology.

Green premium product

Mercury free

Schneider Electric Power Factor Correction Capacitor 400 kvar 400 kvar 3
