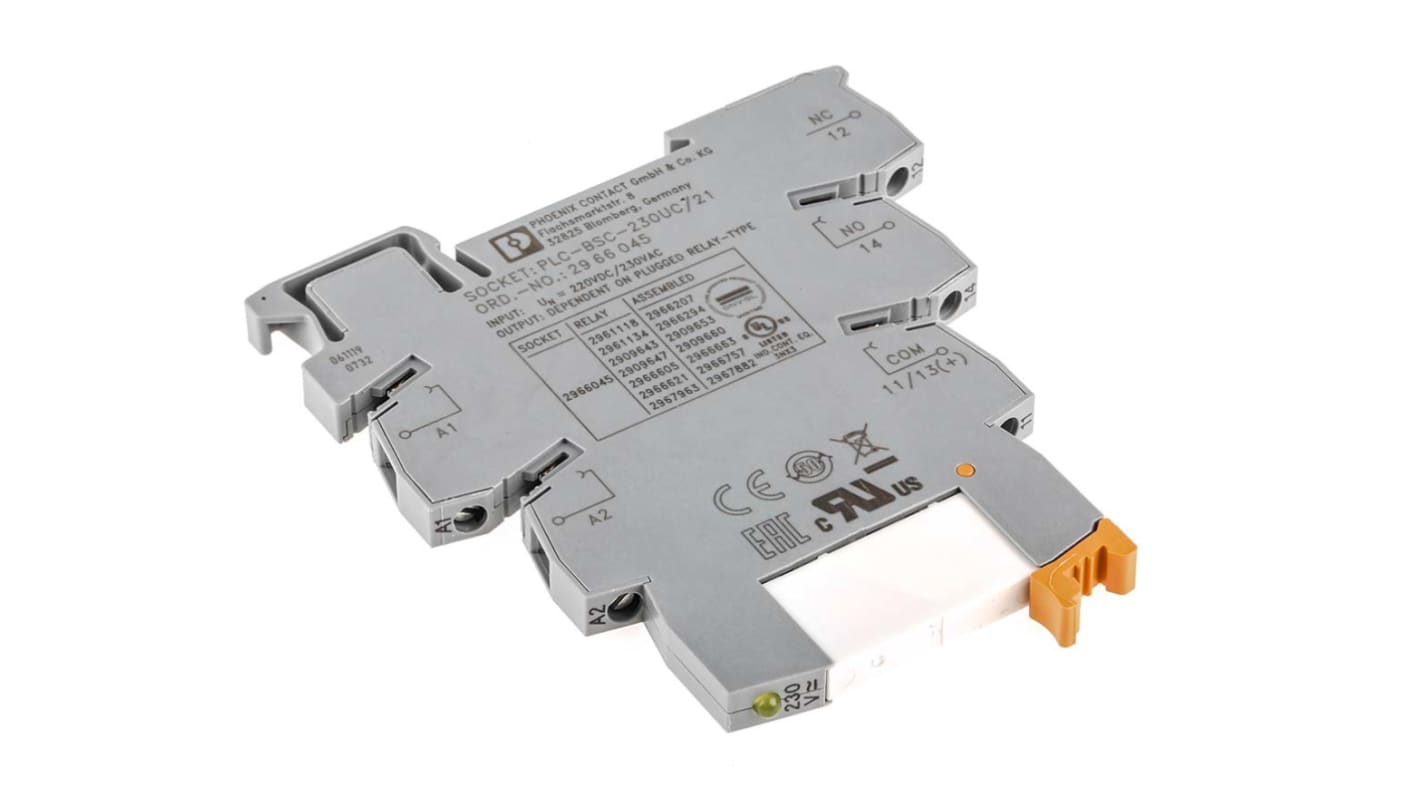

Phoenix Contact PLC-RSC-230UC/21 Series Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPDT, 1-Pole

RS stock no.:: 358-8339
Distrelec Article No.:: 137-20-852
Mfr. Part No.:: 2966207
Manufacturer:: Phoenix Contact

Phoenix Contact PLC-RSC-230UC/21 Series Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPDT, 1-Pole

Bulk discount available

Price (Excl VAT) Each

R 452,78

(exc. VAT)

R 520,70

(inc. VAT)

8 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

50 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Units	Per unit
1 - 9	R 452,78
10 - 24	R 441,46
25 +	R 428,22

RS stock no.:: 358-8339
Distrelec Article No.:: 137-20-852
Mfr. Part No.:: 2966207
Manufacturer:: Phoenix Contact

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series

This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:

The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Phoenix Contact Interface Relay Module, Screw Terminal, SPDT - PLC-RSC-230UC/21 - 2966207

This compact PLC (programmable logic controller) relay from Phoenix Contact will save space on your DIN rail. It features a basic terminal block with a screw connection and a miniature power relay.
The space-saving design uses the same electromechanical relay module for switching both AC and DC voltage. The SPDT (single pole, double throw) configuration means it can be used both as an on-off switch and to transfer between two circuits. Screw terminals make for quick and secure connections. A yellow LED (light-emitting diode) operating voltage display makes it easy to monitor performance, while a freewheeling damping diode protects the circuit against damage from sudden current loss.
The interface relay module's IP20 (ingress protection) rating means it's protected from dust and finger-sized objects. DIN-rail mounting ensures it's easy to install and compatible with a wide range of components.

• Coil voltage of 230 V AC/DC
• Silver alloy contact material
• Dimensions of 80 (length) x 94 (height) x 6.2 mm (depth)
• Input current of 3 (DC) mA, 3.2 (AC) mA
• Maximum input voltage of 230 V AC
• Operating temperature range of -25°C to +55°C
• Switching current of 6 A

Attribute	Value
Coil Voltage	230V ac/dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Series	PLC-RSC-230UC/21
Number of Poles	1
Maximum Input Voltage	230V ac
Minimum Input Voltage	179.4V ac
Terminal Type	Screw
Switching Voltage	250V ac/dc
Depth	6.2mm
Height	94mm
Length	80mm
Contact Material	Silver Alloy
Input Current	(dc) 3 mA, (ac) 3.2mA
Maximum Operating Temperature	+55°C
Input Voltage Range	179.4 → 264.5V ac
Operating Temperature Range	-40 → +55°C
Life	2 x 10^7 Cycles
Turn On Time	7ms
Accessory Type	Relay Module
Special Features	Degree of protection IP20
Relay Switching Classification	Miniature Relay
Relay Type	Solid State Relay
Dimensions	80 x 6.2 x 94mm
Turn Off Time	15ms
Minimum Operating Temperature	-40°C
