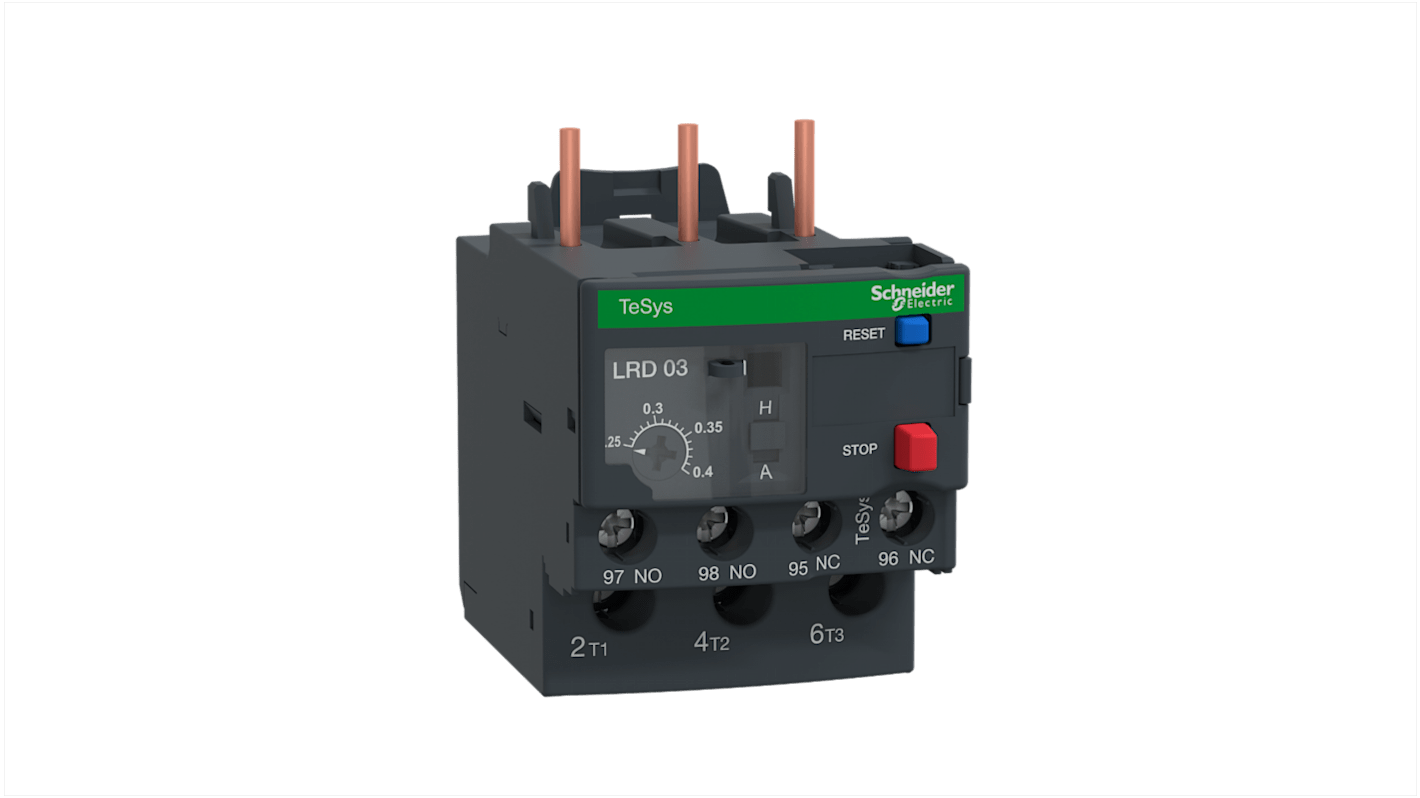

Schneider Electric, LRD Thermal Overload Relay 1 NO/1 NC, Trip Dial: 0.25 → 0.4 A, 250mA, 400 mA F.L.C, 400mA Contact
- RS stock no.:
- 394-9447
- Mfr. Part No.:
- LRD03
- Manufacturer:
- Schneider Electric
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 859,00
(exc. VAT)
R 987,85
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 29 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 859.00 |
| 5 - 9 | R 837.52 |
| 10 + | R 812.40 |
*price indicative
- RS stock no.:
- 394-9447
- Mfr. Part No.:
- LRD03
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 250mA, 400mA | |
| Relay Contact Current | 400mA | |
| Mount Type | Direct | |
| Series | LRD | |
| Power Rating | 90W | |
| Pole and Throw Configuration | 3 | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 0.25 → 0.4 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -20°C | |
| Width | 45mm | |
| Contact Voltage | 690V ac | |
| Maximum Operating Temperature | 60°C | |
| Length | 123mm | |
| Depth | 66mm | |
| Standards/Approvals | CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, UL 60947-4-1, UL 60947-5-1 | |
| Supply Voltage | 690V ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 250mA, 400mA | ||
Relay Contact Current 400mA | ||
Mount Type Direct | ||
Series LRD | ||
Power Rating 90W | ||
Pole and Throw Configuration 3 | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 0.25 → 0.4 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -20°C | ||
Width 45mm | ||
Contact Voltage 690V ac | ||
Maximum Operating Temperature 60°C | ||
Length 123mm | ||
Depth 66mm | ||
Standards/Approvals CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EN 50495, EN/IEC 60947-4-1, EN/IEC 60947-5-1, GB/T 14048.4, GB/T 14048.5, UL 60947-4-1, UL 60947-5-1 | ||
Supply Voltage 690V ac | ||
Schneider Electric LRD Series Thermal Overload Relay, 0.25 to 0.4 A FLC Motor Rating, 3 Pole Configuration - LRD03
This thermal overload relay provides reliable motor protection, ideal for automation and electrical applications. Designed as a 3P thermal overload relay, it operates within a current rating range of 0.25 to 0.4A and features dimensions of 123mm x 66mm x 45mm. The device ensures robust electrical overload protection with an operating temperature range of -20 to +60 °C.
Features & Benefits
• Automatic reset method enhances operational efficiency
• Screw terminal design simplifies installation and maintenance
• Integrated with 1NO + 1NC auxiliary contacts for versatility
• Suitable for direct contactor mounting, maximising space utilisation
• Rated for 690V AC operation, ensuring broad compatibility
• Trip threshold of 130% of rated current protects against overloads
Applications
• Utilised in motor control circuits for efficient protection
• Compatible with various LC1D series contactors for versatility
• Employed in AC and DC network environments
• Ideal for industrial machinery requiring thermal overload protection
What is the maximum current rating supported for signalling circuits?
The permissible current for signalling circuits reaches up to 3A at 120V AC-15, ensuring reliable operation for signalling requirements.
How is the reset process configured for this relay?
The device allows both automatic and manual reset methods, providing flexibility depending on operational needs and safety protocols.
What kind of mounting support is available for this relay?
It can be mounted on a plate, rail, or underneath a contactor using specific accessories, which makes it adaptable for different installation scenarios.
What is the significance of having a trip threshold of 1.14 +/- 0.06 Ir?
This designated trip threshold provides accurate and reliable tripping behaviour, ensuring effective protection against potential overload conditions for connected motors.
