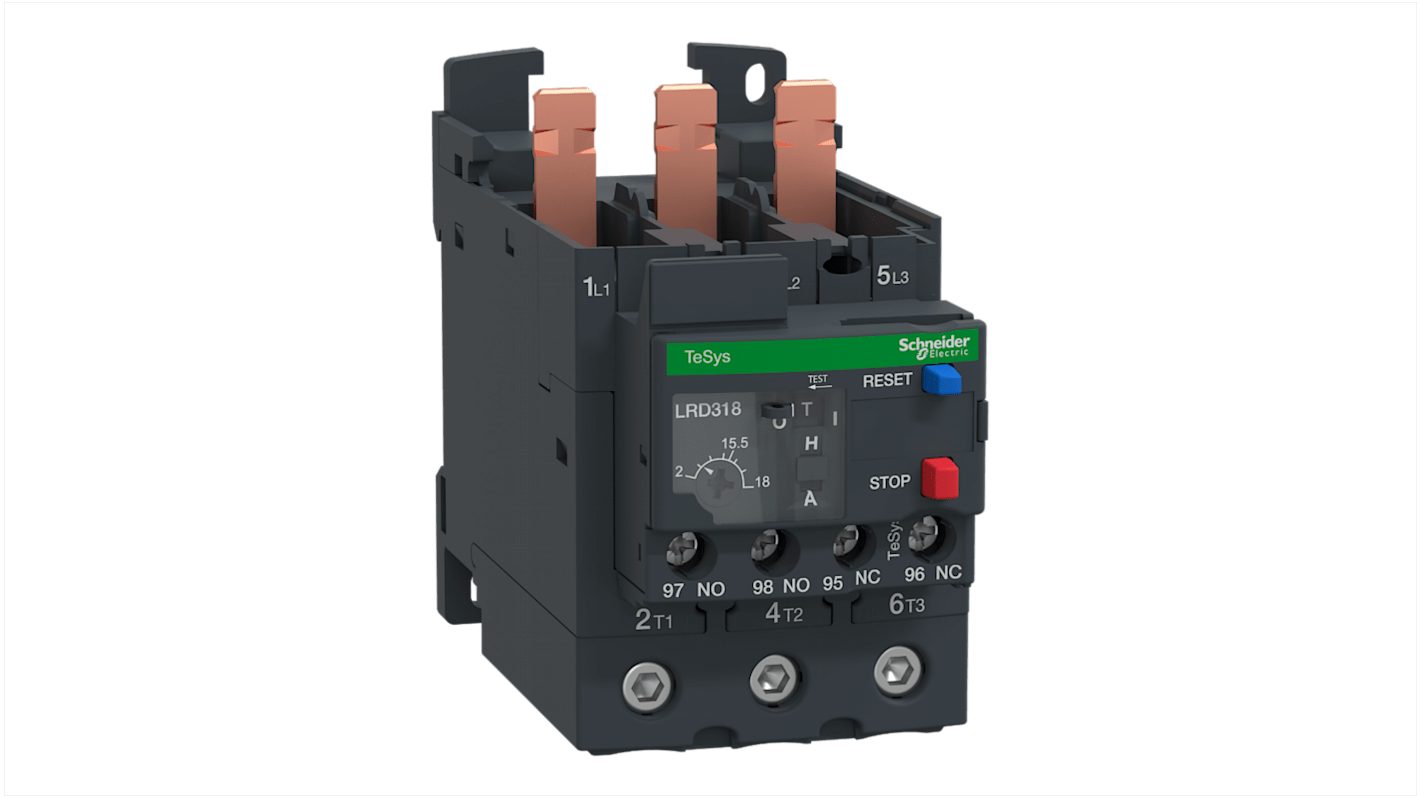

Schneider Electric LRD Thermal Overload Relay 1NO + 1NC, 12 → 18 A F.L.C, 18 A Contact Rating, TeSys D
- RS stock no.:
- 727-6204
- Mfr. Part No.:
- LRD318
- Manufacturer:
- Schneider Electric
Bulk discount available
Subtotal (1 unit)*
R 1 784,33
(exc. VAT)
R 2 051,98
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,784.33 |
| 5 - 9 | R 1,739.72 |
| 10 + | R 1,687.53 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS stock no.:
- 727-6204
- Mfr. Part No.:
- LRD318
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| FLC Motor Rating | 12 → 18 A | |
| Contact Current Rating | 18 A | |
| Range | TeSys D | |
| Series | LRD | |
| Mounting Style | DIN Rail Mount | |
| Normal State Configuration | 1NO + 1NC | |
| Terminal Type | Screw | |
| Number Of Auxiliary Contacts | 2 | |
| Width | 55mm | |
| Depth | 116mm | |
| Length | 70mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +60 °C | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Contact Voltage Rating | 1 kV ac | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
FLC Motor Rating 12 → 18 A | ||
Contact Current Rating 18 A | ||
Range TeSys D | ||
Series LRD | ||
Mounting Style DIN Rail Mount | ||
Normal State Configuration 1NO + 1NC | ||
Terminal Type Screw | ||
Number Of Auxiliary Contacts 2 | ||
Width 55mm | ||
Depth 116mm | ||
Length 70mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +60 °C | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Contact Voltage Rating 1 kV ac | ||
Exempt
- COO (Country of Origin):
- FR
Three-pole Thermal Overload Relays
Three-pole thermal overload relays designed to protect ac circuits against overloads, phase failure, long starting times and prolonged stalling of the motor.
Adjustable relay setting dial
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV
Test button
Stop button
Manual/auto reset
Trip indicator
Sealable cover
1N/O & 1N/C auxiliary contacts
Direct mounting beneath three-pole contactors or independent mounting on DIN rail
Insulation voltage 600V, Withstand Voltage 6kV
