Nisshinbo Micro Devices NJM7812DL1A-TE1, 1-Channel Linear Voltage, Voltage Regulator, 1.5 A, 12 V, TO-252 3-Pin
- RS stock no.:
- 713-9489
- Mfr. Part No.:
- NJM7812DL1A-TE1
- Manufacturer:
- Nisshinbo Micro Devices

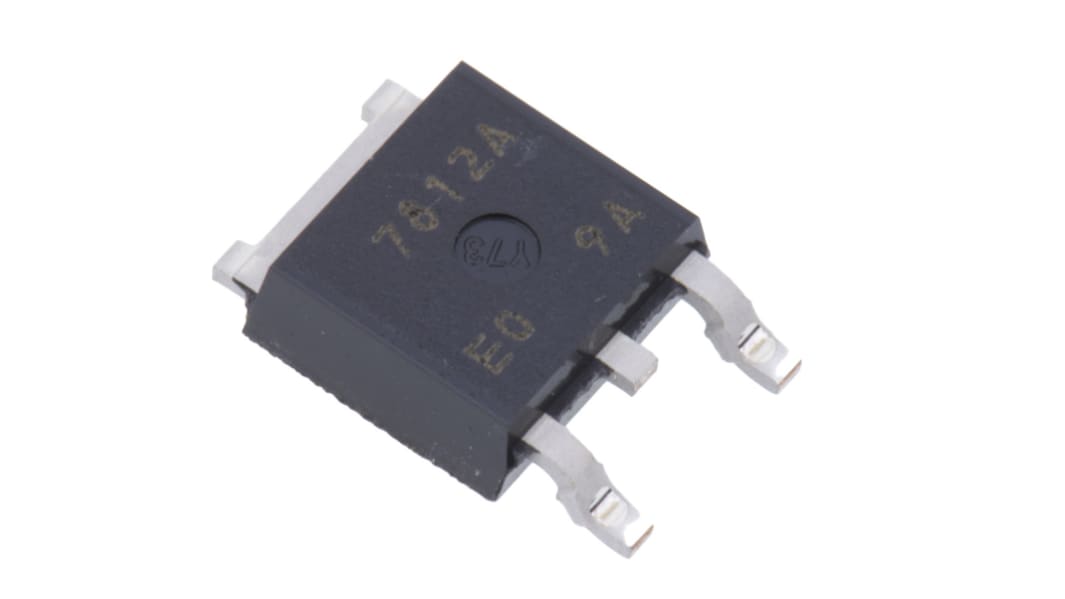

Image representative of range
Bulk discount available
Subtotal (1 pack of 5 units)*
R 62,96
(exc. VAT)
R 72,405
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 1,400 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | R 12.592 | R 62.96 |
| 25 - 45 | R 12.278 | R 61.39 |
| 50 - 95 | R 11.91 | R 59.55 |
| 100 - 245 | R 11.434 | R 57.17 |
| 250 + | R 10.976 | R 54.88 |
*price indicative
- RS stock no.:
- 713-9489
- Mfr. Part No.:
- NJM7812DL1A-TE1
- Manufacturer:
- Nisshinbo Micro Devices
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Regulator Type | Linear Voltage | |
| Product Type | Voltage Regulator | |
| Output Voltage | 12 V | |
| Number of Outputs | 1 | |
| Line Regulation | 240 mV | |
| Load Regulation | 240 mV | |
| Mount Type | Surface | |
| Polarity | Positive | |
| Quiescent Current | 4.3mA | |
| Package Type | TO-252 | |
| Output Current | 1.5A | |
| Pin Count | 3 | |
| Power Rating | 1W | |
| Output Type | Fixed | |
| Standards/Approvals | No | |
| Height | 2.29mm | |
| Length | 6.54mm | |
| Series | NJM78xx | |
| Width | 6.04 mm | |
| Maximum Input Voltage | 35V | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Regulator Type Linear Voltage | ||
Product Type Voltage Regulator | ||
Output Voltage 12 V | ||
Number of Outputs 1 | ||
Line Regulation 240 mV | ||
Load Regulation 240 mV | ||
Mount Type Surface | ||
Polarity Positive | ||
Quiescent Current 4.3mA | ||
Package Type TO-252 | ||
Output Current 1.5A | ||
Pin Count 3 | ||
Power Rating 1W | ||
Output Type Fixed | ||
Standards/Approvals No | ||
Height 2.29mm | ||
Length 6.54mm | ||
Series NJM78xx | ||
Width 6.04 mm | ||
Maximum Input Voltage 35V | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Automotive Standard No | ||
NJM78xx, 1.5A Voltage Regulators, New Japan Radio
The NJM78xx Series, positive linear voltage regulator by New Japan Radio is a fixed voltage regulator. The 3-Terminal NJM78 range of voltage regulators requires no external components unless you want to adjust the voltage and current outputs. They incorporate internal thermal overload protection and current limiting plus safe area compensation. The NJR regulator IC produces an output current of 1.5A and is used in a wide variety of applications including on-card regulation which eliminates problems that occur with single point regulation.
Output Current: 1.5A
Fixed Voltage range 5 V up to 20 V
Internal Short Circuit Current Limit/ Internal Thermal Overload Protection
Good Ripple Rejection
TO252 Package
Bipolar Technology
Linear Voltage Regulators, New Japan Radio
