Analog Devices ADM8660ANZ Charge Pump, Regulator, 100 mA, 1.5 V 120 kHz, PDIP 8-Pin
- RS stock no.:
- 709-5232
- Mfr. Part No.:
- ADM8660ANZ
- Manufacturer:
- Analog Devices

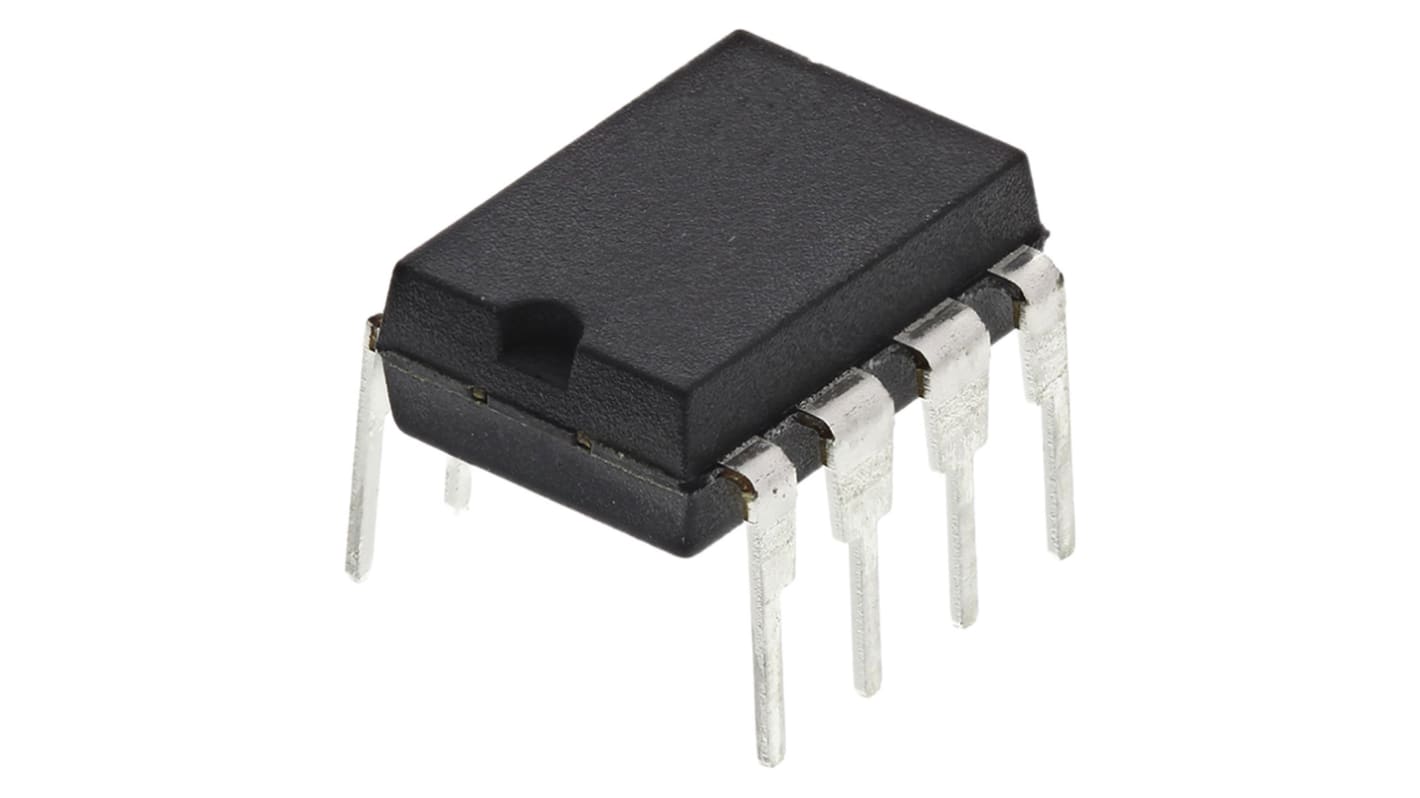

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 132,63
(exc. VAT)
R 152,52
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 13 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 9 | R 132.63 |
| 10 - 99 | R 129.31 |
| 100 - 249 | R 125.43 |
| 250 - 499 | R 120.41 |
| 500 + | R 115.59 |
*price indicative
- RS stock no.:
- 709-5232
- Mfr. Part No.:
- ADM8660ANZ
- Manufacturer:
- Analog Devices
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Product Type | Regulator | |
| Regulator Type | Charge Pump | |
| Output Voltage | 1.5 V | |
| Switching Frequency | 120kHz | |
| Mount Type | Through Hole | |
| Polarity | Inverting | |
| Package Type | PDIP | |
| Quiescent Current | 600μA | |
| Pin Count | 8 | |
| Output Current | 100mA | |
| Output Type | Adjustable | |
| Switching Regulator | Yes | |
| Length | 9.27mm | |
| Width | 7.24 mm | |
| Height | 3.43mm | |
| Standards/Approvals | RoHS | |
| Series | ADM8660 | |
| Maximum Input Voltage | 7V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Minimum Input Voltage | 1.5V | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Product Type Regulator | ||
Regulator Type Charge Pump | ||
Output Voltage 1.5 V | ||
Switching Frequency 120kHz | ||
Mount Type Through Hole | ||
Polarity Inverting | ||
Package Type PDIP | ||
Quiescent Current 600μA | ||
Pin Count 8 | ||
Output Current 100mA | ||
Output Type Adjustable | ||
Switching Regulator Yes | ||
Length 9.27mm | ||
Width 7.24 mm | ||
Height 3.43mm | ||
Standards/Approvals RoHS | ||
Series ADM8660 | ||
Maximum Input Voltage 7V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Minimum Input Voltage 1.5V | ||
Automotive Standard No | ||
Unregulated Charge Pump Converters, Analog Devices
Switched Capacitor Converters, Analog Devices
