Littelfuse, LA Varistor Metal Oxide Varistor 800 pF 100 A, Clamping 2700 V, Varistor 184.5 to 1800 V, Radial Leaded
- RS stock no.:
- 543-4953
- Mfr. Part No.:
- V150LA10AP
- Manufacturer:
- Littelfuse

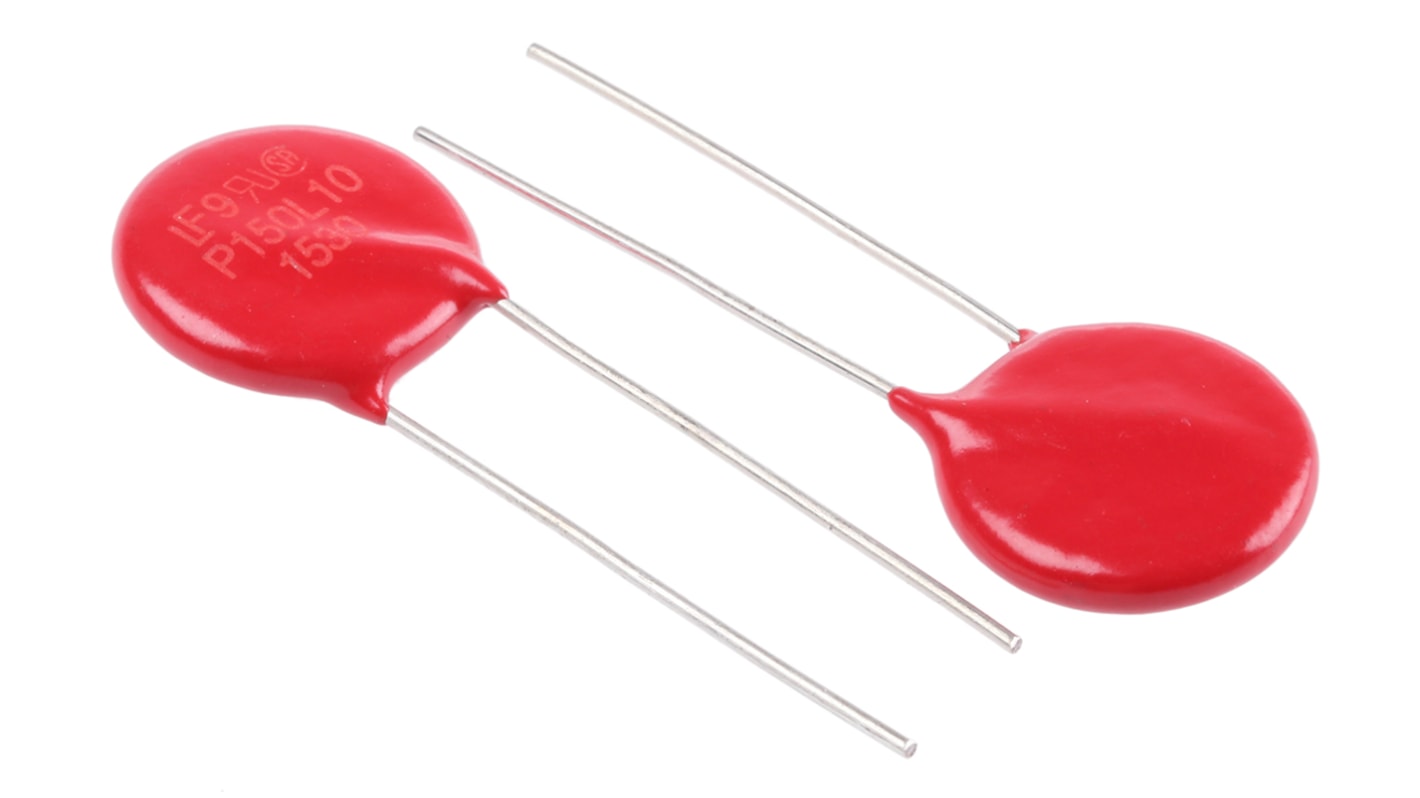

Image representative of range
Bulk discount available
Subtotal (1 pack of 5 units)*
R 63,70
(exc. VAT)
R 73,25
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 55 unit(s) ready to ship from another location
- Plus 4,890 unit(s) shipping from 26 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | R 12.74 | R 63.70 |
| 50 - 95 | R 12.422 | R 62.11 |
| 100 - 495 | R 12.05 | R 60.25 |
| 500 - 995 | R 11.568 | R 57.84 |
| 1000 + | R 11.106 | R 55.53 |
*price indicative
- RS stock no.:
- 543-4953
- Mfr. Part No.:
- V150LA10AP
- Manufacturer:
- Littelfuse
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | Metal Oxide Varistor | |
| Varistor Voltage | 184.5 to 1800 V | |
| Packaging | Tape & Reel | |
| Clamping Voltage VC | 2700V | |
| Clamping Current | 100A | |
| Mount Type | Radial | |
| Series | LA Varistor | |
| Diameter | 17 mm | |
| Maximum AC Voltage | 150V | |
| Maximum DC Voltage | 200V | |
| Maximum Surge Current | 4500A | |
| Capacitance | 800pF | |
| Minimum Operating Temperature | -55°C | |
| Length | 40mm | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 85°C | |
| Thickness | 5.6mm | |
| Termination Style | Radial | |
| Standards/Approvals | UL1449, IEC 61051-1, IEC 61051-2, IEC 60950-1 Annex Q, CECC 42201-006 | |
| Depth | 5.6mm | |
| Package/Case | Radial Leaded Ceramic Disc | |
| Lead Pitch | 7.5mm | |
| Automotive Standard | No | |
| Energy Rating | 360J | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type Metal Oxide Varistor | ||
Varistor Voltage 184.5 to 1800 V | ||
Packaging Tape & Reel | ||
Clamping Voltage VC 2700V | ||
Clamping Current 100A | ||
Mount Type Radial | ||
Series LA Varistor | ||
Diameter 17 mm | ||
Maximum AC Voltage 150V | ||
Maximum DC Voltage 200V | ||
Maximum Surge Current 4500A | ||
Capacitance 800pF | ||
Minimum Operating Temperature -55°C | ||
Length 40mm | ||
Pin Count 2 | ||
Maximum Operating Temperature 85°C | ||
Thickness 5.6mm | ||
Termination Style Radial | ||
Standards/Approvals UL1449, IEC 61051-1, IEC 61051-2, IEC 60950-1 Annex Q, CECC 42201-006 | ||
Depth 5.6mm | ||
Package/Case Radial Leaded Ceramic Disc | ||
Lead Pitch 7.5mm | ||
Automotive Standard No | ||
Energy Rating 360J | ||
Littelfuse Metal Oxide Varistors - LA / MA / ZA Series
Littelfuse metal oxide varistors are compact and versatile, and can be used within a wide range of applications.
The LA series of MOV’s are radial-lead varistors that are designed to be operated continuously across AC power lines.
The MA series of MOV’s are axial-lead varistors that are designed for use in a wide variety of board level industrial and commercial electronic equipment, protecting components and signal/data lines from low energy transients.
The ZA series of MOV’s are radial-lead varistors that are designed for use in the protection of low and medium-voltage circuits and systems. Typical applications include motor control, telecom, automotive systems, solenoid, and power supply circuits to protect circuit board components and maintain data integrity.
