EPCOS, B722 Metal Oxide Varistor 23000 pF 10 A, Clamping 2970 V, Varistor 18 to 1800 V
- RS stock no.:
- 138-6040
- Mfr. Part No.:
- B72210S0271K101
- Manufacturer:
- EPCOS

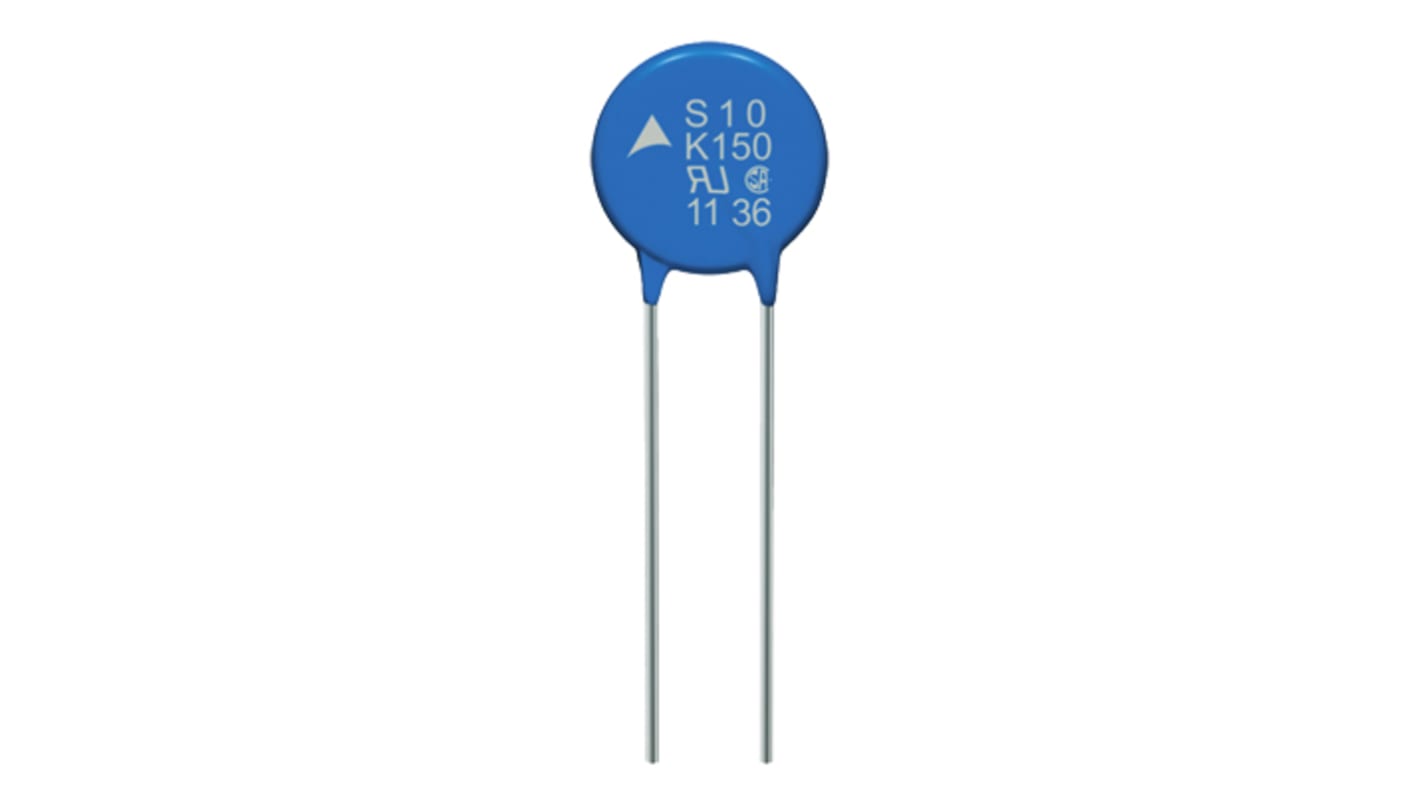

Image representative of range
Subtotal (1 box of 500 units)*
R 1 913,50
(exc. VAT)
R 2 200,50
(inc. VAT)
Add 500 units to get free delivery
Temporarily out of stock
- 500 unit(s) shipping from 19 June 2026
- Plus 1,000 unit(s) shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | R 3.827 | R 1,913.50 |
*price indicative
- RS stock no.:
- 138-6040
- Mfr. Part No.:
- B72210S0271K101
- Manufacturer:
- EPCOS
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Varistor Voltage | 18 to 1800 V | |
| Product Type | Metal Oxide Varistor | |
| Clamping Voltage VC | 2970V | |
| Clamping Current | 10A | |
| Mount Type | Lead | |
| Series | B722 | |
| Maximum AC Voltage | 1100V ac | |
| Diameter | 10 mm | |
| Maximum DC Voltage | 1465V dc | |
| Maximum Surge Current | 8000A | |
| Capacitance | 23000pF | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Length | 25mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IEC, CQC, CSA, UL, VDE | |
| Thickness | 8.4mm | |
| Depth | 14.5mm | |
| Termination Style | Radial | |
| Energy Rating | 1J | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Varistor Voltage 18 to 1800 V | ||
Product Type Metal Oxide Varistor | ||
Clamping Voltage VC 2970V | ||
Clamping Current 10A | ||
Mount Type Lead | ||
Series B722 | ||
Maximum AC Voltage 1100V ac | ||
Diameter 10 mm | ||
Maximum DC Voltage 1465V dc | ||
Maximum Surge Current 8000A | ||
Capacitance 23000pF | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Length 25mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IEC, CQC, CSA, UL, VDE | ||
Thickness 8.4mm | ||
Depth 14.5mm | ||
Termination Style Radial | ||
Energy Rating 1J | ||
Automotive Standard No | ||
Leaded varistors are varistor elements with lead wires as terminals. The coating of the varistors is MADE of flame-retardant material.
