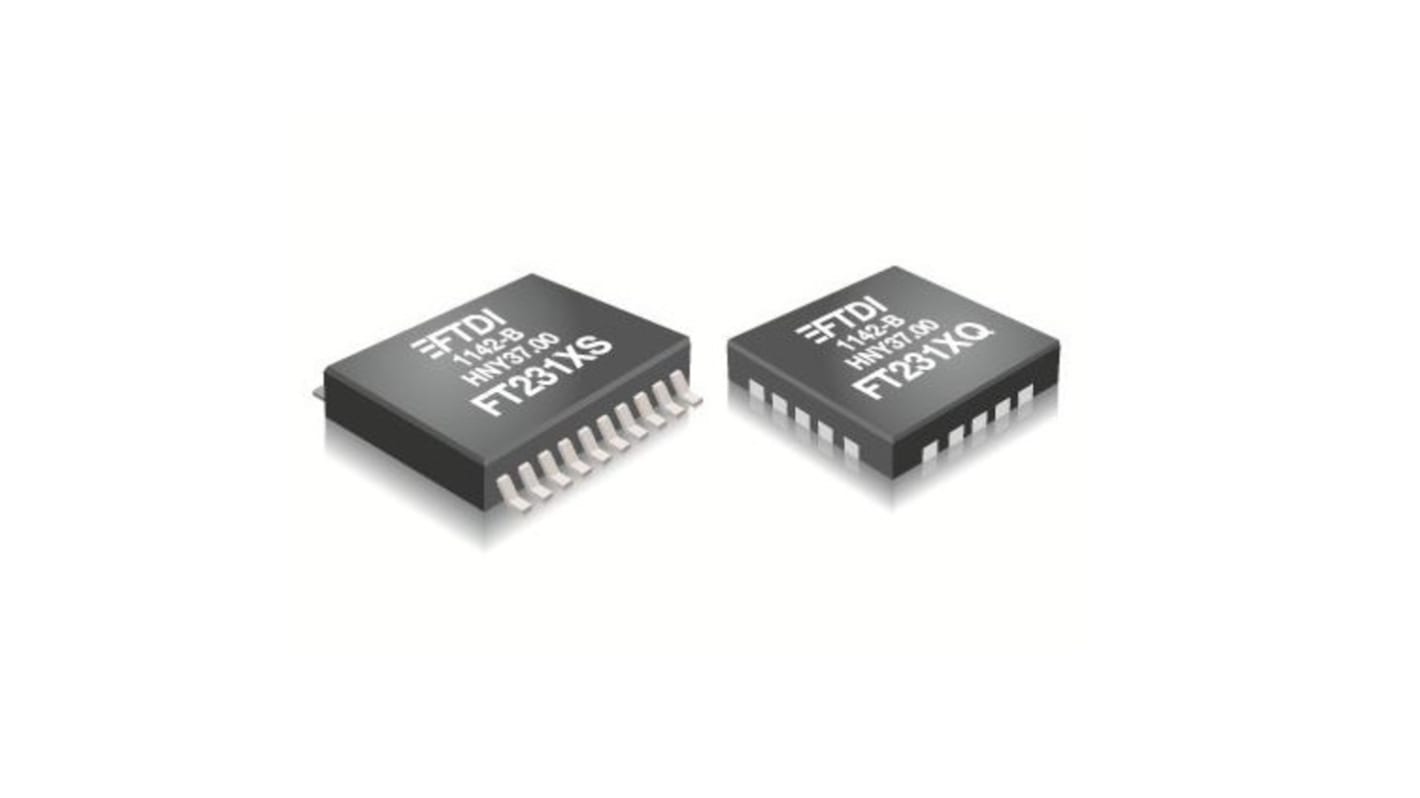

FTDI Chip FT231XQ-T, USB Controller 3.15 Mbps, 5.5 V, USB 2.0, 5.5 V, 20-Pin QFN
- RS stock no.:
- 216-2592
- Mfr. Part No.:
- FT231XQ-T
- Manufacturer:
- FTDI Chip
Image representative of range
Bulk discount available
Subtotal (1 pack of 5 units)*
R 277,95
(exc. VAT)
R 319,65
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | R 55.59 | R 277.95 |
| 10 - 20 | R 54.20 | R 271.00 |
| 25 - 45 | R 52.574 | R 262.87 |
| 50 - 95 | R 50.472 | R 252.36 |
| 100 + | R 48.454 | R 242.27 |
*price indicative
- RS stock no.:
- 216-2592
- Mfr. Part No.:
- FT231XQ-T
- Manufacturer:
- FTDI Chip
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FTDI Chip | |
| Maximum Data Rate | 3.15Mbps | |
| Product Type | USB Controller | |
| USB Specification | USB 2.0 | |
| Sub Type | Controller | |
| ESD Protection | Yes | |
| Minimum Supply Voltage | 5.5V | |
| Maximum Supply Voltage | 5.5V | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 20 | |
| Supported Protocols | USB 2.0 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 4 mm | |
| Length | 4mm | |
| Series | FT231X | |
| Height | 0.8mm | |
| Standards/Approvals | No | |
| Supply Current | 8mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand FTDI Chip | ||
Maximum Data Rate 3.15Mbps | ||
Product Type USB Controller | ||
USB Specification USB 2.0 | ||
Sub Type Controller | ||
ESD Protection Yes | ||
Minimum Supply Voltage 5.5V | ||
Maximum Supply Voltage 5.5V | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 20 | ||
Supported Protocols USB 2.0 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 4 mm | ||
Length 4mm | ||
Series FT231X | ||
Height 0.8mm | ||
Standards/Approvals No | ||
Supply Current 8mA | ||
Automotive Standard No | ||
The FTDI Chip USB to serial UART interface with full modem control and fully integrated 2048 byte multi-time-programmable (MTP) memory, storing device descriptors and CBUS I/O configuration.
USB 2.0 full speed capable
-40 to 85°C operating temperature
Integrated power on reset circuit
Transmit and receive LED drive signals
