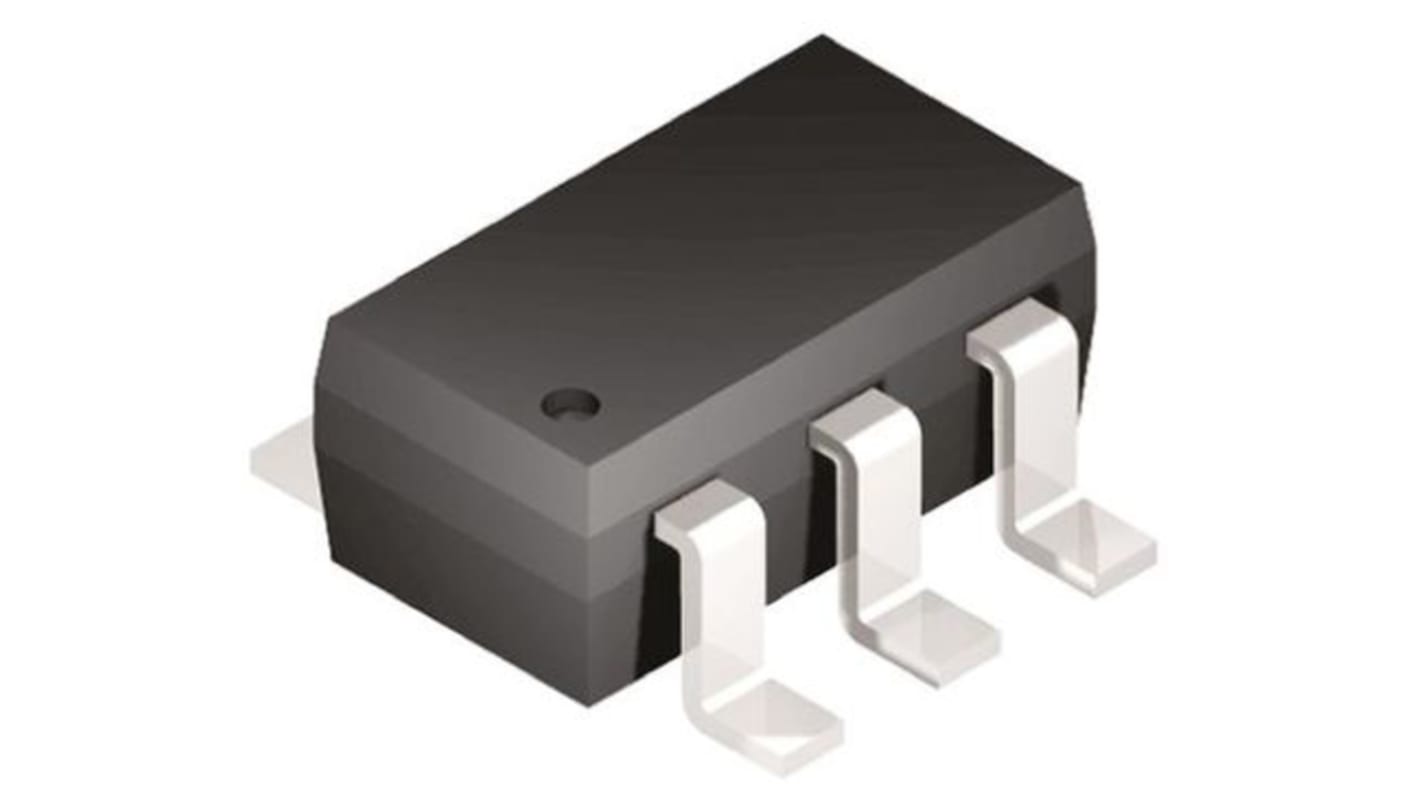

    STMicroelectronics USBLC6-2SC6, Dual-Element Uni-Directional TVS Diode Array, 6-Pin SOT-23

    STMicroelectronics
    RS stock no.:
    920-6266
    Mfr. Part No.:
    USBLC6-2SC6
    Manufacturer:
    STMicroelectronics
    View all TVS Diodes
    15000 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    Add to Basket
    units

    Not Available for premium delivery

    Added

    Price (Excl VAT) Each (On a Reel of 3000)

    R 4.417

    (exc. VAT)

    R 5.08

    (inc. VAT)

    unitsPer unitPer Reel*
    3000 +R 4.417R 13,251.00
    *price indicative
    RS stock no.:
    920-6266
    Mfr. Part No.:
    USBLC6-2SC6
    Manufacturer:
    STMicroelectronics

    Technical data sheets


    Legislation and Compliance


    Product Details

    Serial Data Bus ESD Protection


    Electrostatic Discharge (ESD) prtotection for: DVI, HDMI, IEEE1394, USB, Ethernet & video lines.

    Ultra-low capacitance
    2 and 4 Line ESD Protection
    Complies with Standard IEC61000-4-2 level 4


    Transient Voltage Suppressors (Data Lines)

    Specification

    Attribute
    Value
    Diode ConfigurationComplex Array
    Direction TypeUni-Directional
    Maximum Clamping Voltage17V
    Minimum Breakdown Voltage6V
    Mounting TypeSurface Mount
    Package TypeSOT-23
    Maximum Reverse Stand-off Voltage5V
    Pin Count6
    Maximum Peak Pulse Current5A
    ESD ProtectionYes
    Number of Elements per Chip2
    Minimum Operating Temperature-40 °C
    Dimensions3.05 x 1.75 x 1.3mm
    Maximum Operating Temperature+125 °C
    Maximum Reverse Leakage Current150nA
    Length3.05mm
    Height1.3mm
    Test Current1mA
    Width1.75mm
