STMicroelectronics 2-Element Uni-Directional TVS Diode Array, 6-Pin SOT-666
- RS stock no.:
- 920-6260
- Mfr. Part No.:
- USBLC6-2P6
- Manufacturer:
- STMicroelectronics

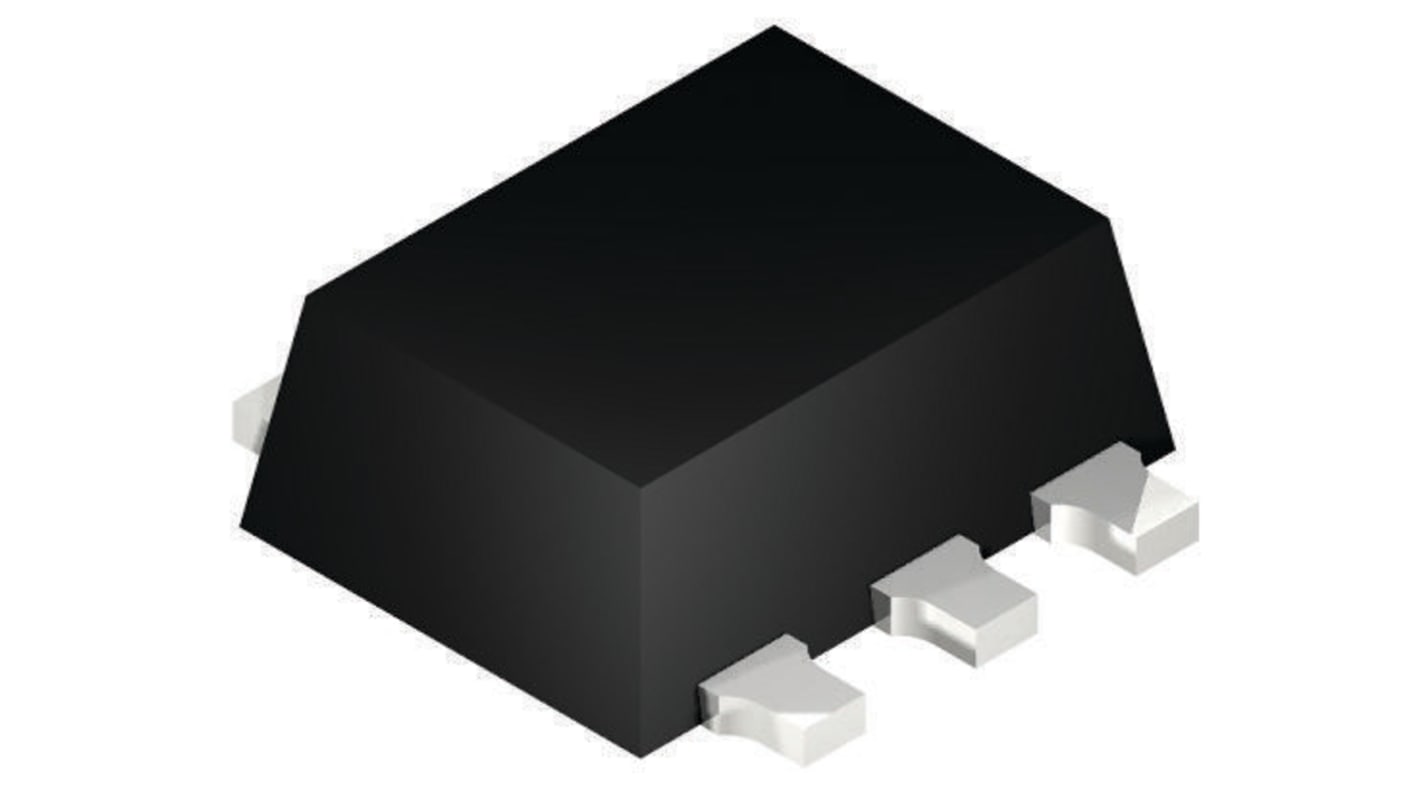

Image representative of range
Subtotal (1 reel of 3000 units)*
R 6 252,00
(exc. VAT)
R 7 191,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 9,000 unit(s) ready to ship from another location
- Plus 18,000 unit(s) shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | R 2.084 | R 6,252.00 |
*price indicative
- RS stock no.:
- 920-6260
- Mfr. Part No.:
- USBLC6-2P6
- Manufacturer:
- STMicroelectronics
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Direction Type | Uni-Directional | |
| Diode Configuration | Complex Array | |
| Product Type | TVS Diode Array | |
| Minimum Breakdown Voltage Vbr | 6V | |
| Mount Type | Surface | |
| Package Type | SOT-666 | |
| Maximum Reverse Stand-off Voltage Vwm | 5V | |
| Pin Count | 6 | |
| Test Current It | 1mA | |
| ESD Protection | Yes | |
| Clamping Voltage VC | 17V | |
| Maximum Peak Pulse Current Ippm | 5A | |
| Minimum Operating Temperature | -40°C | |
| Number of Elements per Chip | 2 | |
| Maximum Operating Temperature | 125°C | |
| Length | 1.7mm | |
| Height | 0.6mm | |
| Standards/Approvals | No | |
| Width | 1.3mm | |
| Series | USBLC6-2 | |
| Automotive Standard | No | |
| Maximum Reverse Leakage Current | 150nA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Direction Type Uni-Directional | ||
Diode Configuration Complex Array | ||
Product Type TVS Diode Array | ||
Minimum Breakdown Voltage Vbr 6V | ||
Mount Type Surface | ||
Package Type SOT-666 | ||
Maximum Reverse Stand-off Voltage Vwm 5V | ||
Pin Count 6 | ||
Test Current It 1mA | ||
ESD Protection Yes | ||
Clamping Voltage VC 17V | ||
Maximum Peak Pulse Current Ippm 5A | ||
Minimum Operating Temperature -40°C | ||
Number of Elements per Chip 2 | ||
Maximum Operating Temperature 125°C | ||
Length 1.7mm | ||
Height 0.6mm | ||
Standards/Approvals No | ||
Width 1.3mm | ||
Series USBLC6-2 | ||
Automotive Standard No | ||
Maximum Reverse Leakage Current 150nA | ||
Serial Data Bus ESD Protection
Electrostatic Discharge (ESD) prtotection for: DVI, HDMI, IEEE1394, USB, Ethernet & video lines.
Ultra-low capacitance
2 and 4 Line ESD Protection
Complies with Standard IEC61000-4-2 level 4
Transient Voltage Suppressors (Data Lines)
