Littelfuse SMBJ440CA 1-Element Bi-Directional TVS Diode, 600 W, 2-Pin DO-214
- RS stock no.:
- 171-4337
- Distrelec Article No.:
- 304-37-039
- Mfr. Part No.:
- SMBJ440CA
- Manufacturer:
- Littelfuse

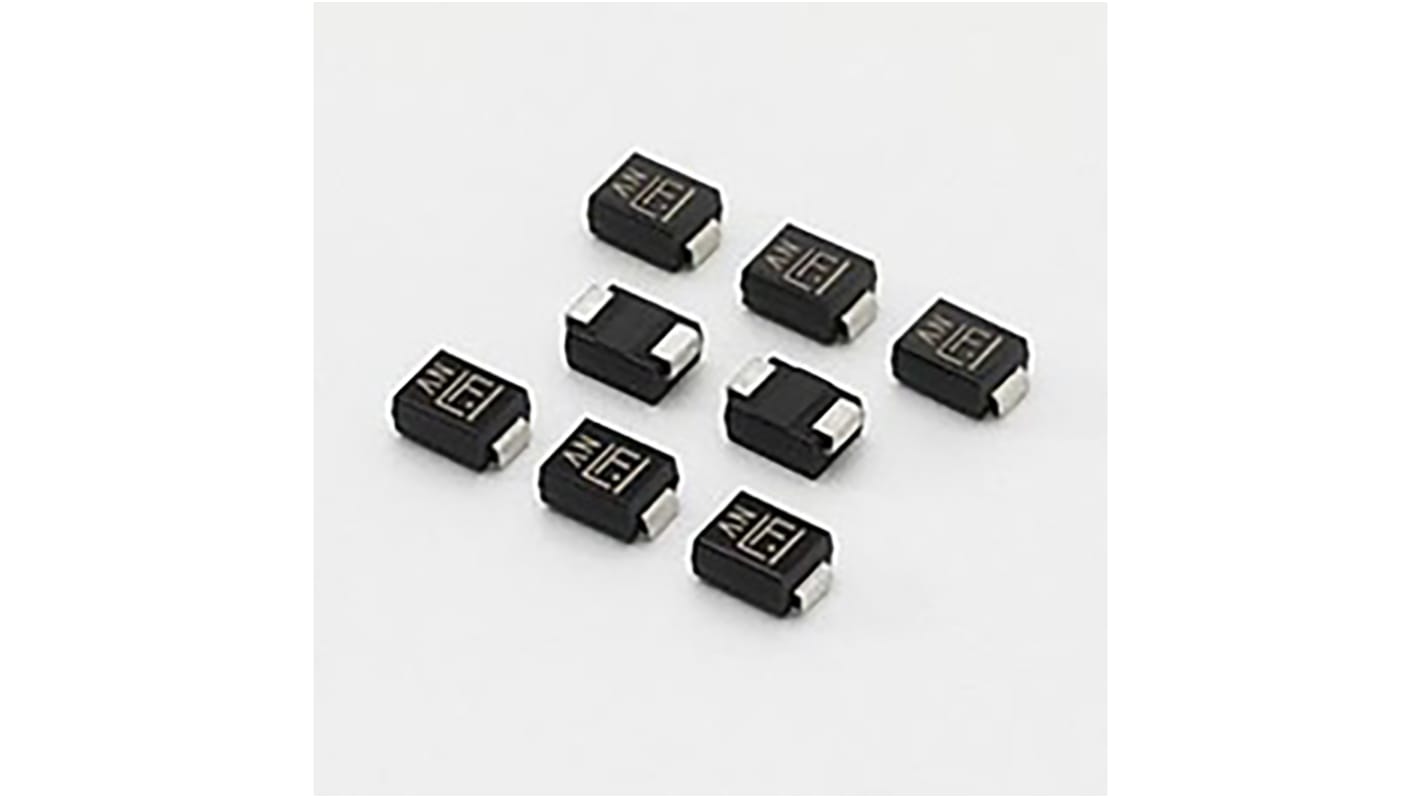

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 20 units)*
R 152,40
(exc. VAT)
R 175,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 3,340 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 980 | R 7.62 | R 152.40 |
| 1000 - 4980 | R 7.429 | R 148.58 |
| 5000 - 10980 | R 7.206 | R 144.12 |
| 11000 + | R 6.918 | R 138.36 |
*price indicative
- RS stock no.:
- 171-4337
- Distrelec Article No.:
- 304-37-039
- Mfr. Part No.:
- SMBJ440CA
- Manufacturer:
- Littelfuse
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Direction Type | Bi-Directional | |
| Product Type | TVS Diode | |
| Diode Configuration | Single | |
| Minimum Breakdown Voltage Vbr | 492V | |
| Mount Type | Surface | |
| Package Type | DO-214 | |
| Maximum Reverse Stand-off Voltage Vwm | 440V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 600W | |
| Clamping Voltage VC | 713V | |
| Test Current It | 1mA | |
| Maximum Peak Pulse Current Ippm | 900mA | |
| Minimum Operating Temperature | -65°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 150°C | |
| Number of Elements per Chip | 1 | |
| Series | SMBJ | |
| Standards/Approvals | No | |
| Length | 4.75mm | |
| Width | 3.94mm | |
| Height | 2.41mm | |
| Maximum Reverse Leakage Current | 1μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Direction Type Bi-Directional | ||
Product Type TVS Diode | ||
Diode Configuration Single | ||
Minimum Breakdown Voltage Vbr 492V | ||
Mount Type Surface | ||
Package Type DO-214 | ||
Maximum Reverse Stand-off Voltage Vwm 440V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 600W | ||
Clamping Voltage VC 713V | ||
Test Current It 1mA | ||
Maximum Peak Pulse Current Ippm 900mA | ||
Minimum Operating Temperature -65°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 150°C | ||
Number of Elements per Chip 1 | ||
Series SMBJ | ||
Standards/Approvals No | ||
Length 4.75mm | ||
Width 3.94mm | ||
Height 2.41mm | ||
Maximum Reverse Leakage Current 1μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The SMBJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Excellent clamping capability
Low incremental surge resistance
Typical IR less than 1μA above 12V
For surface mounted applications to optimize board space
Low profile package
Typical failure mode is short from over-specified voltage or current
Whisker test
Built-in strain relief
Fast response time: typically less than 1.0ps from 0V to BV min
600W peak pulse power capability at 10x1000μs waveform, repetition rate (duty cycles):0.01%
Typical maximum temperature coefficient ΔVBR= 0.1% x VBR@25°C x ΔT
Glass passivated chip junction
High temperature soldering guaranteed: 260°C/40 seconds at terminals
Matte tin lead–free plated
Halogen free
