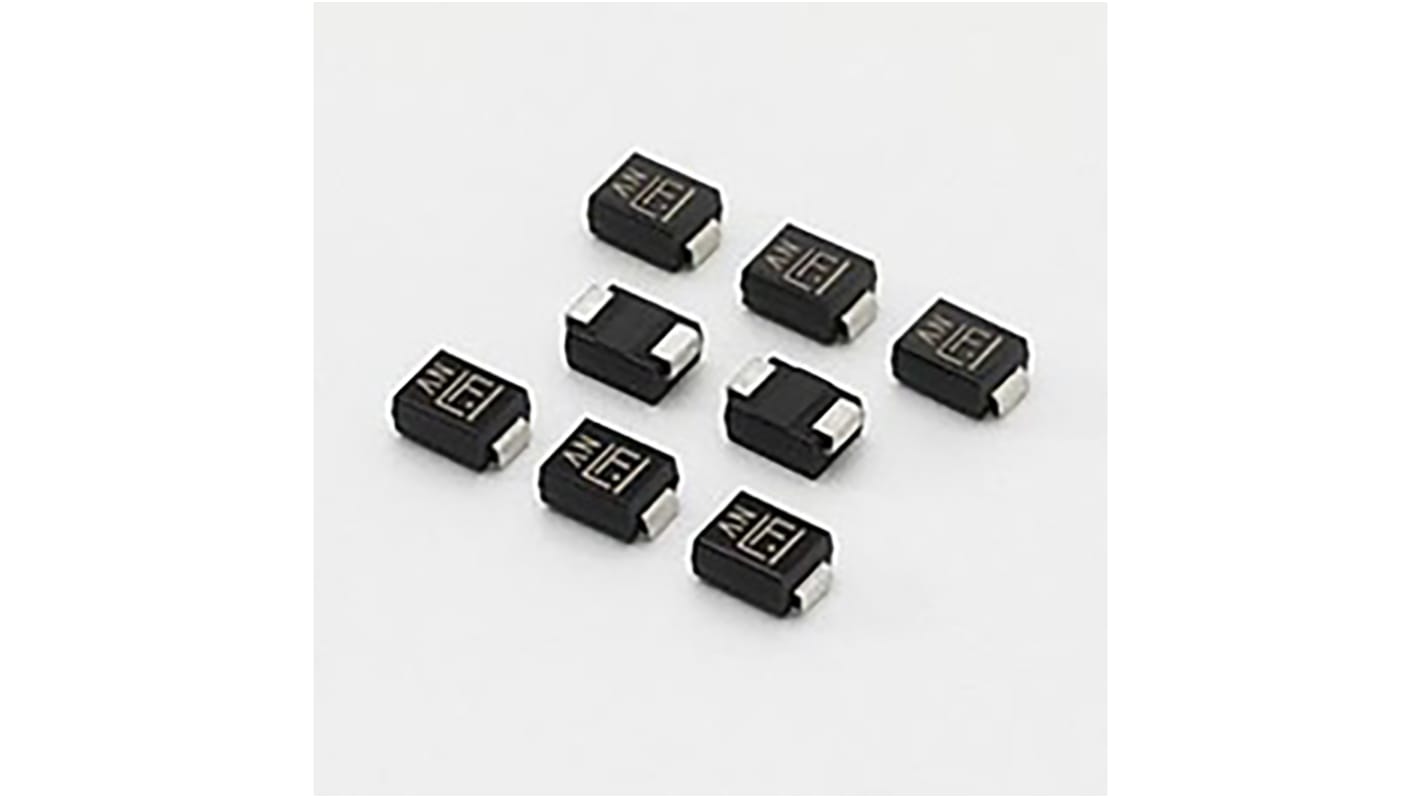

Littelfuse SMBJ440CA, Bi-Directional TVS Diode, 600W, 2-Pin DO-214AA
- RS stock no.:
- 171-4146
- Mfr. Part No.:
- SMBJ440CA
- Manufacturer:
- Littelfuse
Subtotal (1 reel of 3000 units)**
R 11 517 00
(exc. VAT)
R 13 245 00
(inc. VAT)
3000 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Real time stock check
Not Available for premium delivery
Units | Per unit | Per Reel** |
|---|---|---|
| 3000 + | R 3,839 | R 11 517,00 |
**price indicative
- RS stock no.:
- 171-4146
- Mfr. Part No.:
- SMBJ440CA
- Manufacturer:
- Littelfuse
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Diode Configuration | Single | |
| Direction Type | Bi-Directional | |
| Maximum Clamping Voltage | 713V | |
| Minimum Breakdown Voltage | 492V | |
| Mounting Type | Surface Mount | |
| Package Type | DO-214AA (SMB) | |
| Maximum Reverse Stand-off Voltage | 440V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation | 600W | |
| Maximum Peak Pulse Current | 0.9A | |
| ESD Protection | Yes | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 4.75 x 3.94 x 2.41mm | |
| Maximum Reverse Leakage Current | 1µA | |
| Length | 4.75mm | |
| Test Current | 1mA | |
| Height | 2.41mm | |
| ESD Voltage | 30kV | |
| Surge Current Rating | 100A | |
| Width | 3.94mm | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Diode Configuration Single | ||
Direction Type Bi-Directional | ||
Maximum Clamping Voltage 713V | ||
Minimum Breakdown Voltage 492V | ||
Mounting Type Surface Mount | ||
Package Type DO-214AA (SMB) | ||
Maximum Reverse Stand-off Voltage 440V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation 600W | ||
Maximum Peak Pulse Current 0.9A | ||
ESD Protection Yes | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -65 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 4.75 x 3.94 x 2.41mm | ||
Maximum Reverse Leakage Current 1µA | ||
Length 4.75mm | ||
Test Current 1mA | ||
Height 2.41mm | ||
ESD Voltage 30kV | ||
Surge Current Rating 100A | ||
Width 3.94mm | ||
