Dold BC Series DIN Rail Timer Relay, 1-Contact 24 V ac, 0.5 to 20 s, SPDT Switch Configuration
- RS stock no.:
- 358-7156
- Mfr. Part No.:
- BC7932N.81 AC/DC24V + AC230V 0.5-10S
- Manufacturer:
- Dold

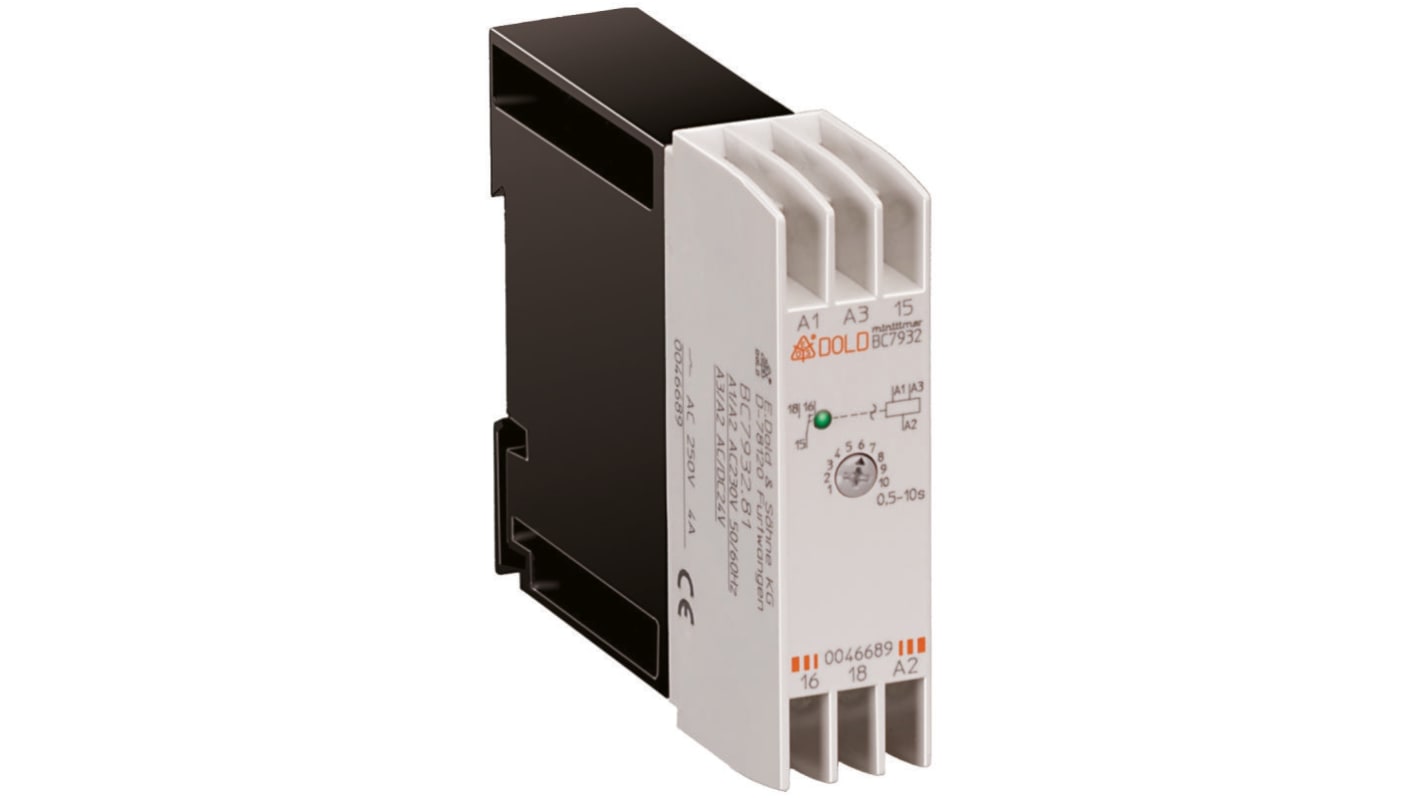

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 1 332,68
(exc. VAT)
R 1 532,58
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | R 1,332.68 |
| 5 - 9 | R 1,299.36 |
| 10 + | R 1,260.38 |
*price indicative
- RS stock no.:
- 358-7156
- Mfr. Part No.:
- BC7932N.81 AC/DC24V + AC230V 0.5-10S
- Manufacturer:
- Dold
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dold | |
| Product Type | Timer Relay | |
| Function | Timer | |
| Mount Type | DIN Rail | |
| Time Range | 0.5 to 20 s | |
| Number of Contacts | 1 | |
| Switching Voltage | 230 V | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Supply AC Voltage | 24 V ac | |
| Timing Adjustment | Screwdriver Slot | |
| Contact Current | 4A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Standards/Approvals | CE | |
| Width | 22.5 mm | |
| Height | 84mm | |
| Length | 97mm | |
| Series | BC | |
| Select all | ||
|---|---|---|
Brand Dold | ||
Product Type Timer Relay | ||
Function Timer | ||
Mount Type DIN Rail | ||
Time Range 0.5 to 20 s | ||
Number of Contacts 1 | ||
Switching Voltage 230 V | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Supply AC Voltage 24 V ac | ||
Timing Adjustment Screwdriver Slot | ||
Contact Current 4A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Standards/Approvals CE | ||
Width 22.5 mm | ||
Height 84mm | ||
Length 97mm | ||
Series BC | ||
- COO (Country of Origin):
- DE
Flasher relay in multi-voltage version (BC7932)
Configurable flasher frequency, pulse time → 1 or 10 s
Pulse time = pause time
Begin with pulse
Repeat accuracy <0.5 % + 10 ms
2-voltage version
LED indicators for contact position
1 changeover
Standards
Complies with DIN EN 61 812-1
