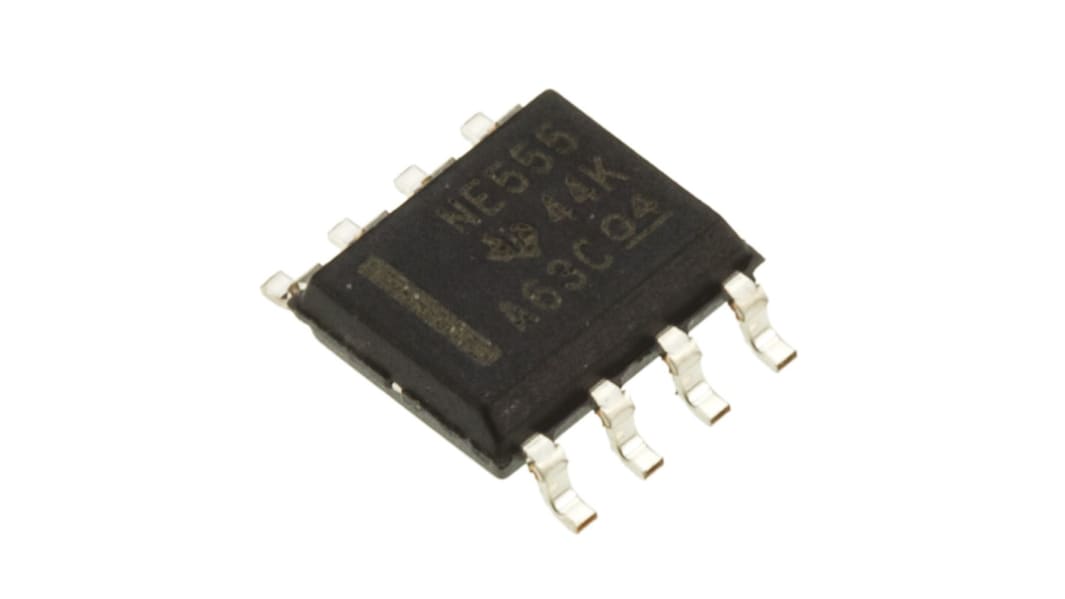

Texas Instruments NE555D, Timer Circuit, 8-Pin SOIC
- RS stock no.:
- 121-8461
- Mfr. Part No.:
- NE555D
- Manufacturer:
- Texas Instruments
1575 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Tube of 75)
R 16,263
(exc. VAT)
R 18,702
(inc. VAT)
| Units | Per unit | Per Tube* |
| 75 - 75 | R 16,263 | R 1 219,725 |
| 150 - 225 | R 15,857 | R 1 189,275 |
| 300 - 675 | R 15,381 | R 1 153,575 |
| 750 - 1425 | R 14,766 | R 1 107,45 |
| 1500 + | R 14,175 | R 1 063,125 |
| *price indicative | ||
- RS stock no.:
- 121-8461
- Mfr. Part No.:
- NE555D
- Manufacturer:
- Texas Instruments
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
555 Timer, Texas Instruments
A range of highly stable precision timing circuits for the generation of accurate time delays or timing pulses. These timers can be operated in monostable (one-shot) or astable (oscillator) mode with timing periods ranging from less than a microsecond to several minutes. In addition to the original bipolar version, low-power CMOS and LinCMOS variants are also available. These devices are capable of longer timing periods and offering a significant reduction in power consumption. The range includes both single (551, 555) and dual (552, 556) versions of the timer.
Timers/Timing Generators
Specification
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Timer Type | Standard |
| Package Type | SOIC |
| Number of Internal Timers | 1 |
| Pin Count | 8 |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 16 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Maximum Quiescent Current | 15mA |
| Maximum Low Level Output Current | 200mA |
| Maximum High Level Output Current | -200mA |
| Dimensions | 4.9 x 3.91 x 1.58mm |
| Length | 4.9mm |
| Width | 3.91mm |
| Height | 1.58mm |
