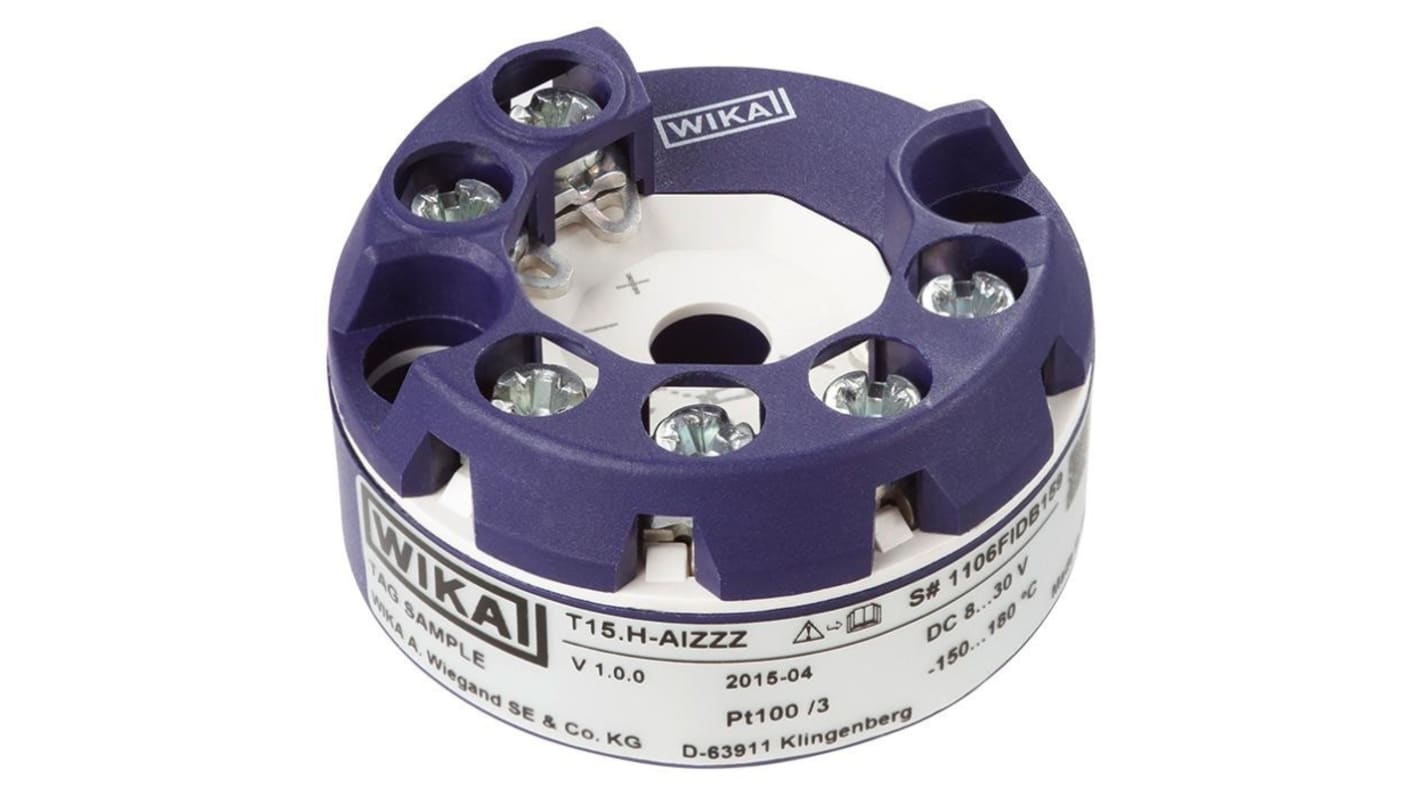

WIKA T15.H Temperature Transmitter PT100 Input 24V, 85 °C, -40 °C
- RS stock no.:
- 269-0361
- Mfr. Part No.:
- 45775498
- Manufacturer:
- WIKA
Subtotal (1 unit)*
R 1 890,45
(exc. VAT)
R 2 174,02
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 1 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,890.45 |
*price indicative
- RS stock no.:
- 269-0361
- Mfr. Part No.:
- 45775498
- Manufacturer:
- WIKA
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WIKA | |
| Product Type | Temperature Transmitter | |
| Input Type | PT100 | |
| Output Type | 4 to 20 mA | |
| Diameter | 33mm | |
| Minimum Temperature Input | -20°C | |
| Maximum Temperature Input | 80°C | |
| Series | T15.H | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | GL 2012 VI Part 7, DIN EN 55011:2010, DIN EN 61326-2-3:2013 NAMUR NE21:2012 | |
| Select all | ||
|---|---|---|
Brand WIKA | ||
Product Type Temperature Transmitter | ||
Input Type PT100 | ||
Output Type 4 to 20 mA | ||
Diameter 33mm | ||
Minimum Temperature Input -20°C | ||
Maximum Temperature Input 80°C | ||
Series T15.H | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals GL 2012 VI Part 7, DIN EN 55011:2010, DIN EN 61326-2-3:2013 NAMUR NE21:2012 | ||
- COO (Country of Origin):
- DE
The WIKA Temperature transmitters are designed for universal use in plant and machine building, and also in the process industry. They offer high accuracy and excellent protection against electromagnetic influences The software enables the error signalling operation, damping, several measuring point descriptions and process adjustment to be stored.
Diverse supervisory functionality
Self monitoring functionality
