Nordic Semiconductor nRF5340-QKAA-R7 ARM Cortex Bluetooth SoC 94-Pin AQFN
- RS stock no.:
- 211-9946
- Mfr. Part No.:
- nRF5340-QKAA-R7
- Manufacturer:
- Nordic Semiconductor

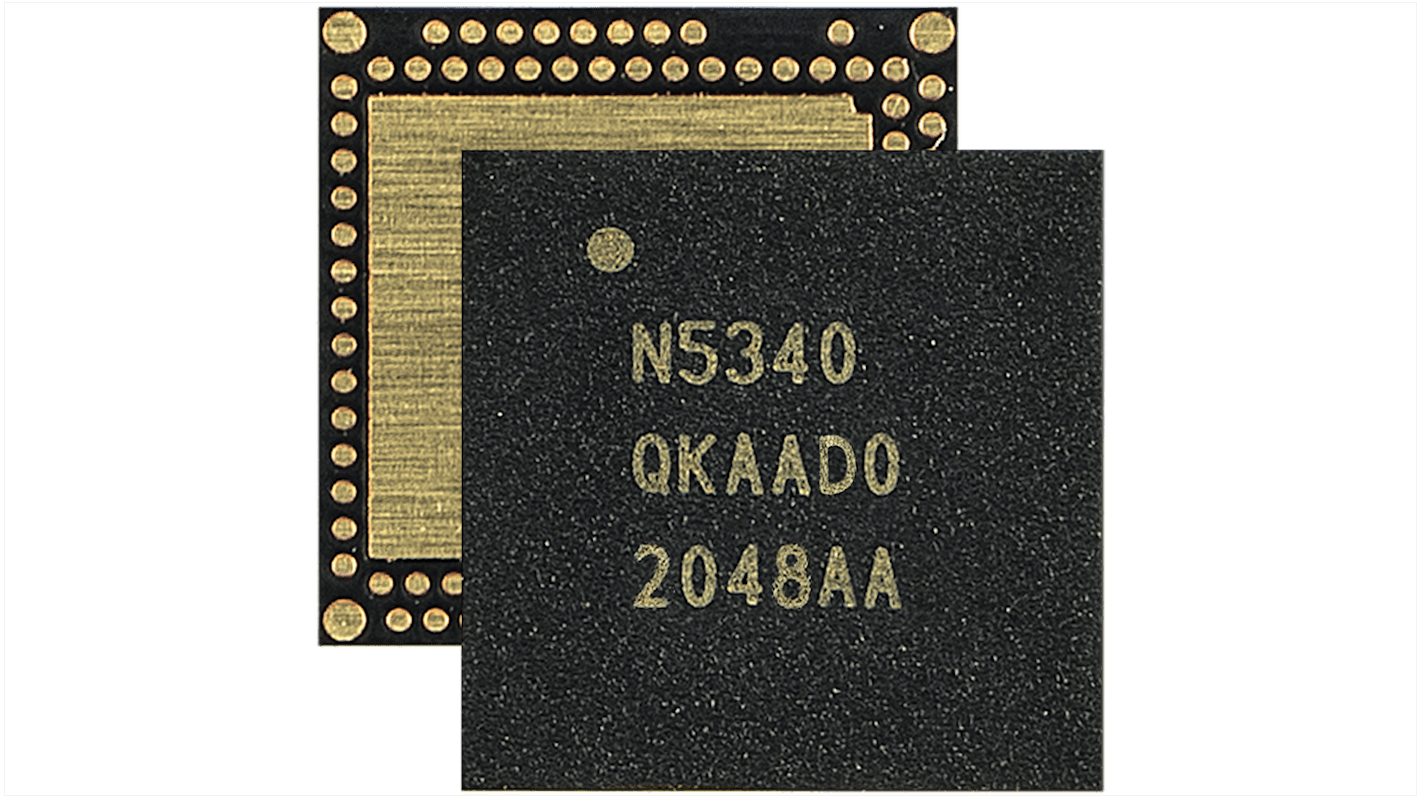

Image representative of range
Subtotal (1 reel of 800 units)*
R 83 771,20
(exc. VAT)
R 96 336,80
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 800 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 800 + | R 104.714 | R 83,771.20 |
*price indicative
- RS stock no.:
- 211-9946
- Mfr. Part No.:
- nRF5340-QKAA-R7
- Manufacturer:
- Nordic Semiconductor
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nordic Semiconductor | |
| Processing Unit | Microprocessor | |
| Product Type | Bluetooth SoC | |
| Technology | ARM Cortex | |
| Mount Type | Surface | |
| Package Type | AQFN | |
| Pin Count | 94 | |
| Clock Frequency | 96MHz | |
| Program Memory Size | 1MB | |
| Program Memory Type | FLASH | |
| Minimum Supply Voltage | 1.7V | |
| Maximum Supply Voltage | 5.5V | |
| Data RAM Type | RAM | |
| Number of I/Os | 48 | |
| Data RAM Size | 256kB | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Length | 7mm | |
| Width | 7mm | |
| Series | nRF5340 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nordic Semiconductor | ||
Processing Unit Microprocessor | ||
Product Type Bluetooth SoC | ||
Technology ARM Cortex | ||
Mount Type Surface | ||
Package Type AQFN | ||
Pin Count 94 | ||
Clock Frequency 96MHz | ||
Program Memory Size 1MB | ||
Program Memory Type FLASH | ||
Minimum Supply Voltage 1.7V | ||
Maximum Supply Voltage 5.5V | ||
Data RAM Type RAM | ||
Number of I/Os 48 | ||
Data RAM Size 256kB | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Length 7mm | ||
Width 7mm | ||
Series nRF5340 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Nordic Semiconductor nRF5340 is a wireless Bluetooth 5.2 system-on-chip with two Arm CortexM33 processors, supporting Bluetooth low energy, Bluetooth mesh, thread and ZigBee wireless protocols. The SoC supports an extensive range of wireless protocols. It also supports protocols such as NFC, ANT, 802.15.4, and 2.4 GHz proprietary. Coupling the high-performance processor with the generous 512 KB RAM, makes the SoC ready for the next generation of advanced wearables and smart watches. It is affordable and has everything needed for development on a single board.
High-performance application processor
Bluetooth Low Energy o Bluetooth 5.2
Bluetooth mesh
Thread, Zig Bee and 802.15.4
Trusted execution with Arm Trust Zone
