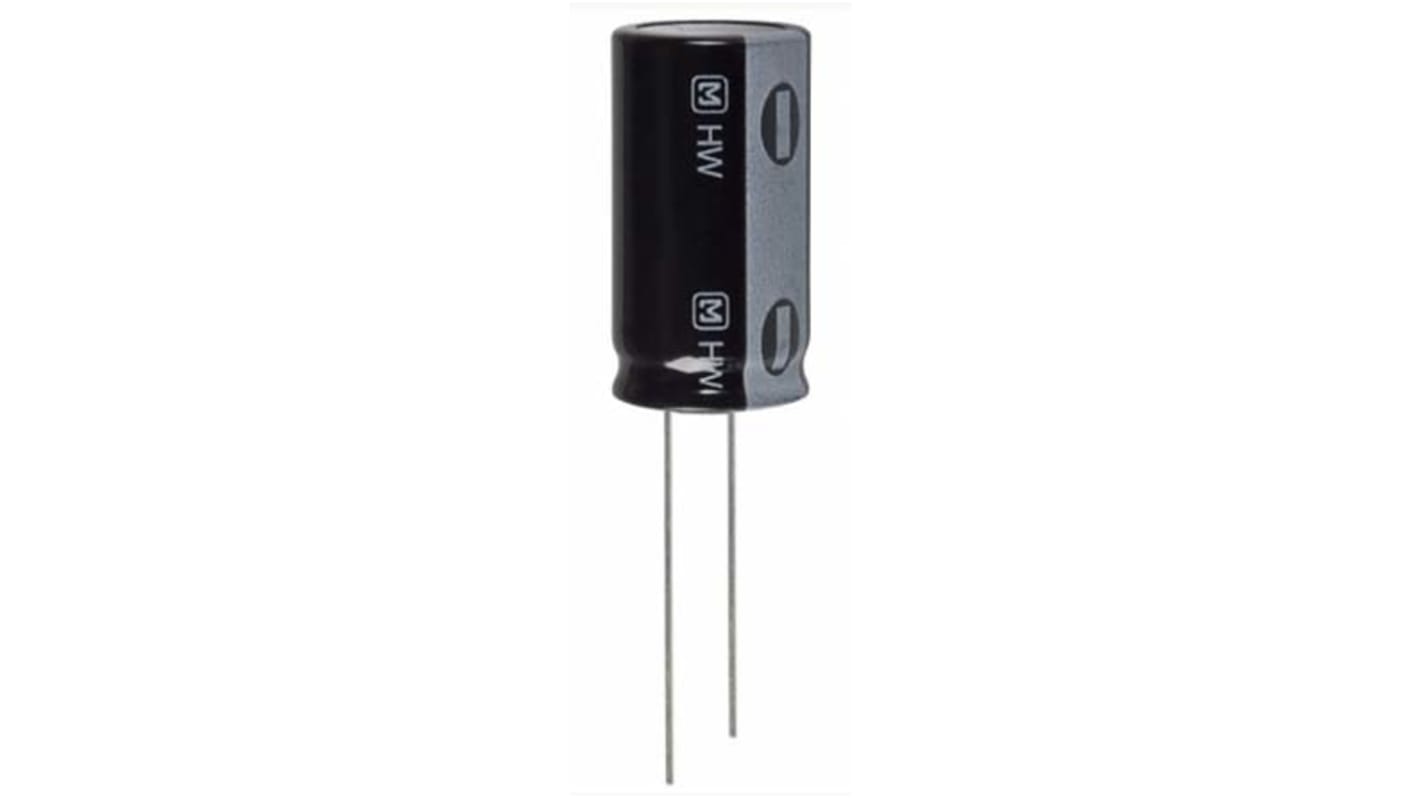

Panasonic 30F Supercapacitor -20 → +40% Tolerance, HW 2.3V dc, Through Hole
- RS stock no.:
- 727-1108
- Mfr. Part No.:
- EECHW0D306
- Manufacturer:
- Panasonic
Stock information currently inaccessible
- RS stock no.:
- 727-1108
- Mfr. Part No.:
- EECHW0D306
- Manufacturer:
- Panasonic
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Capacitance | 30F | |
| Voltage | 2.3V dc | |
| Mounting Type | Through Hole | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +60°C | |
| Diameter | 18mm | |
| Height | 35mm | |
| Dimensions | 18 (Dia.) x 35mm | |
| Lead Pitch | 7.5mm | |
| Equivalent Series Resistance | 0.1Ω | |
| Lifetime | 1000h | |
| Series | HW | |
| Tolerance | -20 → +40% | |
| Lead Spacing | 7.5 mm | |
| Lead Diameter | 0.8mm | |
| Terminal Type | Through Hole | |
| Capacitor Family | Electric Double Layer | |
| Product Diameter | 18mm | |
| Depth | 35mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Capacitance 30F | ||
Voltage 2.3V dc | ||
Mounting Type Through Hole | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Diameter 18mm | ||
Height 35mm | ||
Dimensions 18 (Dia.) x 35mm | ||
Lead Pitch 7.5mm | ||
Equivalent Series Resistance 0.1Ω | ||
Lifetime 1000h | ||
Series HW | ||
Tolerance -20 → +40% | ||
Lead Spacing 7.5 mm | ||
Lead Diameter 0.8mm | ||
Terminal Type Through Hole | ||
Capacitor Family Electric Double Layer | ||
Product Diameter 18mm | ||
Depth 35mm | ||
HW Series
Panasonic HW electric double layer capacitors (gold capacitors) offer a low resistance, high capacitance, miniaturised solution. In comparison to secondary batteries, these supercapacitors have many more charge and discharge cycles.
Organic electrolyte and activated carbon ensures that these capacitors are pollution free
Does not contain lead or polyvinyl chloride
Wound type
Does not contain lead or polyvinyl chloride
Wound type
Applications
Suitable applications include quick charging motor circuits, back up power supplies (UPS) and solar battery operated circuits.
