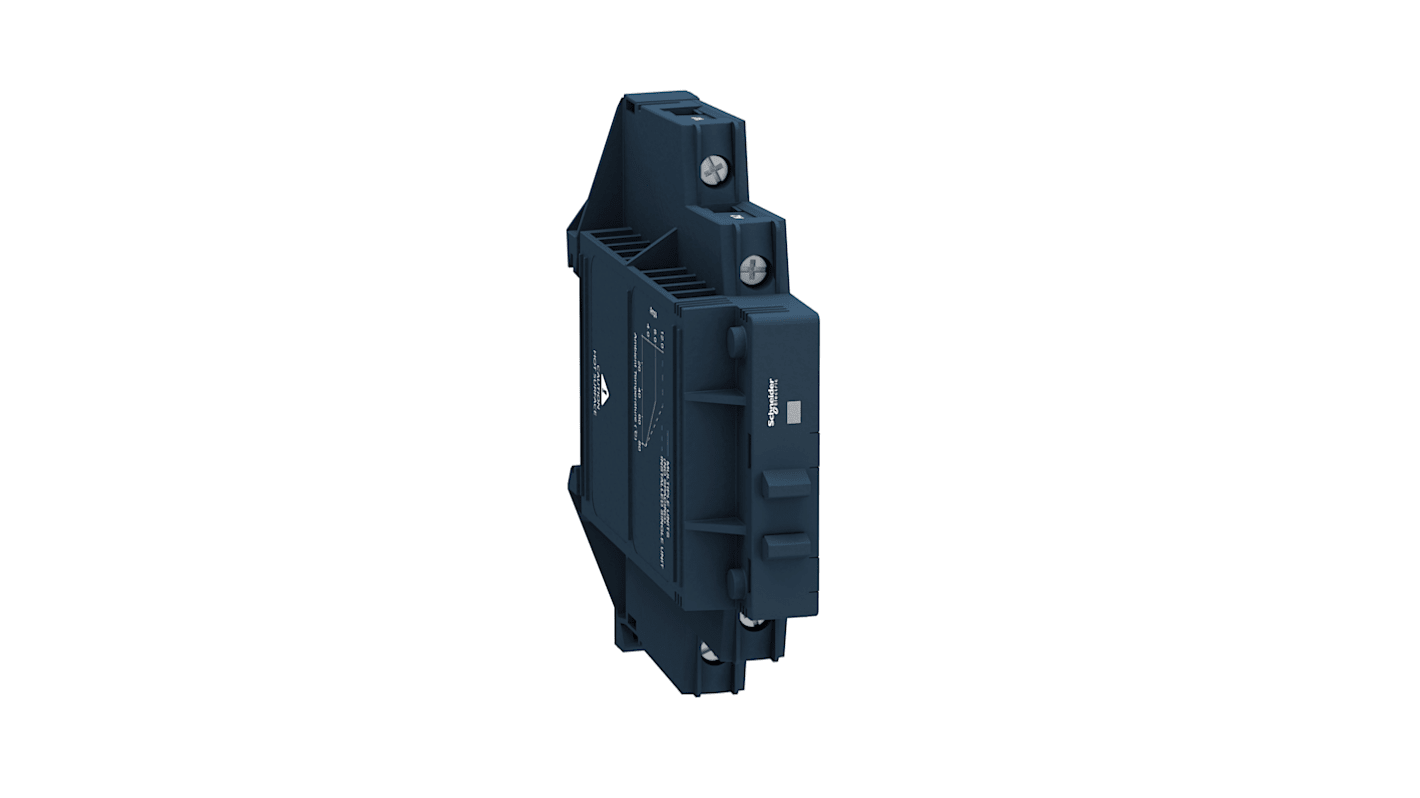

Schneider Electric Harmony Series Solid State Relay, 12 A Load, DIN Rail Mount, 100 V dc Load, 32V dc Control

View all Solid State Relays

Subtotal (1 unit)*

R 1 152,28

(exc. VAT)

R 1 325,12

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 1,152.28

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:
922-1972
Distrelec Article No.:
304-11-449
Mfr. Part No.:
SSM1D312BD
Manufacturer:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Maximum Load Current

12A

Product Type

Solid State Relay

Mount Type

DIN Rail

Maximum Load Voltage

100V dc

Minimum Load Voltage

1V dc

Maximum Control Voltage

32V dc

Minimum Control Voltage

4V dc

Series

Harmony

Terminal Type

Screw

IP Rating

IP20

Contact Configuration

SPST

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

80°C

Standards/Approvals

RoHS

Width

83.7 mm

Height

87.7mm

Length

18.3mm

Better World Product

Yes

Capacitance

10pF

Off State Leakage Current

0.1mA

Output Type

SCR

COO (Country of Origin):
MX

Schneider Electric SSM1D312BD


This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 100V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.

Zelio SSM Solid State Modular Relays


Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSM series DIN Rail mount relays offer a modular IP20 housing design with built in heatsink for optimised operating conditions.

Easy maintenance

IP20

High switching frequency

Resistance to shock, vibration and contamination

Long life span
