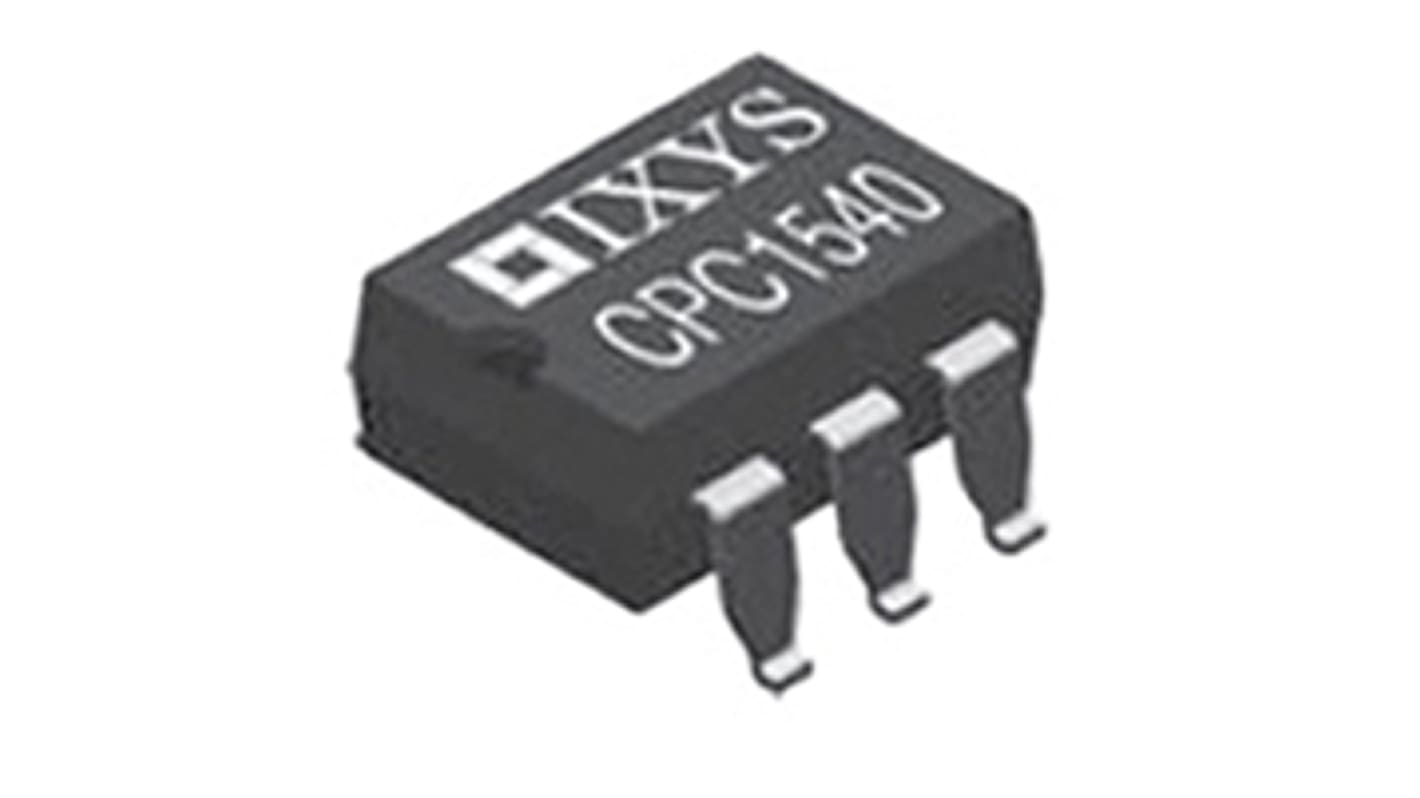

IXYS Solid State Relay, 120 mA, 250 mA Load, Surface Mount, 350 V Load

View all Solid State Relays
Bulk discount available

Subtotal (1 bag of 5 units)*

R 312,45

(exc. VAT)

R 359,30

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
5 - 245R 62.49R 312.45
250 - 495R 60.928R 304.64
500 - 995R 59.10R 295.50
1000 - 2495R 56.736R 283.68
2500 +R 54.466R 272.33

*price indicative

RS stock no.:
906-1063
Mfr. Part No.:
CPC1540GS
Manufacturer:
IXYS
Find similar products by selecting one or more attributes.
Select all

Brand

IXYS

Maximum Load Current

120 mA, 250 mA

Mounting Type

Surface Mount

Maximum Load Voltage

350 V

Switching Type

AC/DC

Number of Poles

1

Terminal Type

PCB Pin

Contact Configuration

SPST

Output Device

MOSFET

Package Style

Small - 6 Pin

Relay Type

OptoMOS

Maximum Turn On Time

2ms

Load Voltage Range

Maximum of 350V

Dimensions

8.382 x 6.35 x 3.302mm

Depth

6.4mm

Standards Met

Certificate TUV B 10 05 49410 006, CSA, EN/IEC, UL File E76270

Length

8.4mm

Special Features

Arc-Free With No Snubbing Circuits, Integrated Active Current-Limit Protection, Low Power Drive Requirement, Machine Insertable, No EMI/RFI Generation, Thermal Shut-Down, Wave Solderable

Maximum Operating Temperature

+85°C

Minimum Operating Temperature

-40°C

Off State Leakage Current

1 μA

Height

3.3mm

Capacitance

14pF

Operating Temperature Range

-40 → +85°C

COO (Country of Origin):
PH

1-Form-A OptoMOS Relay, Integrated Current Limit, CPC


These single pole solid state relays have normally open (1-Form-A) contacts and have an integrated current limit feature. They can be used to replace electromechanical relays while enhancing the robustness of wireline-interface applications. Ideal for the international hook switch telephone market.

They are built using a GaAlAs LED for actuation with MOSFET switches on the outputs and an integrated monolithic die for switch control. The die has a photodiode array, switch control with active current limiting circuitry and thermal supervision. They can be used in both Ac and DC applications with various blocking voltage options.

Potential Applications:
Telephony hook switch
VoIP gateways
IP-PBXs
Satellite and cable set-top boxes
V.92 (and other standard) modems
Fax machines
Voicemail systems
Embedded modems for POS terminals
Automated banking
Remote metering
Vending machines
Security and surveillance
Instrumentation
Medical equipment: Patient/equipment isolation
Aerospace
Industrial controls

Features
Integrated active current-limit protection
Thermal supervision
Guaranteed turn-on: 2mA input control current
3750 Vrms input/output isolation
Small surface mount package
Low drive power requirements (TTL/CMOS compatible)
Arc-free with no snubbing circuits
No EMI/RFI generation

Standards

UL Certified Component: File E76270
CSA Certified Component: Certificate 1172007
EN/IEC 60950-1 Certified Component: TUV Certificate: B 10 05 49410 006


Ixys Solid State Relays, PCB Mount
