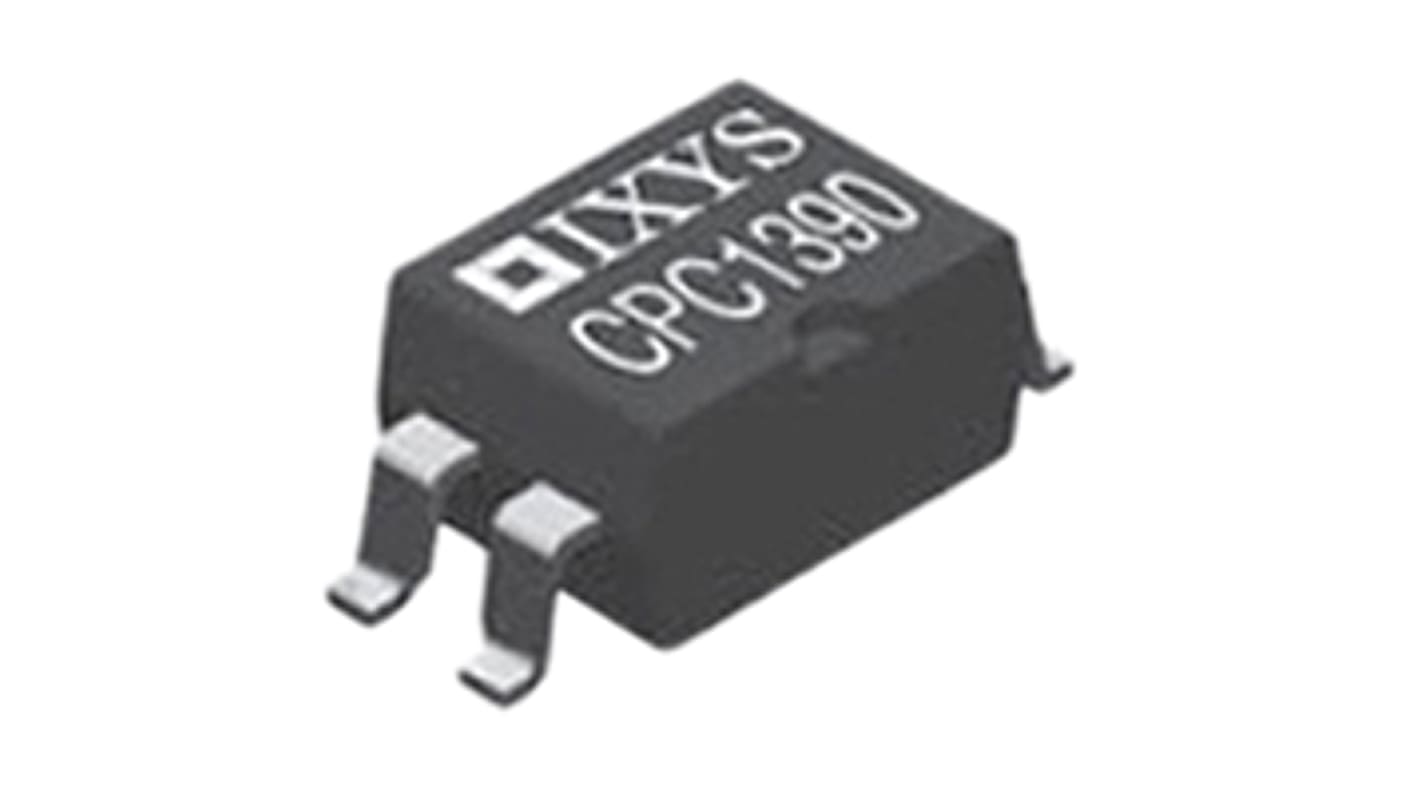

IXYS Solid State Relay, 140 mA Load, Surface Mount
- RS stock no.:
- 906-1057
- Mfr. Part No.:
- CPC1390GR
- Manufacturer:
- IXYS
Subtotal (1 bag of 5 units)**
R 208 12
(exc. VAT)
R 239 34
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit | Per Bag** |
|---|---|---|
| 5 - 245 | R 41,624 | R 208,12 |
| 250 - 495 | R 40,584 | R 202,92 |
| 500 - 995 | R 39,366 | R 196,83 |
| 1000 - 2495 | R 37,792 | R 188,96 |
| 2500 + | R 36,28 | R 181,40 |
**price indicative
- RS stock no.:
- 906-1057
- Mfr. Part No.:
- CPC1390GR
- Manufacturer:
- IXYS
Select all | Attribute | Value |
|---|---|---|
| Manufacturer | IXYS | |
| Maximum Load Current | 140 mA | |
| Mounting Type | Surface Mount | |
| Switching Type | DC | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Contact Configuration | SPST | |
| Output Device | MOSFET | |
| Relay Type | OptoMOS | |
| Package Style | Small - 4 Pin | |
| Maximum Turn On Time | 1ms | |
| Dimensions | 6.35 x 4.572 x 3.3mm | |
| Standards Met | Certificate TUV B 10 05 49410 006, CSA, EN/IEC, UL File E76270 | |
| Special Features | Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable | |
| Operating Temperature Range | -40 → +85°C | |
| Length | 6.4mm | |
| Off State Leakage Current | 1 μA | |
| Height | 3.3mm | |
| Maximum Operating Temperature | +85°C | |
| Capacitance | 13pF | |
| Minimum Operating Temperature | -40°C | |
| Depth | 4.6mm | |
Select all | ||
|---|---|---|
Manufacturer IXYS | ||
Maximum Load Current 140 mA | ||
Mounting Type Surface Mount | ||
Switching Type DC | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Contact Configuration SPST | ||
Output Device MOSFET | ||
Relay Type OptoMOS | ||
Package Style Small - 4 Pin | ||
Maximum Turn On Time 1ms | ||
Dimensions 6.35 x 4.572 x 3.3mm | ||
Standards Met Certificate TUV B 10 05 49410 006, CSA, EN/IEC, UL File E76270 | ||
Special Features Arc-Free With No Snubbing Circuits, Low Drive Power Requirement, Machine Insertable, No EMI/RFI Generation, Wave Solderable | ||
Operating Temperature Range -40 → +85°C | ||
Length 6.4mm | ||
Off State Leakage Current 1 μA | ||
Height 3.3mm | ||
Maximum Operating Temperature +85°C | ||
Capacitance 13pF | ||
Minimum Operating Temperature -40°C | ||
Depth 4.6mm | ||
