Toshiba Solid State Relay, Surface Mount, 32 V Control
- RS stock no.:
- 885-1443
- Mfr. Part No.:
- TLP3554(F)
- Manufacturer:
- Toshiba

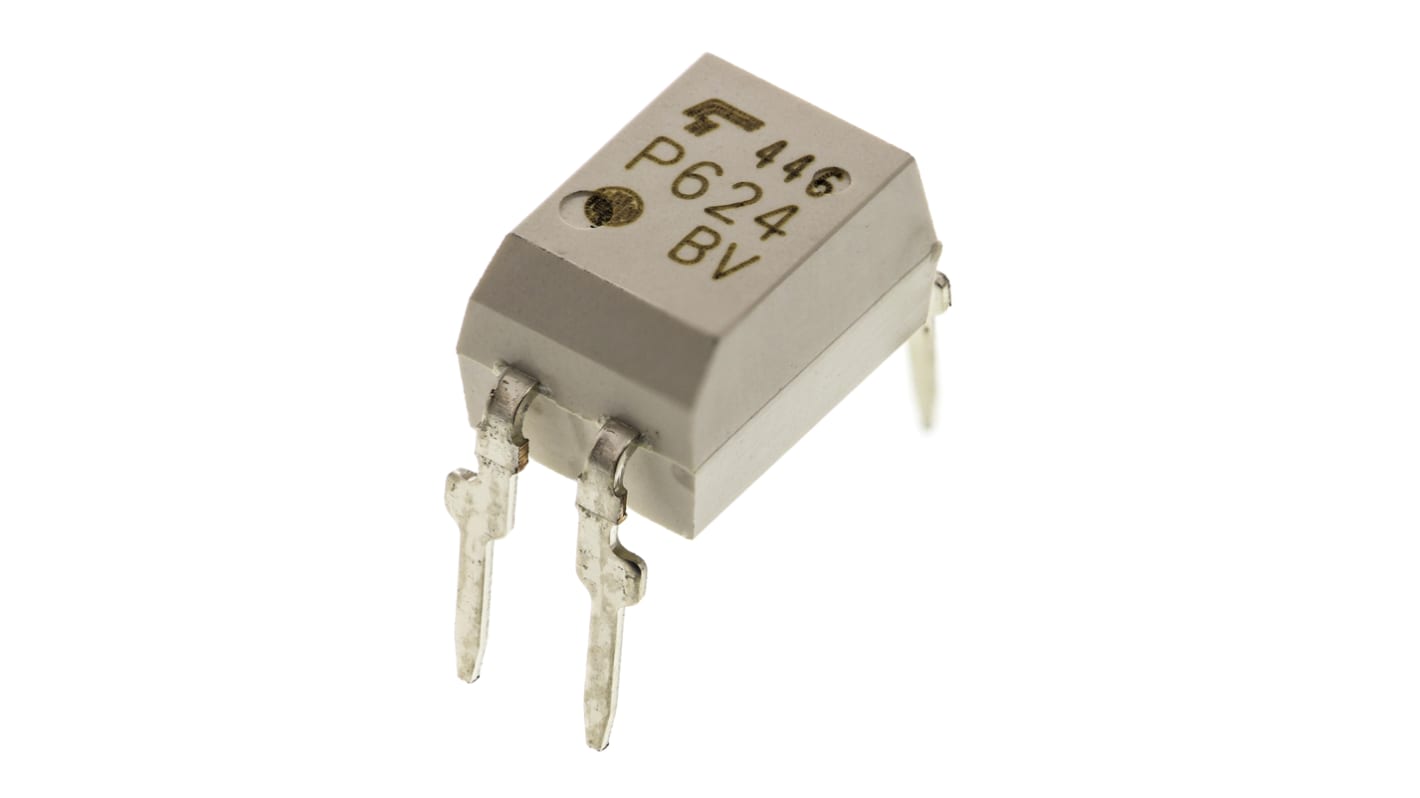

Image representative of range
Bulk discount available
Subtotal (1 pack of 2 units)*
R 95,00
(exc. VAT)
R 109,24
(inc. VAT)
Add 34 units to get free delivery
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | R 47.50 | R 95.00 |
| 10 - 18 | R 46.315 | R 92.63 |
| 20 - 48 | R 44.925 | R 89.85 |
| 50 - 98 | R 43.13 | R 86.26 |
| 100 + | R 41.405 | R 82.81 |
*price indicative
- RS stock no.:
- 885-1443
- Mfr. Part No.:
- TLP3554(F)
- Manufacturer:
- Toshiba
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Mounting Type | Surface Mount | |
| Maximum Control Voltage | 32 V | |
| Switching Type | AC/DC | |
| Control Voltage Range | Maximum of 32 V | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Contact Configuration | SPST | |
| Output Device | MOSFET | |
| Relay Type | PhotoMOSFET | |
| Package Style | DIP | |
| Maximum Turn On Time | 5ms | |
| Dimensions | 4.58 x 6.4 x 3.65mm | |
| Capacitance | 300pF | |
| Maximum Operating Temperature | +85°C | |
| Depth | 6.4mm | |
| Minimum Operating Temperature | -40°C | |
| Length | 4.6mm | |
| Operating Temperature Range | -40 → +85°C | |
| Off State Leakage Current | 1 μA | |
| Height | 3.7mm | |
| Special Features | High Current Photorelays | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Mounting Type Surface Mount | ||
Maximum Control Voltage 32 V | ||
Switching Type AC/DC | ||
Control Voltage Range Maximum of 32 V | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Contact Configuration SPST | ||
Output Device MOSFET | ||
Relay Type PhotoMOSFET | ||
Package Style DIP | ||
Maximum Turn On Time 5ms | ||
Dimensions 4.58 x 6.4 x 3.65mm | ||
Capacitance 300pF | ||
Maximum Operating Temperature +85°C | ||
Depth 6.4mm | ||
Minimum Operating Temperature -40°C | ||
Length 4.6mm | ||
Operating Temperature Range -40 → +85°C | ||
Off State Leakage Current 1 μA | ||
Height 3.7mm | ||
Special Features High Current Photorelays | ||
- COO (Country of Origin):
- TH
Photorelay, MOSFET Output, Toshiba
Optocouplers, Toshiba
