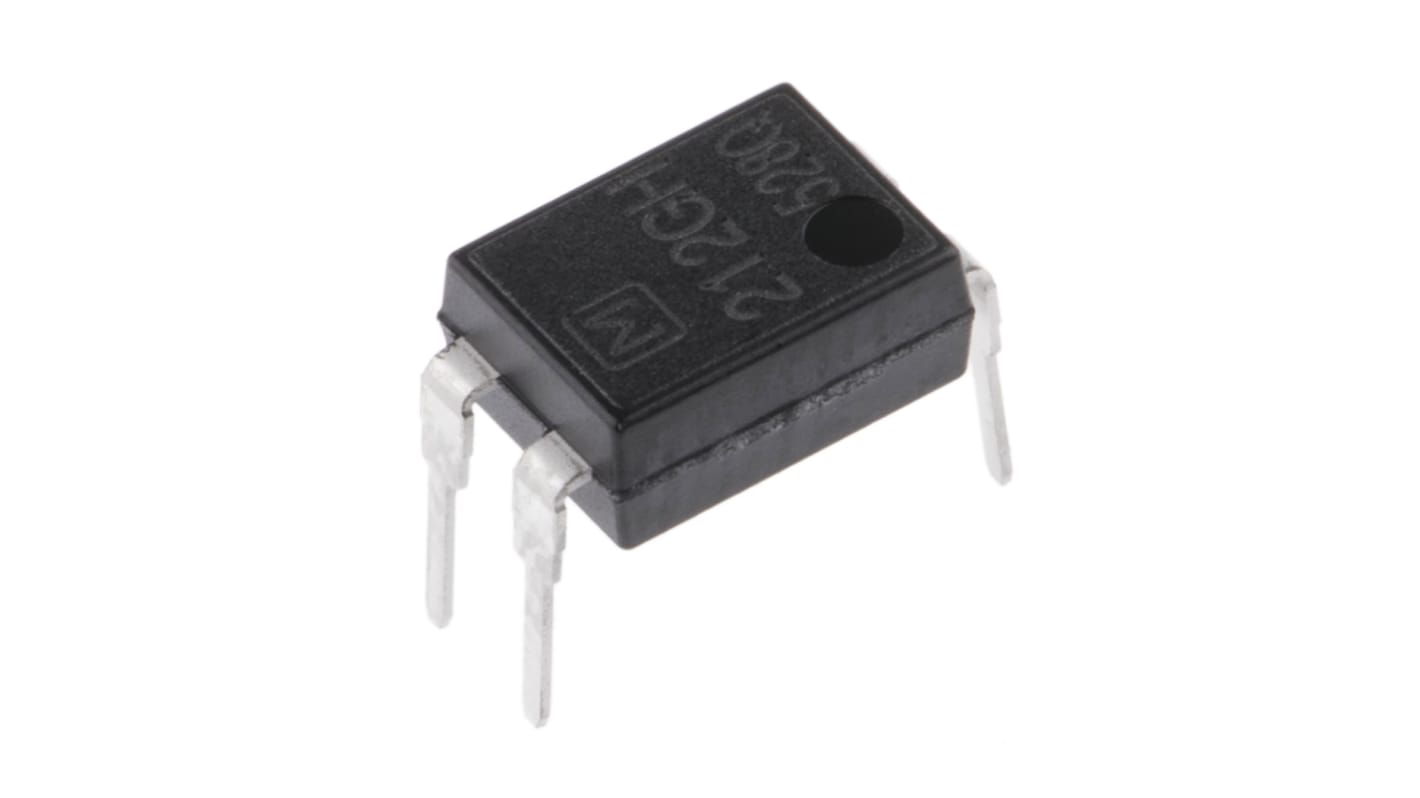

Panasonic GU Series Solid State Relay, 1.1 A Load, Surface, Through Hole Mount, 60 V Load, 5V dc Control
- RS stock no.:
- 811-3261
- Distrelec Article No.:
- 137-40-328
- Mfr. Part No.:
- AQY212GH
- Manufacturer:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
R 72,58
(exc. VAT)
R 83,47
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 2,339 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | R 72.58 |
| 25 - 49 | R 70.77 |
| 50 - 99 | R 68.65 |
| 100 - 249 | R 65.90 |
| 250 + | R 63.26 |
*price indicative
- RS stock no.:
- 811-3261
- Distrelec Article No.:
- 137-40-328
- Mfr. Part No.:
- AQY212GH
- Manufacturer:
- Panasonic
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 1.1A | |
| Mount Type | Surface, Through Hole | |
| Maximum Load Voltage | 60V | |
| Minimum Control Voltage | 1.5V | |
| Maximum Control Voltage | 5V dc | |
| Series | GU | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPST | |
| On State Resistance | 0.7Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | DIP | |
| Width | 3.2 mm | |
| Height | 3.2mm | |
| Standards/Approvals | RoHS | |
| Length | 6.4mm | |
| Capacitance | 1.5pF | |
| Off State Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Solid State Relay | ||
Maximum Load Current 1.1A | ||
Mount Type Surface, Through Hole | ||
Maximum Load Voltage 60V | ||
Minimum Control Voltage 1.5V | ||
Maximum Control Voltage 5V dc | ||
Series GU | ||
Terminal Type Through Hole | ||
Contact Configuration SPST | ||
On State Resistance 0.7Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Package Type DIP | ||
Width 3.2 mm | ||
Height 3.2mm | ||
Standards/Approvals RoHS | ||
Length 6.4mm | ||
Capacitance 1.5pF | ||
Off State Leakage Current 1μA | ||
- COO (Country of Origin):
- TH
AQY Series
Controls low-level analog signals
Low-level off-state leakage current of max. 1 μA
Low on-resistance -AQY22 Series
Approvals
UL, C-UL (not for the AQY22 Series)
