Panasonic Solid State Relay, 550 mA Load, PCB Mount, 60 V Load, 1.5 V Control
- RS stock no.:
- 699-6578
- Distrelec Article No.:
- 137-40-327
- Mfr. Part No.:
- AQY212EH
- Manufacturer:
- Panasonic

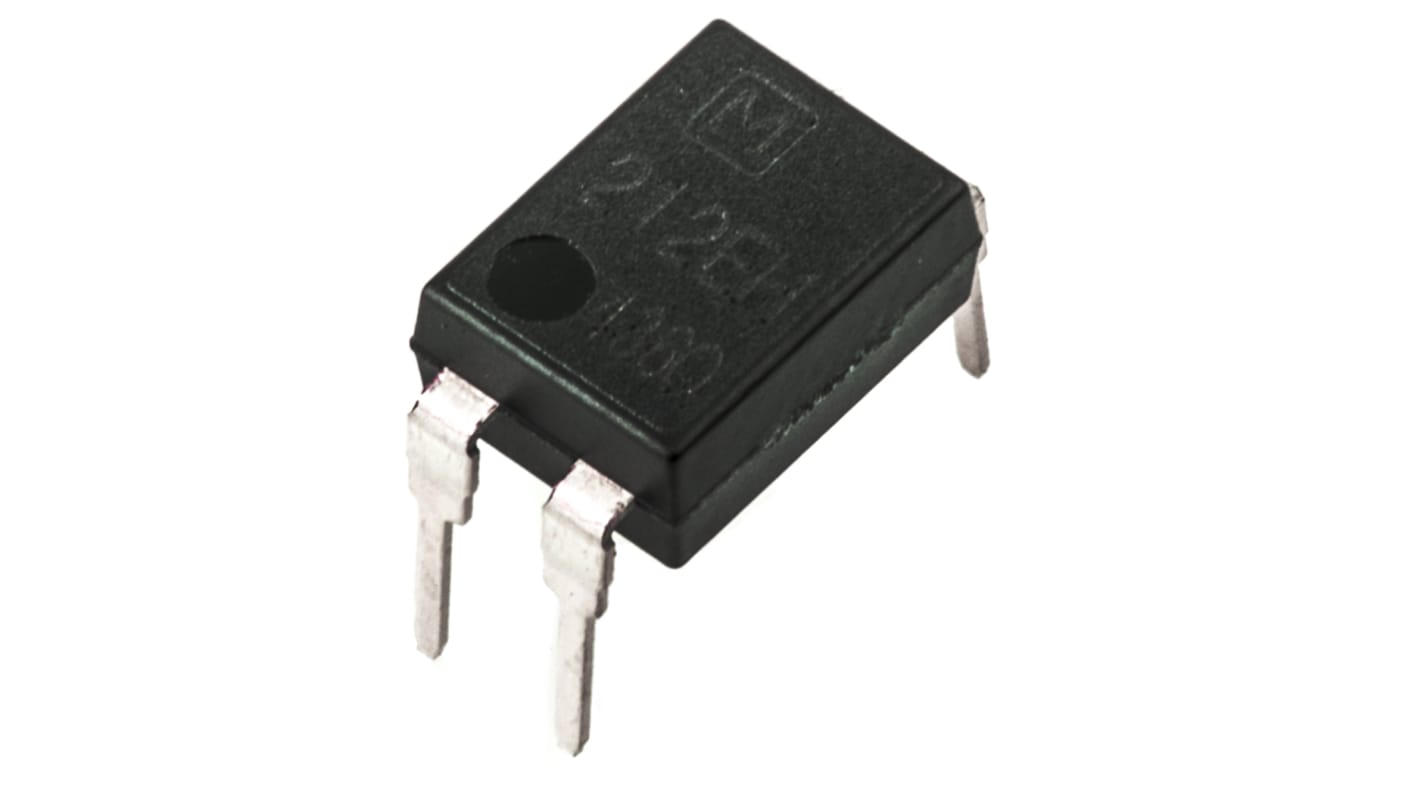

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 94,96
(exc. VAT)
R 109,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 346 unit(s) ready to ship from another location
- Plus 780 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | R 94.96 |
| 15 - 49 | R 92.59 |
| 50 - 99 | R 89.81 |
| 100 - 249 | R 86.22 |
| 250 + | R 82.77 |
*price indicative
- RS stock no.:
- 699-6578
- Distrelec Article No.:
- 137-40-327
- Mfr. Part No.:
- AQY212EH
- Manufacturer:
- Panasonic
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Maximum Load Current | 550 mA | |
| Mounting Type | PCB Mount | |
| Maximum Load Voltage | 60 V | |
| Minimum Control Voltage | 1.14 V | |
| Maximum Control Voltage | 1.5 V | |
| Control Voltage Range | 1.14 → 1.5 V | |
| Minimum Load Current | 0.55 A | |
| Contact Configuration | SPST | |
| Terminal Type | Through Hole | |
| Output Device | PhotoMOS | |
| Package Style | DIP4 | |
| Maximum Turn On Time | 4ms | |
| Load Voltage Range | 60V | |
| Dimensions | 4.78 x 6.4 x 3.2mm | |
| Depth | 6.4mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85°C | |
| Off State Leakage Current | 1 μA | |
| Height | 3.2mm | |
| Length | 4.8mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Maximum Load Current 550 mA | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 60 V | ||
Minimum Control Voltage 1.14 V | ||
Maximum Control Voltage 1.5 V | ||
Control Voltage Range 1.14 → 1.5 V | ||
Minimum Load Current 0.55 A | ||
Contact Configuration SPST | ||
Terminal Type Through Hole | ||
Output Device PhotoMOS | ||
Package Style DIP4 | ||
Maximum Turn On Time 4ms | ||
Load Voltage Range 60V | ||
Dimensions 4.78 x 6.4 x 3.2mm | ||
Depth 6.4mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
Off State Leakage Current 1 μA | ||
Height 3.2mm | ||
Length 4.8mm | ||
AQY Series
Controls low-level analog signals
Low-level off-state leakage current of max. 1 μA
Low on-resistance -AQY22 Series
Low-level off-state leakage current of max. 1 μA
Low on-resistance -AQY22 Series
Approvals
UL, C-UL (not for the AQY22 Series)
