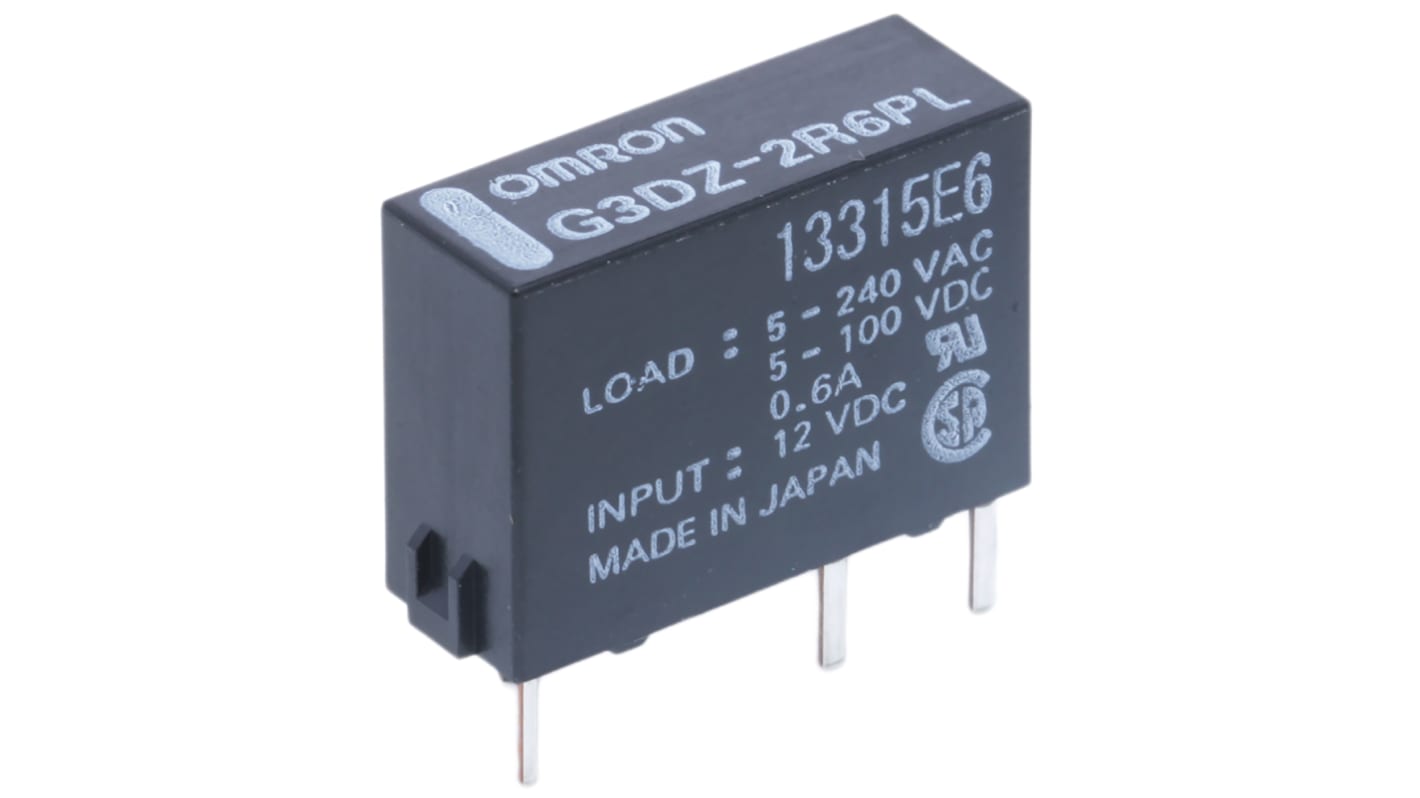

Omron G3DZ Series Solid State Relay, 0.6 A Load, PCB Mount, 264 V ac Load, 12 V dc Control

RS stock no.:: 365-0636
Mfr. Part No.:: G3DZ-2R6PL DC12
Manufacturer:: Omron

Omron G3DZ Series Solid State Relay, 0.6 A Load, PCB Mount, 264 V ac Load, 12 V dc Control

Bulk discount available

Subtotal (1 unit)**

R 529 04

(exc. VAT)

R 608 40

(inc. VAT)

8 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Not Available for premium delivery

Units	Per unit
1 - 14	R 529,04
15 - 49	R 515,81
50 +	R 500,34

**price indicative

RS stock no.:: 365-0636
Mfr. Part No.:: G3DZ-2R6PL DC12
Manufacturer:: Omron

G3DZ SSR

These PCB mount MOSFET power relays have a maximum switching current of 0.6A and are suitable for switching full and half wave alternating currents.

SSR identical in size to the G6D series (stk no 512-9320 etc) with a max. ac/dc switching current of 0.6A
Suitable for switching full and half-wave alternating current
10μA maximum output leakage current
Output ON resistance: 2.4Ω
2500Vac dielectric strength between input and output
Input resistor and varistor incorporated
Single Phase connection line to neutral
See stk no 376-717 for a suitable PCB socket
Operating temperature range -30 to +85°C

Omron G3DZ-2R6PL-DC12 MOFSET PCB Mount Power Solid State Relay.

The G3DZ solid State relay is the same size as the G6D with a 0.6 A maximum AC/DC current.

• Switching 0.6 A at 240 V ac or 100 V dc.
• 10μA maximum current leakage (between open terminals).
• With an input resistor
• Overvoltage absorption circuit (AC/DC models only).
• Full and half wave rectified. AC current switchable.
• PCB Mount
• MOSFET
• With input resistance.
• Standard models available with UL and CSA certification.
• RoHS Compliant.

Features and Benefits of the MOSFET PCB Mount Solid State Relay.

• Isolation Photo-voltage coupler.
• No zero cross function.
• No indicators.
• Rated output load 0.6 A, 5 to 240 v ac, 5 to 100 V dc.
• Rated input voltage 12 V dc
• Operating voltage 9.6 to 14.4 V dc
• Must release voltage 1 V dc min.
• Impedance 2 kΩ +20%.
• Must release voltage 1 V dc.
• Must operate voltage 9.6 V dc maximum.
• Rated load voltage 5 to 240 V ac, 5 to 100 V dc.
• Load voltage range 3 to 264 V ac, 3 to 125 V dc.
• Load current AC = 100 μ to 0.6 A, DC = 10 μ to 0.6 A.
• Inrush current 6 A (10 ms).

G3DZ-2R6PL-DC12 MOFSET PCB Mount Solid State Relay Added Features.

• Operate time 6 ms max.
• Release time 10 ms max.
• Output ON-resistance 2.4 Ω max.
• OFF State leakage 10 μ max (125 V dc), 100 μ max (200 V ac).
• Vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Shock resistance 1000 m/s².
• Weight 3.1 g approx.

Safety Notes.

• Do not clean or solder the PCB when the Solid State Relay is in the socket.
• Reverse surge voltage – If this is put on the input terminals insert a diode parallel to the input terminal. DO NOT impose a reversed voltage of more than 3 V.
• Terminal material has a high heat induction so any automatic or manual soldering should be achieved with 10 seconds at 260°C.
• Always when fitting a socket ensure it is matched correctly and insert pushing vertically (pressure straight down).

Suitable Isolation Socket.

• Part number P6D-04P. Stock number 376717.

Attribute	Value
Maximum Load Current	0.6 A
Mounting Type	PCB Mount
Maximum Load Voltage	264 V ac
Maximum Control Voltage	12 V dc
Control Voltage Range	9.6 → 14.4 V dc
Minimum Load Current	100 μA
Terminal Type	Through Hole
Contact Configuration	SPST
Output Device	MOSFET
Maximum Turn On Time	6ms
Series	G3DZ
Load Voltage Range	3 → 125 V dc, 3 → 264V ac
Dimensions	18.5 x 6.5 x 12.5mm
Height	12.5mm
Minimum Operating Temperature	-30°C
Operating Temperature Range	-30 → +85°C
Length	18.5mm
Off State Leakage Current	10 μA
Maximum Operating Temperature	+85°C
Depth	6.5mm
