Omron G3VM Series Solid State Relay, 700 mA Load, Surface Mount, 60 V Load, 1.4V Control

RS stock no.:: 277-8719
Mfr. Part No.:: G3VM-61VY4(TR05)
Manufacturer:: Omron

Omron G3VM Series Solid State Relay, 700 mA Load, Surface Mount, 60 V Load, 1.4V Control

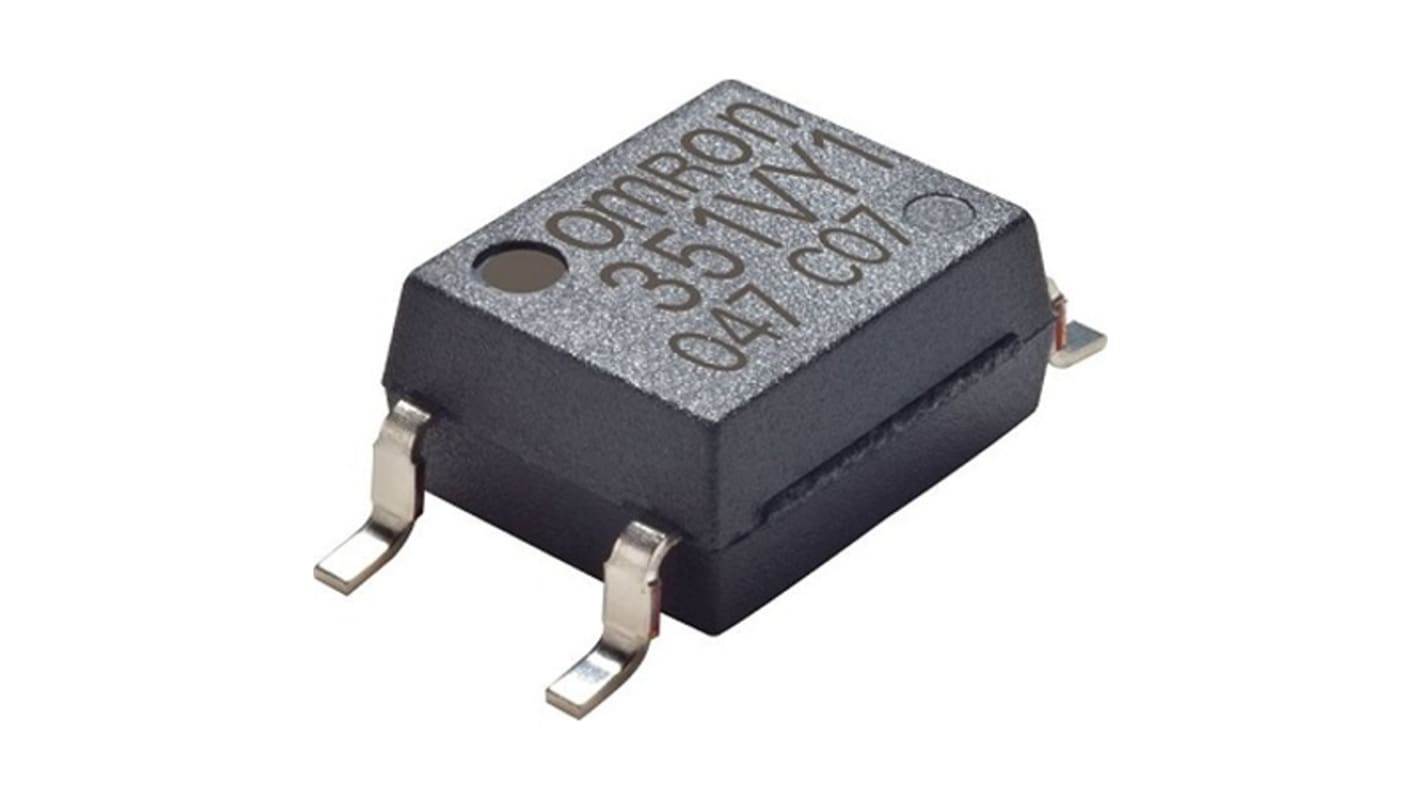

Image representative of range

Bulk discount available

Subtotal (1 unit)*

R 106,27

(exc. VAT)

R 122,21

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 - 4	R 106.27
5 - 9	R 103.61
10 - 49	R 100.50
50 - 99	R 96.48
100 +	R 92.62

*price indicative

RS stock no.:: 277-8719
Mfr. Part No.:: G3VM-61VY4(TR05)
Manufacturer:: Omron

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Maximum Load Current	700mA
	Product Type	Solid State Relay
	Mount Type	Surface
	Maximum Load Voltage	60V
	Minimum Load Voltage	60V
	Maximum Control Voltage	1.4V
	Minimum Control Voltage	1.1V
	Series	G3VM
	Terminal Type	Surface Mount
	Contact Configuration	1a (SPST-NO)
	On State Resistance	0.15Ω
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Width	2.54mm
	Length	0.5mm
	Height	2.1mm
	Standards/Approvals	UL Recognised
	Capacitance	0.8pF
	Output Type	Relay

	Select all
	Brand Omron
	Maximum Load Current 700mA
	Product Type Solid State Relay
	Mount Type Surface
	Maximum Load Voltage 60V
	Minimum Load Voltage 60V
	Maximum Control Voltage 1.4V
	Minimum Control Voltage 1.1V
	Series G3VM
	Terminal Type Surface Mount
	Contact Configuration 1a (SPST-NO)
	On State Resistance 0.15Ω
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Width 2.54mm
	Length 0.5mm
	Height 2.1mm
	Standards/Approvals UL Recognised
	Capacitance 0.8pF
	Output Type Relay

COO (Country of Origin):: JP

Omron G3VM Series Solid State Relay, 700mA Maximum Load Current, 60V Maximum Load Voltage - G3VM-61VY4(TR05)

This solid state relay is a key component for efficient electronic switching in various applications. Designed for surface mounting, it operates effectively within a load current of up to 700 mA and a voltage range of 1.1 to 60V. With a Compact design and robust temperature range from -40 to +85°C, this relay is Ideal for demanding environments.

Features & Benefits

• Designed as a low control voltage relay for efficient operation
• Utilises MOSFET technology for reliable performance
• Achieves a maximum turn-on time of just 6ms
• Operates effectively as a high voltage relay
• Compact design suitable for space-constrained use

Applications

• Used for automation in industrial control systems
• Can be used in consumer electronics for switching tasks
• Ideal for requiring reliable electronic switching devices
• Utilised in various control circuits within electrical systems

What current handling capabilities does this relay support?

The relay can handle a maximum load current of 700 mA, making it suitable for a variety of applications where moderate current is required.

How does the relay perform in extreme temperatures?

It operates effectively within a temperature range of -40 to +85°C, ensuring reliability in both cold and hot environments.

What is the significance of the low off-state leakage current?

An off-state leakage current of just 2 nA enhances the efficiency of circuits, reducing unnecessary power consumption and increasing overall system reliability.
