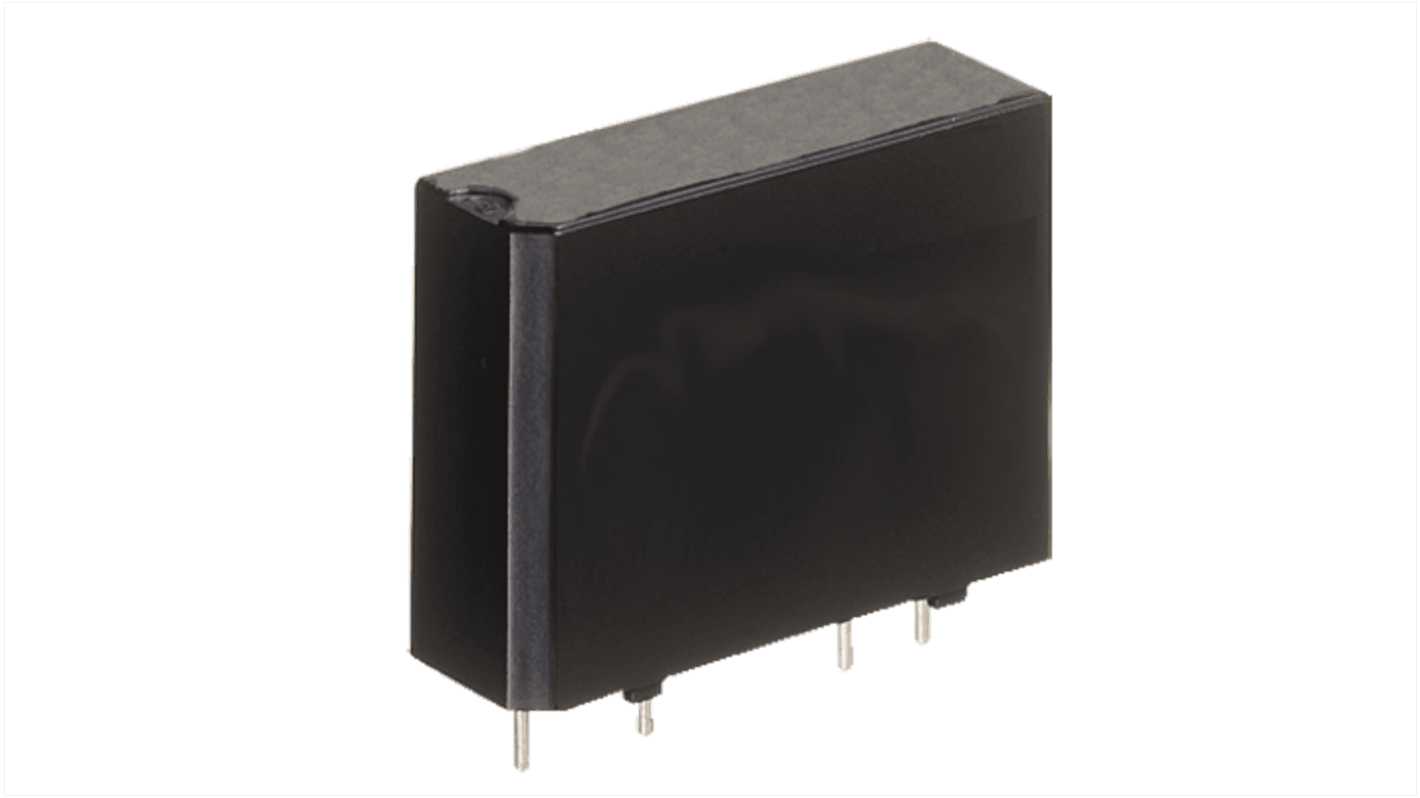

Panasonic AQ-3 Series Solid State Relay, 3 A Load, PCB Mount, 250 V rms Load
- RS stock no.:
- 247-4149
- Mfr. Part No.:
- AQ3A2-ZT4/32VDC
- Manufacturer:
- Panasonic
Bulk discount available
Subtotal (1 box of 20 units)*
R 5 841,66
(exc. VAT)
R 6 717,90
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 20 | R 292.083 | R 5,841.66 |
| 40 - 80 | R 284.781 | R 5,695.62 |
| 100 - 180 | R 276.237 | R 5,524.74 |
| 200 + | R 265.188 | R 5,303.76 |
*price indicative
- RS stock no.:
- 247-4149
- Mfr. Part No.:
- AQ3A2-ZT4/32VDC
- Manufacturer:
- Panasonic
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Maximum Load Current | 3 A | |
| Mounting Type | PCB Mount | |
| Maximum Load Voltage | 250 V rms | |
| Minimum Load Voltage | 75 V rms | |
| Switching Type | Zero Cross Relay Switching | |
| Range | AQ-3 | |
| Minimum Load Current | 50 mA | |
| Contact Configuration | SPST | |
| Output Device | Phototriac | |
| Series | AQ-3 | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Maximum Load Current 3 A | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 250 V rms | ||
Minimum Load Voltage 75 V rms | ||
Switching Type Zero Cross Relay Switching | ||
Range AQ-3 | ||
Minimum Load Current 50 mA | ||
Contact Configuration SPST | ||
Output Device Phototriac | ||
Series AQ-3 | ||
- COO (Country of Origin):
- JP
The Panasonic AQ series of solid state relays, this relay is rated for 3 A and load voltage of 75 to 250 Vrms. This is a zero-crossing AC type device. The rated control voltage for this relay is 4 to 32 Vdc.
Vertical types with SIL terminal arrangement
Built-in snubber circuit prevents malfunction due to noise
Built-in snubber circuit prevents malfunction due to noise
