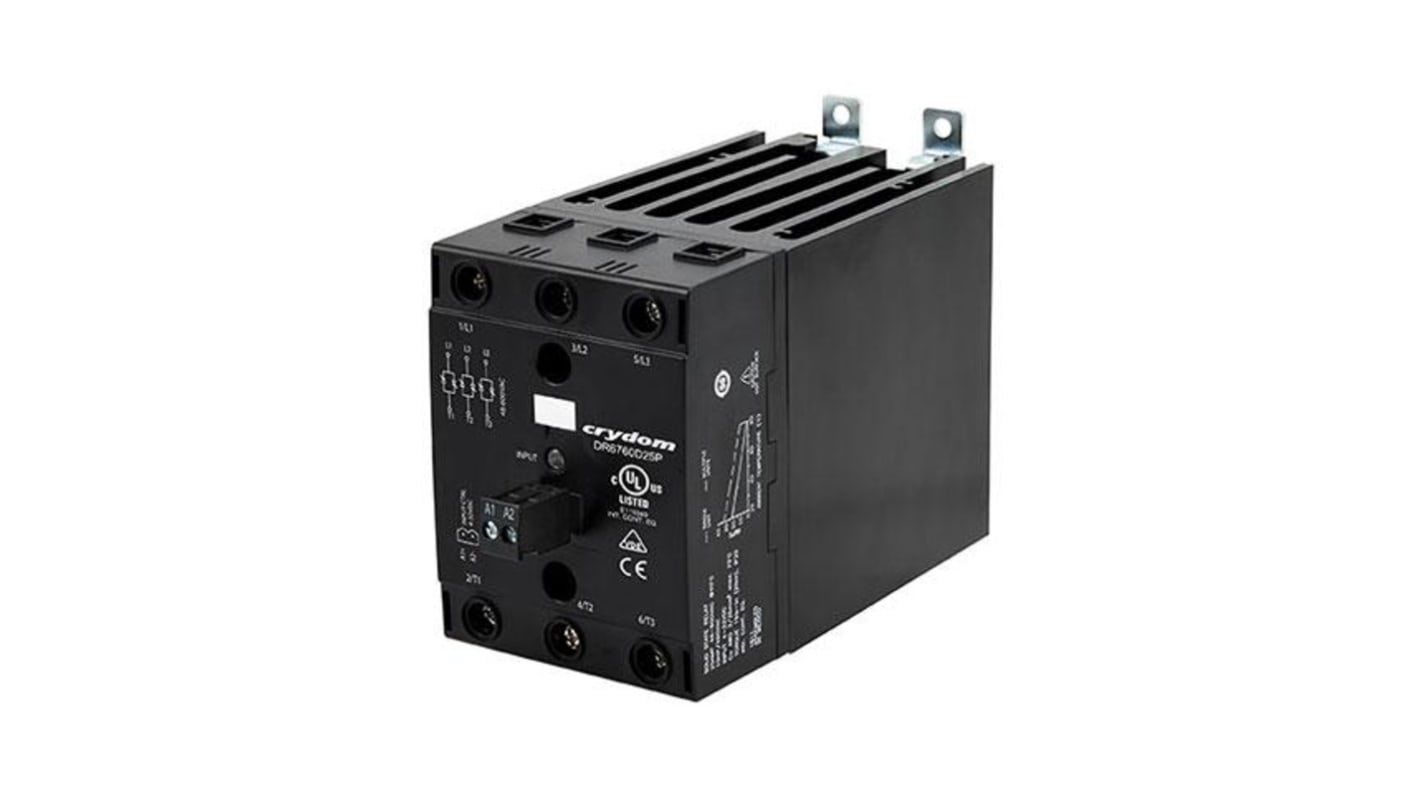

Sensata / Crydom DR67 Series Solid State Relay, 30 A Load, DIN Rail Mount, 600 V ac Load, 280V ac/dc Control

RS stock no.:: 227-0892
Distrelec Article No.:: 301-64-129
Mfr. Part No.:: DR6760A30RP
Manufacturer:: Sensata / Crydom

Sensata / Crydom DR67 Series Solid State Relay, 30 A Load, DIN Rail Mount, 600 V ac Load, 280V ac/dc Control

Subtotal (1 unit)*

R 5 470,77

(exc. VAT)

R 6 291,39

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	R 5,470.77

*price indicative

RS stock no.:: 227-0892
Distrelec Article No.:: 301-64-129
Mfr. Part No.:: DR6760A30RP
Manufacturer:: Sensata / Crydom

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	30A
	Product Type	Solid State Relay
	Mount Type	DIN Rail
	Maximum Load Voltage	600V ac
	Minimum Load Voltage	48V ac
	Minimum Control Voltage	90V ac/dc
	Maximum Control Voltage	280V ac/dc
	Series	DR67
	Terminal Type	Cage Clamp
	IP Rating	IP20
	Contact Configuration	3PST
	Switching Function	Zero Voltage Turn-On Switching
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	80°C
	Length	147.8mm
	Height	91.8mm
	Width	67.5 mm
	Standards/Approvals	CE, cULus, EMC, GBT 26572-2011, IEC, RoHS, VDE
	Output Type	AC
	Capacitance	25pF
	Off State Leakage Current	1mA

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 30A
	Product Type Solid State Relay
	Mount Type DIN Rail
	Maximum Load Voltage 600V ac
	Minimum Load Voltage 48V ac
	Minimum Control Voltage 90V ac/dc
	Maximum Control Voltage 280V ac/dc
	Series DR67
	Terminal Type Cage Clamp
	IP Rating IP20
	Contact Configuration 3PST
	Switching Function Zero Voltage Turn-On Switching
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 80°C
	Length 147.8mm
	Height 91.8mm
	Width 67.5 mm
	Standards/Approvals CE, cULus, EMC, GBT 26572-2011, IEC, RoHS, VDE
	Output Type AC
	Capacitance 25pF
	Off State Leakage Current 1mA

The Sensata / Crydom DR45 is a powerful and compact solid state relay in a DIN rail 45mm wide package offering mounting flexibility (on panel or DIN rail) and convenient input connection options. It has 48 to 600 VAC operating voltage and 30 A rated load current.

Built-in overvoltage protection

Contactor configuration

AC or DC control

Sensata / Crydom DR67 Series Solid State Relay, 30 A Load, DIN Rail Mount, 600 V ac Load, 280V ac/dc Control
