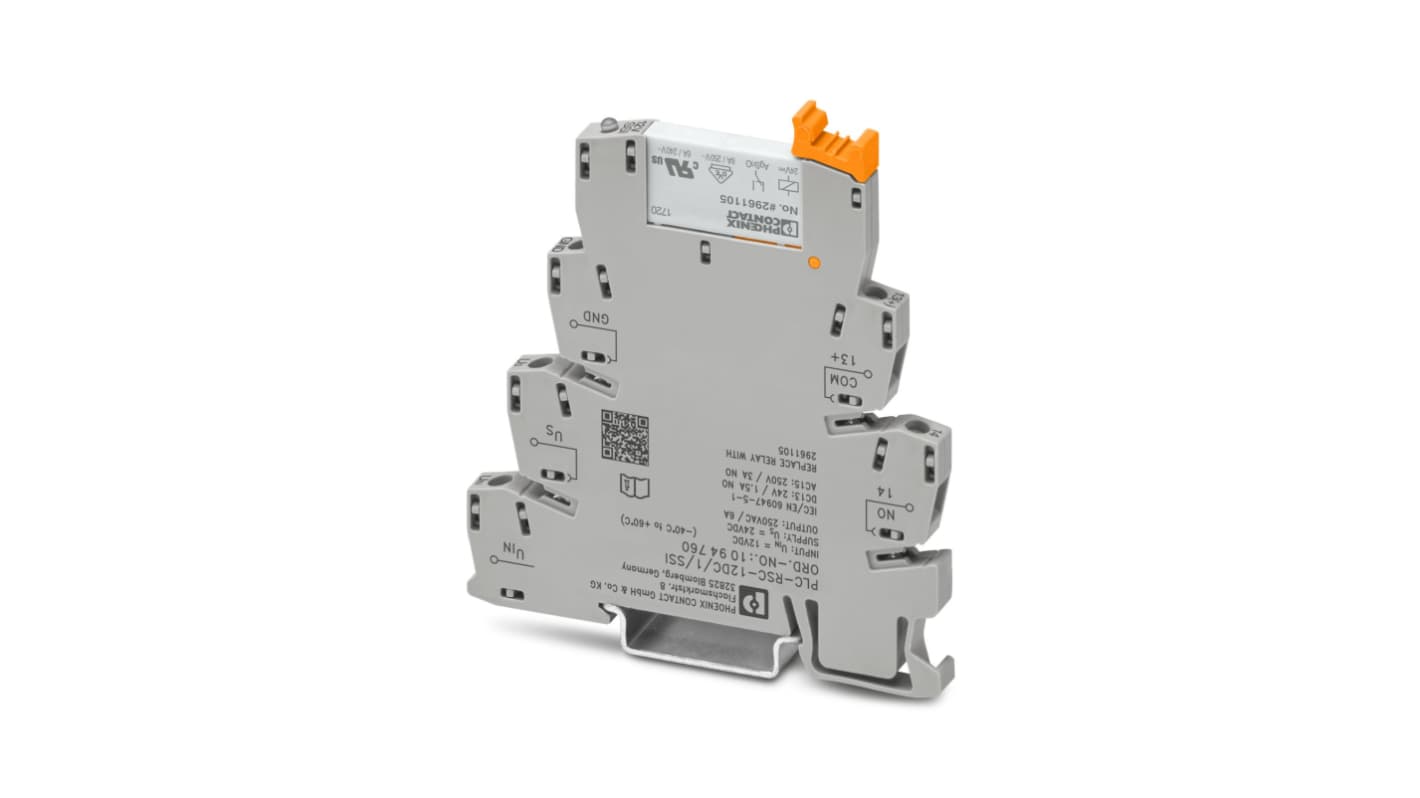

Phoenix Contact PLC-RSC Series Solid State Relay, 6 A Load, DIN Rail Mount, 12 V Load, 14.4V Control
- RS stock no.:
- 220-5710
- Mfr. Part No.:
- 1094760
- Manufacturer:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
R 969.928
(exc. VAT)
R 1,115.417
(inc. VAT)
- RS stock no.:
- 220-5710
- Mfr. Part No.:
- 1094760
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 6A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 12V | |
| Minimum Load Voltage | 250V | |
| Maximum Control Voltage | 14.4V | |
| Minimum Control Voltage | 9.6V | |
| Series | PLC-RSC | |
| Terminal Type | Screw | |
| IP Rating | IP54, IP20 | |
| Contact Configuration | 1 NO | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 6.2mm | |
| Height | 80mm | |
| Standards/Approvals | EMC:class A product | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Solid State Relay | ||
Maximum Load Current 6A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 12V | ||
Minimum Load Voltage 250V | ||
Maximum Control Voltage 14.4V | ||
Minimum Control Voltage 9.6V | ||
Series PLC-RSC | ||
Terminal Type Screw | ||
IP Rating IP54, IP20 | ||
Contact Configuration 1 NO | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Length 6.2mm | ||
Height 80mm | ||
Standards/Approvals EMC:class A product | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PLC-INTERFACE relay system is the high-performance interface between the controller and system peripherals. PLC-INTERFACE provides you with a comprehensive range of highly compact, plug-in relays and solid-state relays. This includes extensive accessories and system cabling.
Your choice of easy connection technology: screw or Push-in connection technology
Time-saving potential distribution, thanks to plug-in bridges
Just 6.2 mm wide with plug-in relays and solid-state relays
PLC relay system plus system cabling for fast, plug-in connection between the controller and relay
Highly compact relay modules are a part of the COMPLETE line system
