Panasonic AQV21❍S Series Solid State Relay, 500 mA Load, 60 V Load, 5V Control
- RS stock no.:
- 217-2652
- Mfr. Part No.:
- AQV212S
- Manufacturer:
- Panasonic

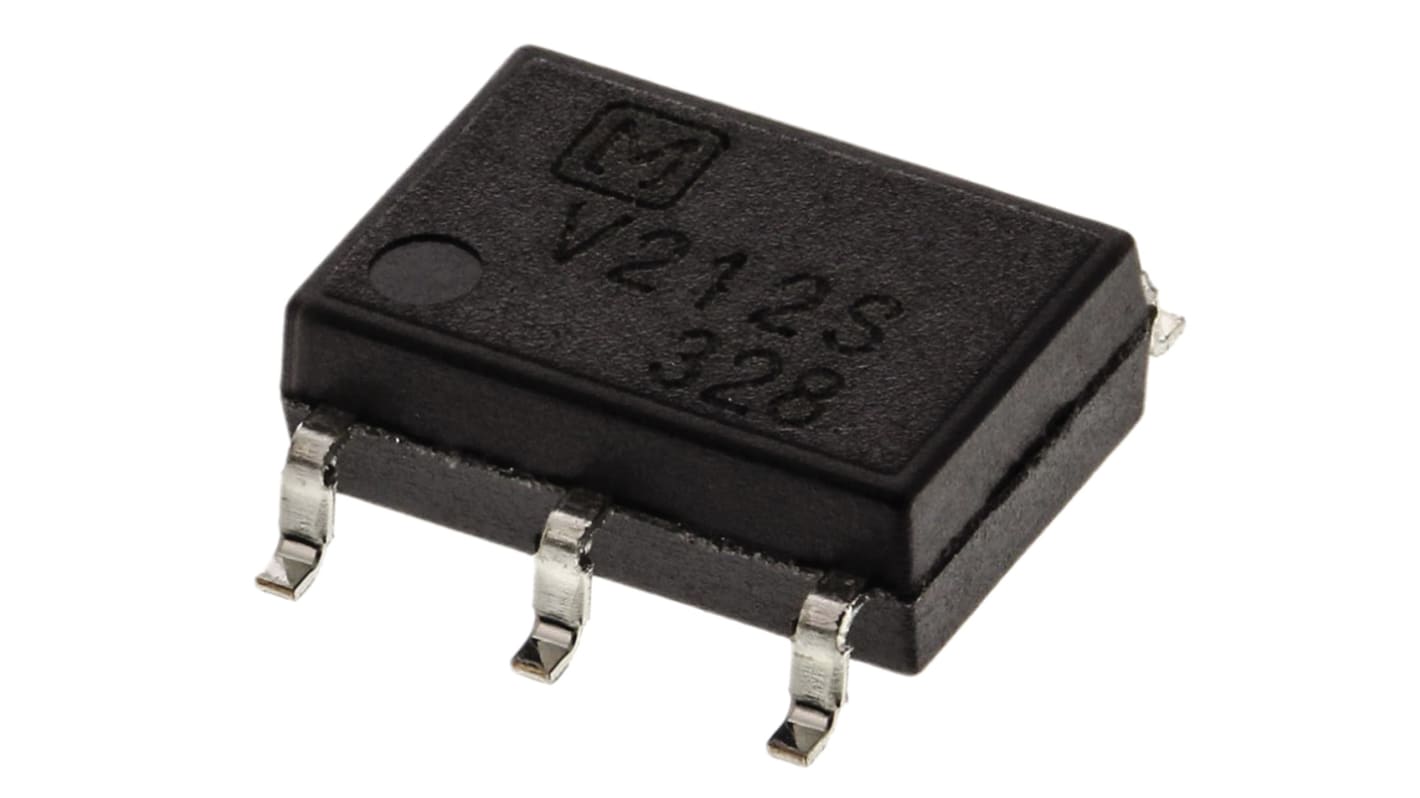

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 64,31
(exc. VAT)
R 73,96
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 34 unit(s) ready to ship from another location
- Plus 144 unit(s) shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | R 64.31 |
| 10 - 24 | R 62.70 |
| 25 + | R 60.82 |
*price indicative
- RS stock no.:
- 217-2652
- Mfr. Part No.:
- AQV212S
- Manufacturer:
- Panasonic
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 500mA | |
| Maximum Load Voltage | 60V | |
| Minimum Control Voltage | 1.5V | |
| Maximum Control Voltage | 5V | |
| Series | AQV21❍S | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPNO | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | SOP-6 | |
| Length | 6.3mm | |
| Standards/Approvals | RoHS | |
| Width | 4.4 mm | |
| Height | 2.1mm | |
| Off State Leakage Current | 1μA | |
| Capacitance | 1.5pF | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Solid State Relay | ||
Maximum Load Current 500mA | ||
Maximum Load Voltage 60V | ||
Minimum Control Voltage 1.5V | ||
Maximum Control Voltage 5V | ||
Series AQV21❍S | ||
Terminal Type Through Hole | ||
Contact Configuration SPNO | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Package Type SOP-6 | ||
Length 6.3mm | ||
Standards/Approvals RoHS | ||
Width 4.4 mm | ||
Height 2.1mm | ||
Off State Leakage Current 1μA | ||
Capacitance 1.5pF | ||
- COO (Country of Origin):
- JP
AQV212S solid state relay
Optoelectronic photoMOS relay with MOSFET output stage in surface-mounted casing.
Applications: telephone and measuring equipment, high-speed communication systems and industrial robots.
Approvals
UL, CSA, TÜV
