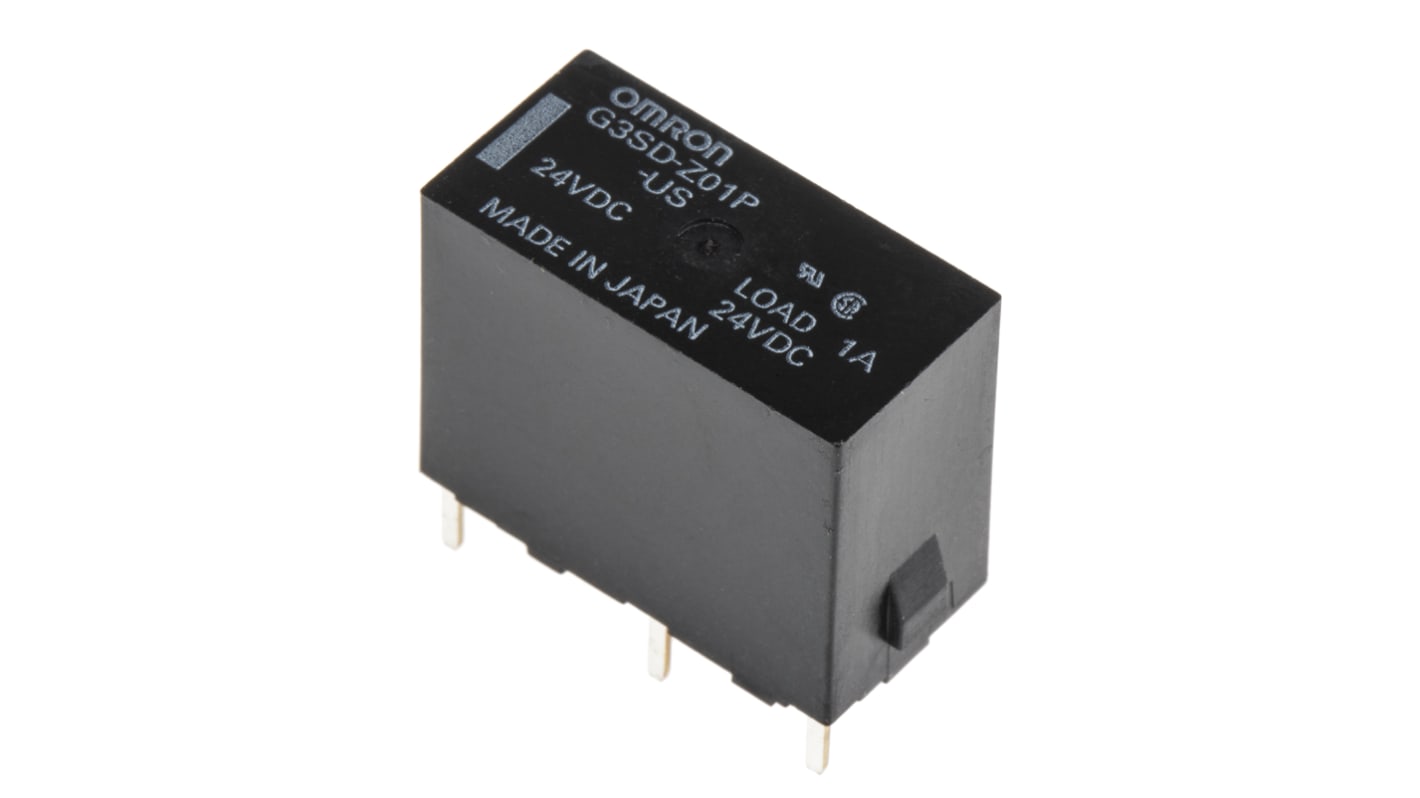

Omron G3SD Series Solid State Relay, 1.1 A Load, PCB Mount, 26 V Load, 28.8 V Control

Ultra-small, dual in-line package (DIP) SSR
High isolation of 2500 Vac between input and output freeing inputs from noise surge generated in the load
Built-in varistor absorbs external surges
Uses same socket as the G6B series, see stk no 655-4682 for PCB socket

UL, CSA

This solid state relay is suitable for reliable electronic switching applications and is designed for PCB mounting. It has a compact form factor of 20x10x16.5mm and operates within a control voltage range of 19.2 to 28.8V DC. With a maximum load current of 1.1A, it meets the demands of various industrial automation tasks while providing an isolation level of 2,500VAC between input and output.

• Space-saving design optimises applications
• High load current capacity improves performance in critical operations
• Built-in surge protection enhances system reliability
• Capable of high-temperature operation increases durability
• Fast switching time of 1ms improves system efficiency
• RoHS compliant for environmentally friendly usage

• Suitable for use in industrial automation systems
• Use in temperature control devices
• Can be used in security and alarm systems
• Ideal for relay control solutions

Yes, it functions effectively from -30 °C to +80 °C.

It supports a maximum load current of 1.1 A reliably.

It is designed for DC load switching.

Yes, close mounting is possible with dedicated heat sinks.
