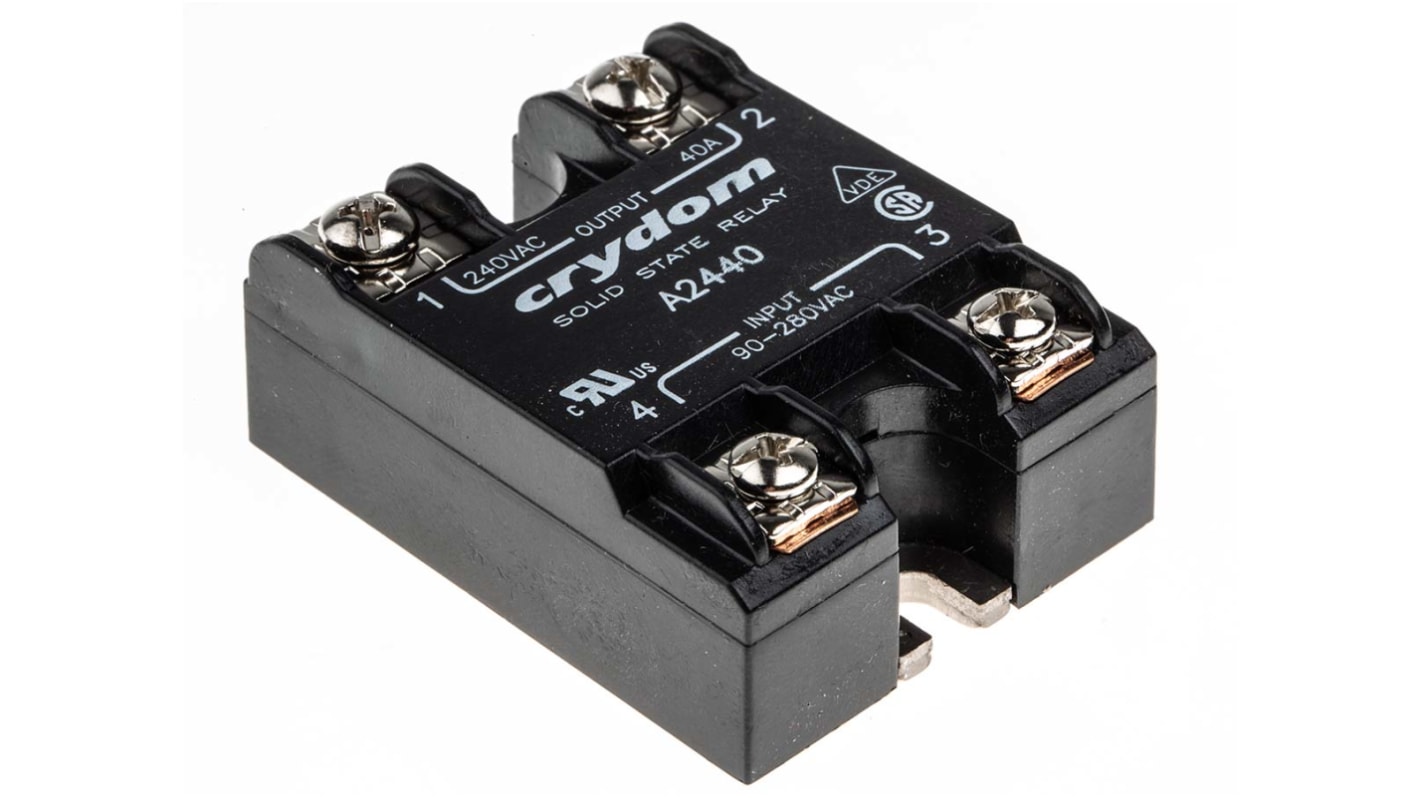

Sensata Crydom Series 1 Series Solid State Relay, 40 A rms Load, Surface Mount, 280 V rms Load, 280 V rms Control

Create a reliable switch in your industrial circuit with this solid-state relay from Sensata | Crydom. It uses an electrical rather than mechanical switching method to minimise wear for long-term performance. This device uses an SCR output to ensure the efficient conversion of heavy AC loads. A wide operating temperature range between -40°C and +80°C means it's suitable for use in demanding environments. You'll commonly find an SSR like this one used in lighting, heating and motion control applications.

• Compact dimensions of 57.3 (H) x 44.5 (W) x 23.3mm (D) for installation in areas where space is limited
• Labelled inputs and outputs to reduce the risk of connection errors
• Mounting holes on the housing for a simple and secure attachment to surfaces
• Control voltage range between 90 and 280V AC for use in low-voltage applications
• Terminals accept solid and stranded wires for versatility

Yes. You can attach a clear cover (789-8475) to the SSR for improved electrical and fire safety.

UL; CSA; VDE

Crydom Solid State Relay and Accessories
