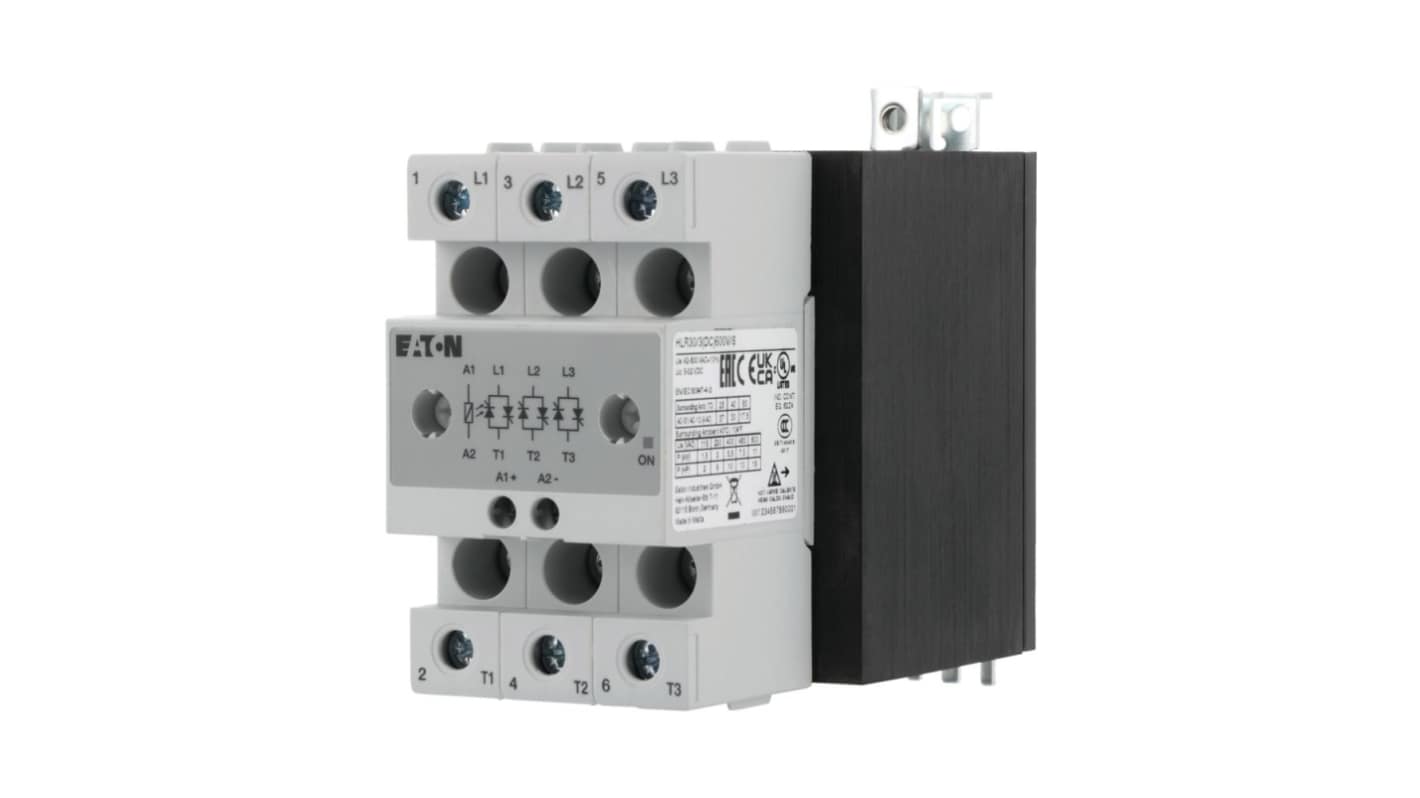

Eaton HLR Series Solid State Relay, 30 A Load, Chassis Mount, 660 V ac Load, 32V dc Control
- RS stock no.:
- 261-570
- Mfr. Part No.:
- 360048 HLR30/3(DC)600V/S
- Manufacturer:
- Eaton
Subtotal (1 unit)*
R 5 747,10
(exc. VAT)
R 6 609,16
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 5,747.10 |
*price indicative
- RS stock no.:
- 261-570
- Mfr. Part No.:
- 360048 HLR30/3(DC)600V/S
- Manufacturer:
- Eaton
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Maximum Load Current | 30A | |
| Product Type | Solid State Relay | |
| Mount Type | Chassis | |
| Maximum Load Voltage | 660V ac | |
| Minimum Load Voltage | 42V ac | |
| Minimum Control Voltage | 5V dc | |
| Maximum Control Voltage | 32V dc | |
| Series | HLR | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Switching Function | Switching at zero-crossing | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 110mm | |
| Width | 72 mm | |
| Standards/Approvals | UL Report Applies to both US and Canada, UL-File No. E251034, RoHS, EAC, CE UL 508, CE, CCC | |
| Length | 126mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Maximum Load Current 30A | ||
Product Type Solid State Relay | ||
Mount Type Chassis | ||
Maximum Load Voltage 660V ac | ||
Minimum Load Voltage 42V ac | ||
Minimum Control Voltage 5V dc | ||
Maximum Control Voltage 32V dc | ||
Series HLR | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Switching Function Switching at zero-crossing | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Height 110mm | ||
Width 72 mm | ||
Standards/Approvals UL Report Applies to both US and Canada, UL-File No. E251034, RoHS, EAC, CE UL 508, CE, CCC | ||
Length 126mm | ||
Exempt
- COO (Country of Origin):
- MT
The Eaton solid-state relay is designed to deliver superior performance for various industrial applications. Utilising advanced technology, it operates seamlessly across three phases, handling up to 30 A with exceptional efficiency and reliability. The relay is engineered to work within a wide voltage range, accommodating between 42 and 660 V DC, while offering high fuse protection to safeguard your systems. Ideal for environments demanding robust performance, this product features a modular design with easy screw connection for swift installation. Its compact dimensions permit easy integration into existing setups, ensuring that both space and operational efficacy are optimised. With stringent compliance to international safety standards, it confidently meets the challenges posed by electromagnetic interference and harsh operating conditions.
High fuse protection enhances operational safety
Modular design offers flexibility for various installations
Screw connection simplifies wiring and reduces installation time
Compact form factor facilitates easy integration into tight spaces
Designed to withstand a wide range of environmental conditions
Exceptional reliability enhances the longevity of your system
Built to comply with stringent international safety regulations
Low electromagnetic interference ensures minimal disruption to other devices
Robust construction provides durability in demanding applications
Efficient heat dissipation contributes to enhanced performance
